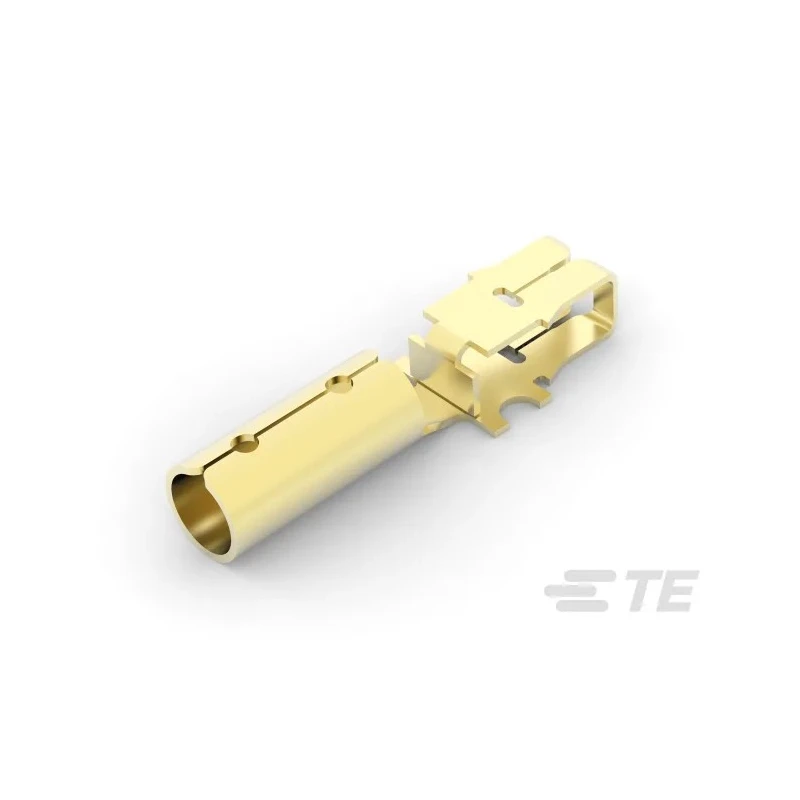

TE Connectivity MAG-MATE Uninsulated Tin-Plated Magnet Wire Terminal 27 AWG 1740417-1

TE Connectivity 1740417-1 MAG-MATE uninsulated magnet Wire Terminal is engineered for precision electrical connections, supporting wire sizes from 30 AWG to 27 AWG. Featuring a 3.18 mm diameter mating pin and a 19 mm overall length, this terminal is constructed from high-quality phosphor bronze with tin plating, which enhances corrosion resistance and conductivity.

This pin type terminal is ideal for use in various industrial and electronic applications, including manufacturing, assembly, and repair of electrical components. Its uninsulated design makes it suitable for compact connections where insulation is provided externally or by other means.

Compliant with RoHS standards, the product ensures safe and environmentally friendly use. The terminal's dimensions and plating material provide durability and excellent mechanical performance required in demanding environments.

The MAG-MATE series terminals are widely used in electrical, industrial automation, and power connector assemblies, providing reliable splicing and terminal connections for magnet wire cables.

The terminal offers a 3.18 mm mating pin diameter for consistent and secure pin connections. Supports wire sizes from 30 AWG minimum to 27 AWG maximum, accommodating various gauges. The uninsulated construction facilitates direct metal-to-metal contact, enhancing electrical conductivity.

Application in electronic components and power connector assemblies ensures wide industrial use. Phosphor bronze base with tin plating provides excellent corrosion resistance and solderability. Compact dimensions - 19 mm overall length with a 7.6 mm terminal height optimize space utilization.

Meets environmental compliance standards (RoHS), suitable for global markets.

This product is an ideal solution for professional electrical assembly and manufacturing environments, where dependable electrical terminations are required. Explore additional TE Connectivity splice connectors and terminals within the EnvMart catalog for complementary solutions.
