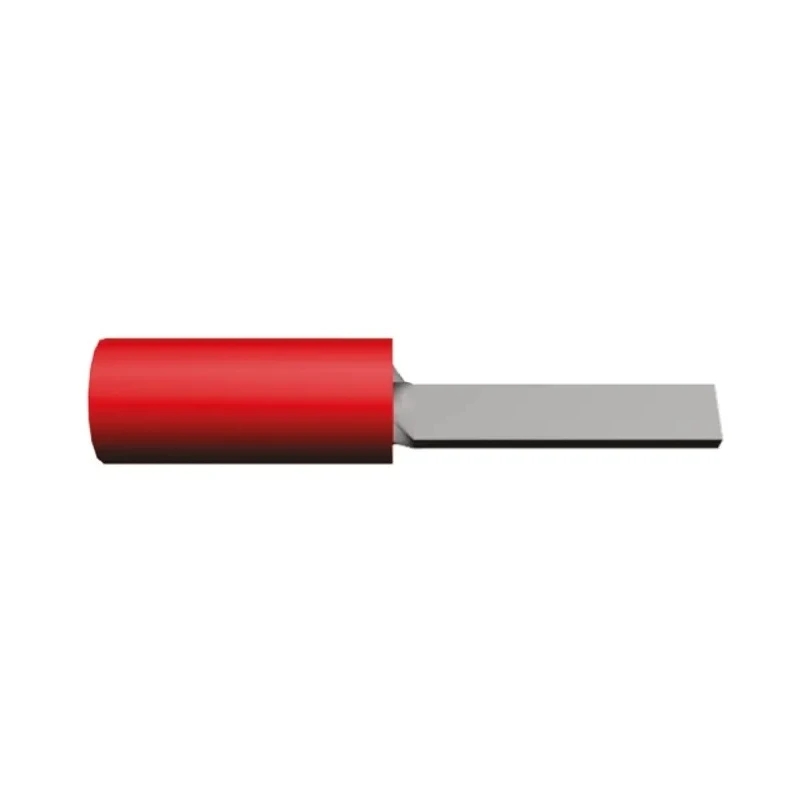

TE Connectivity PIDG Insulated Crimp Blade Terminal Red 12 mm Blade Length, 22 AWG to 16 AWG 150730

TE Connectivity 150730 PIDG insulated crimp blade terminal is engineered for reliable wire termination in electronic and electrical applications. This blade terminal supports wire sizes ranging from 22 AWG to 16 AWG and features a precise 12 mm blade length ensuring consistent contact.

The contact material is copper with tin plating, enhancing corrosion resistance and electrical conductivity. The terminal's metal barrel contains serrations that provide maximum contact and tensile strength after crimping.

The insulation sleeve is made from robust red nylon, providing electrical insulation and color coding for easy identification. The terminal’s overall length is 28.57 mm with a blade width of 2.39 mm and blade thickness of 0.84 mm, designed for secure and standard fitting.

This product is not designed for use with double wires, ensuring safety and compliance with electrical standards. These terminals are widely used in applications including industrial, construction, and manufacturing environments where durable and reliable wire connections are required.

The TE Connectivity PIDG series delivers consistent quality and performance in wire terminal applications, supporting effective and efficient electrical connections. Constructed with copper contact material providing excellent conductivity.

Blade dimensions include 12 mm length, 2.39 mm width, and 0.84 mm thickness. Insulation made of durable red nylon ensuring safety and insulation quality. Suitable for electrical and electronic wire termination applications.

Precision metal wire barrel with serrations for maximum contact and tensile strength. Tin-plated contact for corrosion resistance and reliable performance. Overall terminal length is 28.57 mm for standard installation fitting.

Not suitable for use with double wires. Discover more quality Wire Terminals at EnvMart for your electronic and electrical component needs.
