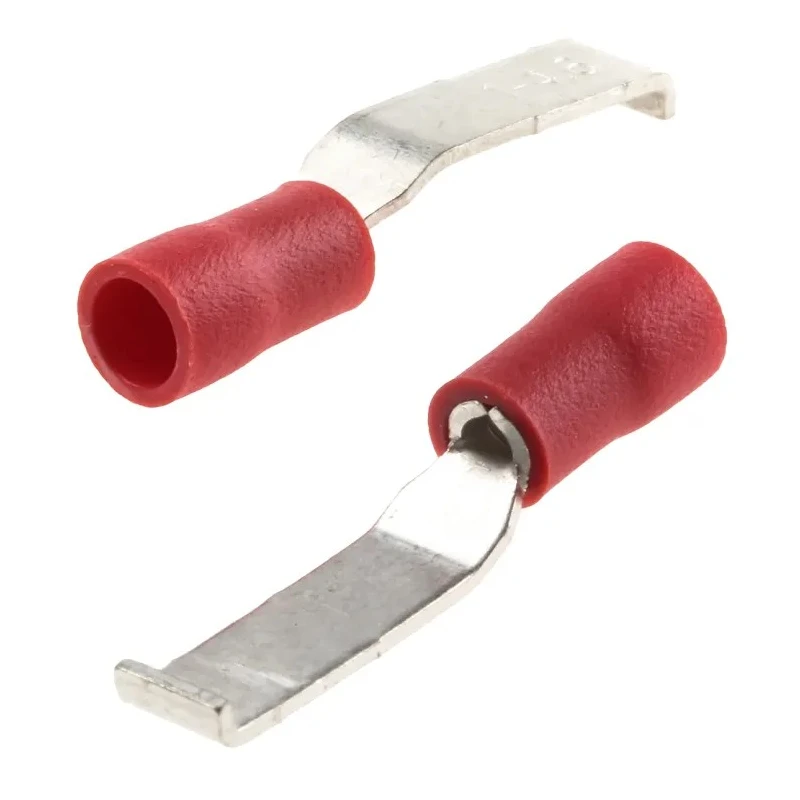

RS PRO Hooked Insulated Crimp Blade Terminal 16.8 mm Blade Length, 22 AWG to 16 AWG, Red 624-1207

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Hooked Insulated Crimp Blade Terminal 16.8 mm Blade Length, 22 AWG to 16 AWG, Red 624-1207

Name: RS PRO Hooked Insulated Crimp Blade Terminal 16.8 mm Blade Length, 22 AWG to 16 AWG, Red 624-1207
Brand: RS PRO
SKU: 200297
Price: 0.11 USD
Availability: InStock



Category Wire Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Model	624-1207
Gender	Male
Insulation	Insulated
Overall Length	27.2mm
Contact Material	Copper
Blade Length	16.8mm
Insulation Material	Vinyl
Inside Diameter	4mm
Blade Width	4.6mm
Blade Thickness	0.75mm
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Shrouded	Unshrouded

Key Features

The terminal features a hooked blade for secure connections.
Constructed with copper contacts plated with tin for reliable conductivity.
Insulated with durable red vinyl to protect against vibration and environmental factors.
Measures 27.2 mm in overall length with a blade width of 4.6 mm and thickness of 0.75 mm.
Designed for use with wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG).
Unshrouded, male gender terminal type for versatile applications.
Provides a strong, solder-free, crimped connection ensuring safety and performance.
Manufactured in Taiwan, Province Of China, ensuring quality control.

Product Description

RS PRO 624-1207 hooked insulated crimp blade terminal is engineered for secure electrical wire termination with a 16.8 mm hooked blade length. It supports wire sizes from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²), making it suitable for a broad range of electronic and electrical applications.

The terminal incorporates a strong copper contact with tin plating to enhance conductivity and corrosion resistance. The red vinyl insulation provides a protective layer against vibration and mechanical stress during operation, ensuring long-lasting performance.

This crimp blade terminal has an overall length of 27.2 mm, blade width measuring 4.6 mm, blade thickness of 0.75 mm, and inside diameter of 4 mm. Its male gender configuration and unshrouded design make it easy to install in tight spaces without compromising connection security.

The hooked blade design improves terminal retention, reducing the risk of accidental disconnection. Manufactured with precision in Taiwan, Province Of China, this component meets demanding industrial standards for reliability and safety.

The terminal is insulated with red vinyl for easy identification and vibration protection. Copper contact construction with tin plating promotes excellent electrical conductivity. Designed to crimp securely on wires from 0.5 mm² to 1.5 mm².

The 16.8 mm hooked blade ensures firm attachment for robust electrical connections. Unshrouded male design allows for flexible application in various connector assemblies. Ideal for industrial, electronic manufacturing, and electrical maintenance applications requiring dependable Wire Terminals.

Ensures solder-free assembly and strong mechanical connection. Explore the full range of RS PRO crimp terminals and blade terminals on EnvMart for quality and reliability in your electronic component needs.
