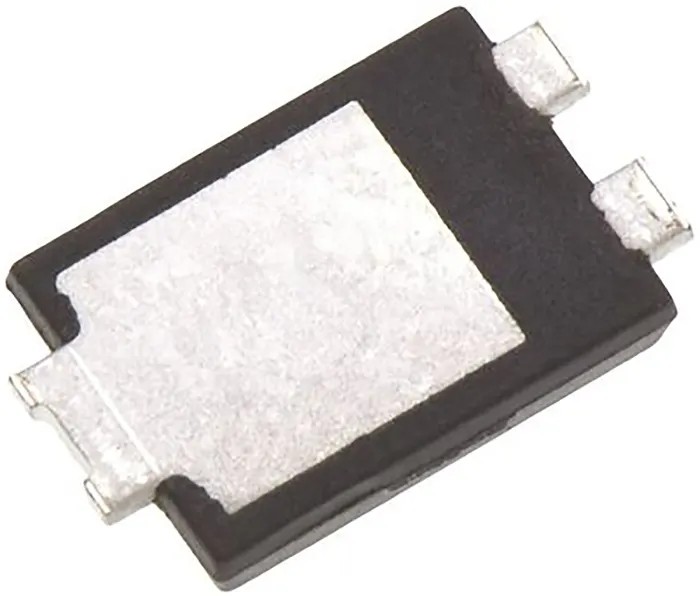

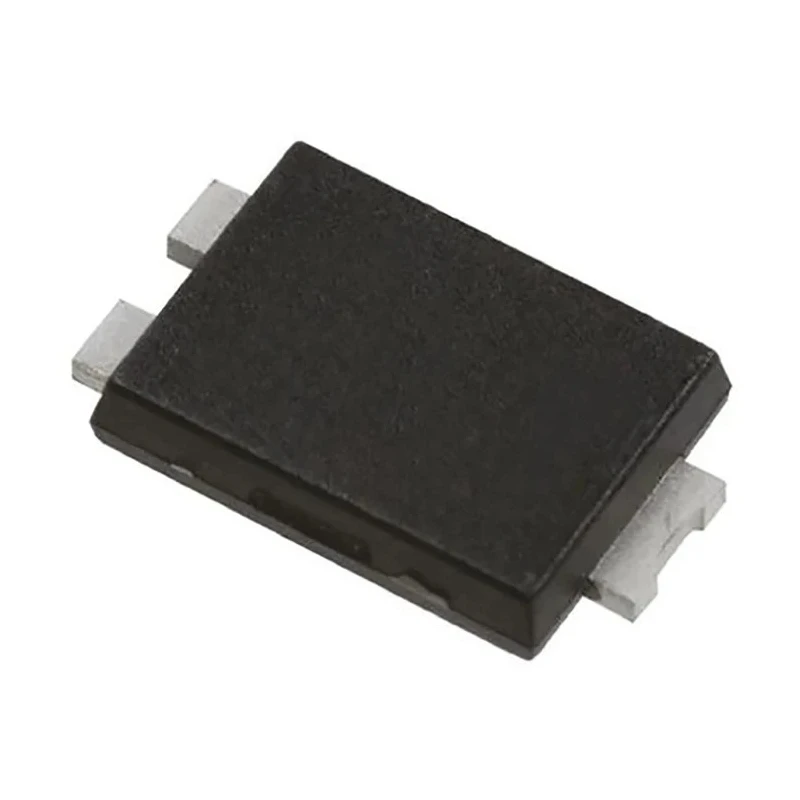

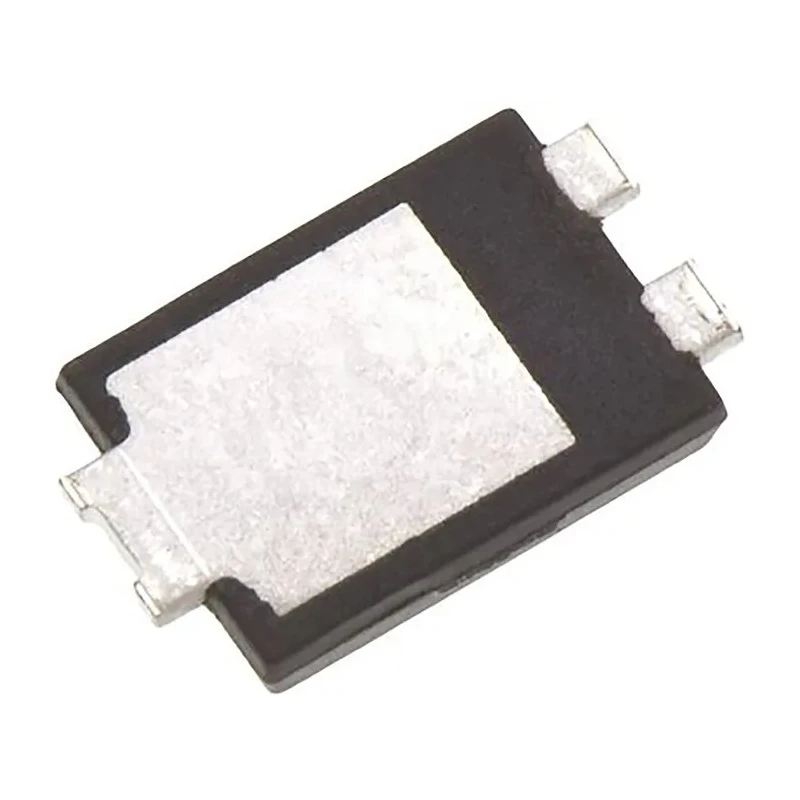

DiodesZetex Schottky Barrier Diode, 20V 8A, Surface Mount, PowerDI5 Package, 3-Pin, SBR8E20P5-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 5.45mm |
| Model | SBR8E20P5-7 |
| Width | 4.05mm |
| Mount Type | Surface |
| Series | 8A SBR |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Barrier |
| Peak Reverse Current Ir | 75mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 450mV |
Key Features
- Rated for a maximum continuous forward current of 8A and a peak repetitive reverse voltage of 20V.
- PowerDI5 compact package with 3 pin configuration allows for streamlined PCB integration.
- Features a low forward voltage drop of 450mV and high surge capability up to 180A.
- Designed for high temperature operation up to 150°C, suitable for demanding environments.
- Surface mount design enables automated assembly and increased production efficiency.
- Ideal for use in switch-mode power supplies, battery protection, and polarity protection circuits.
Product Description
The DiodesZetex SBR8E20P5-7 Schottky Barrier Diode provides robust rectification capabilities for power electronic circuits, combining a low forward voltage drop and high surge current handling in a compact PowerDI5 package. With an 8A maximum continuous forward current and 20V peak repetitive reverse voltage, this diode is engineered for reliable high-frequency operation and efficient power management.
Its surface mount PowerDI5 form factor with three pins is optimized for automated PCB assembly, reducing footprint without compromising electrical or thermal performance. The low typical forward voltage of 450mV aids in improving energy efficiency, while the peak non-repetitive forward surge current of 180A allows it to withstand transient overload conditions.
Rated at 8A continuous forward current, 20V peak repetitive reverse voltage, and 75mA peak reverse current. Maximum operating temperature up to 150°C and minimum of -55°C for wide application suitability. Surface mount PowerDI5 package with 3 pins ensures stable connection and simplified mounting.
Low profile - 1.1mm height, 5.45mm length, and 4.05mm width - supports high-density designs. Barrier rectifier delivers fast switching ideal for power supplies, chargers, and automotive modules. Withstands 180A peak surge, delivering durability in demanding operating conditions.
Commonly deployed in industries such as power electronics, battery management, automotive ECUs, telecommunication equipment, and switch-mode power supplies, its design supports high reliability and efficient assembly lines by arriving packaged and ready for use. Suitable applications include freewheeling, polarity protection, and synchronous rectification in both consumer and industrial electronics.
For more Schottky diodes and rectifiers, explore the extensive range of industrial and electronic components in EnvMart's Semiconductor category.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8A.
The peak repetitive reverse voltage rating is 20V.
The maximum forward voltage drop is 450mV.
It can handle a peak non-repetitive forward surge current of 180A.
The dimensions of the PowerDI5 package are 1.1mm in height, 5.45mm in length, and 4.05mm in width.
The operating temperature range is from -55°C to 150°C.
This model has a 3-pin configuration.
It uses a surface mount design.
This diode is suitable for applications such as switch-mode power supplies, battery protection, and polarity protection circuits.
The peak reverse current is rated at 75mA.
It has an FBI standard approval.
It is a barrier rectifier type.
