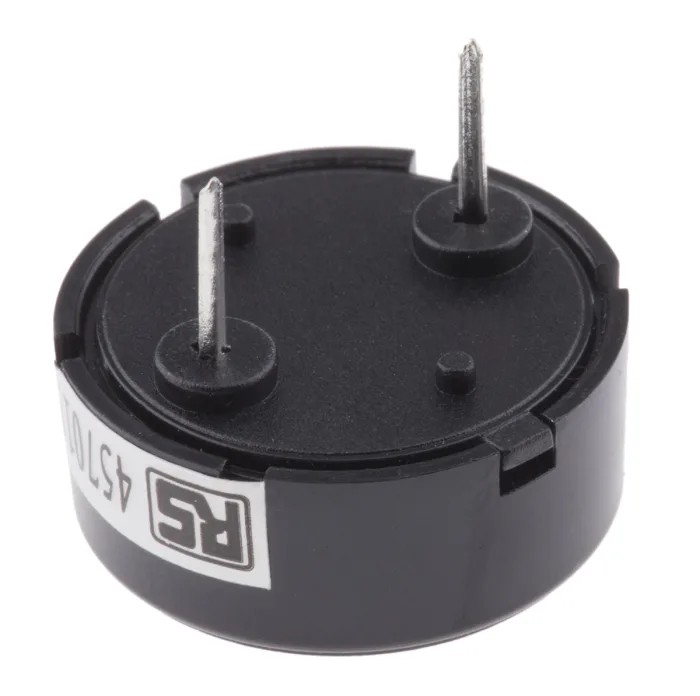

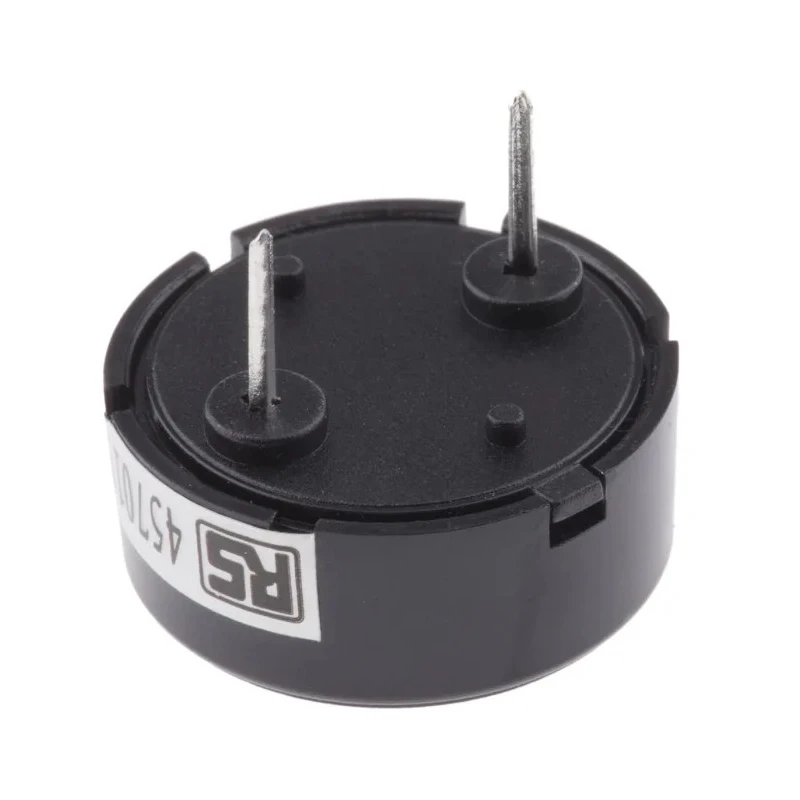

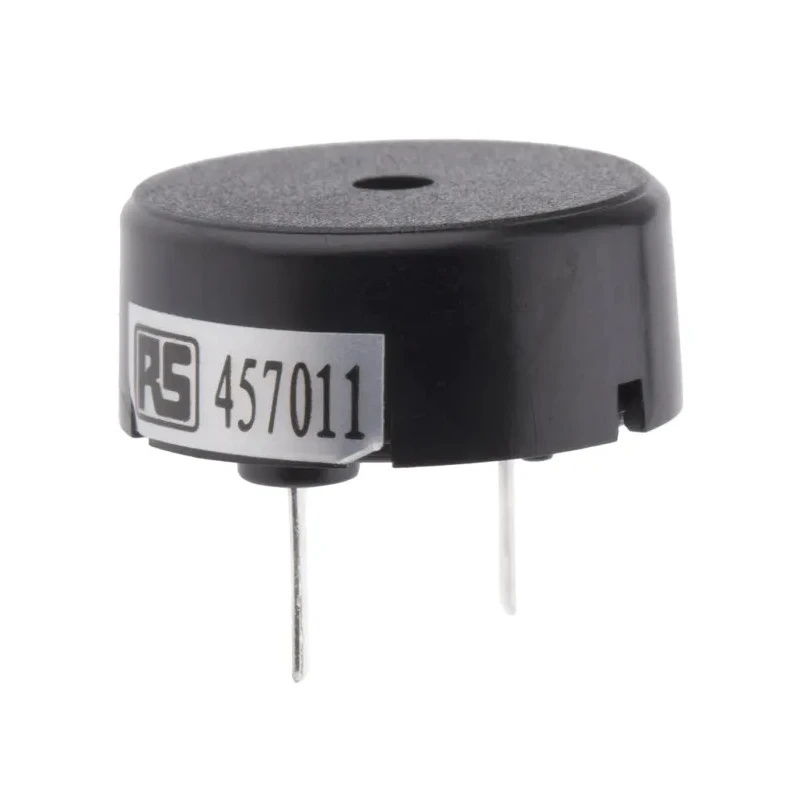

RS PRO Through Hole Continuous External 7 mm Piezo Buzzer Component 1 V ac Min 30V ac Max 78 dB 457-011
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 17mm |
| Brand | RS PRO |
| Sound Level | 78dB |
| Height | 7mm |
| Model | 457-011 |
| Drive Type | External |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Capacitance | 15nF |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 4.5kHz |
| Maximum Supply Voltage | 30V ac |
| Minimum Supply Voltage | 1V ac |
| Supply Current | 1mA |
| Tone Type | Continuous |
| Minimum Frequency | 3500Hz |
Key Features
- This piezo buzzer is designed for through hole PCB mounting providing reliable mechanical fit.
- Operating voltage ranges from minimum 1 V ac to maximum 30 V ac ensuring flexibility.
- The buzzer emits a continuous tone with an external drive at frequencies between 3500 Hz and 4500 Hz.
- Its compact size features a diameter of 17 mm and a height of 7 mm for space-constrained designs.
- Capacitance of 15 nF and supply current of 1 mA facilitate low power consumption.
- It operates reliably between -20°C and 70°C ambient temperature for diverse environments.
- This model complies with RoHS standards ensuring environmental safety.
Product Description
RS PRO 457-011 is a high-performance Piezo Buzzer Component engineered for through hole PCB mounting applications in electronics and electrical devices. It is optimized for external drive and continuous tone generation, delivering a loud sound level of 78 dB within a compact round casing measuring 17 mm in diameter and 7 mm in height.
The buzzer operates effectively across a supply voltage range of 1 V ac minimum to 30 V ac maximum, supporting operation frequencies from 3500 Hz to 4500 Hz, making it suitable for various signaling and alerting applications in industrial, commercial, and consumer electronics.
The component draws a low supply current of 1 mA with a capacitance of 15 nF, ensuring energy efficiency. Its operating temperature range from -20°C to 70°C allows installation in moderately harsh environments without degradation in performance.
Manufactured in China, this piezo buzzer meets RoHS compliance, guaranteeing that it is free of hazardous substances, making it safe for use in environmentally conscious designs. This piezo buzzer is designed for through hole PCB mounting providing reliable mechanical fit.
Operating voltage ranges from minimum 1 V ac to maximum 30 V ac ensuring flexibility. The buzzer emits a continuous tone with an external drive at frequencies between 3500 Hz and 4500 Hz. Its compact size features a diameter of 17 mm and a height of 7 mm for space-constrained designs.
Capacitance of 15 nF and supply current of 1 mA facilitate low power consumption. It operates reliably between -20°C and 70°C ambient temperature for diverse environments. This model complies with RoHS standards ensuring environmental safety.
This RS PRO piezo buzzer is ideal for use in electronic equipment including alarms, timers, and notification devices across industrial, laboratory, and commercial applications. Browse more piezo buzzers and related electronic components on EnvMart to meet your electronic signal and sound output needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is from a minimum of 1 V ac to a maximum of 30 V ac.
This piezo buzzer emits a sound level of 78 dB.
The buzzer has a diameter of 17 mm and a height of 7 mm, making it compact for space-constrained designs.
It operates at frequencies between 3500 Hz and 4500 Hz, suitable for continuous tone generation.
The supply current required for this piezo buzzer is 1 mA, ensuring low power consumption.
The capacitance of this model is 15 nF.
It operates reliably between -20°C and 70°C, allowing for use in diverse environments.
This model uses an external drive type for its operation.
The buzzer is designed for through hole PCB mounting, ensuring a reliable mechanical fit.
Yes, this model complies with RoHS standards, ensuring it is free from hazardous substances.
This piezo buzzer is suitable for applications including alarms, timers, and notification devices across industrial, laboratory, and commercial settings.
This model is manufactured in China.
