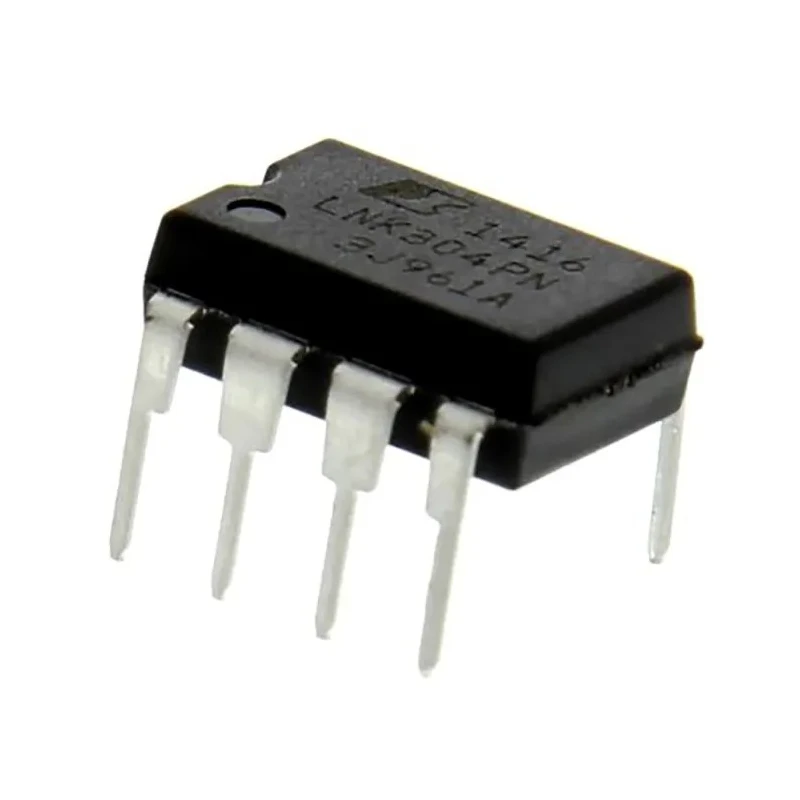

Power Integrations Buck Converter Through Hole 12V Output Voltage 170mA Output Current LNK304PN

Free Delivery in India | Lowest Global Shipping Charges

Power Integrations Buck Converter Through Hole 12V Output Voltage 170mA Output Current LNK304PN

Name: Power Integrations Buck Converter Through Hole 12V Output Voltage 170mA Output Current LNK304PN
Brand: Power Integrations
SKU: 214131
Price: 2.33 USD
Availability: InStock



Category Converter Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Efficiency	75%
Length	9.83mm
Model	LNK304PN
Depth	6.6mm
Width	3.68mm
Mount Type	Through Hole
Series	LNK304
Output Current	170mA
Maximum Operating Temperature	150°C
Package Type	DIP-B
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	265V ac
Standards/Approvals	JEDEC, RoHS
Minimum Input Voltage	85V ac
Number of Pins	7
Output Voltage 1	12V
Output Voltage 2	700V

Key Features

This buck converter supports a maximum input voltage of 265V AC and minimum input voltage of 85V AC.
It features a 75% efficiency and operates within a temperature range of -40°C to 150°C.
The device integrates a 700V power MOSFET for high voltage operation.
Designed for use in buck, buck-boost, and flyback topologies with excellent line and load regulation.
The product measures 9.83mm in length, 6.6mm in depth, and 3.68mm in width with 7 pins.
It includes built-in current limit and thermal shutdown for robust protection.
Complies with JEDEC and RoHS standards ensuring quality and environmental safety.

Product Description

Power Integrations LNK304PN Buck Converter is a high-performance DC/DC converter designed for efficient power regulation with a 12V output voltage and 170mA output current. Packaged in a through-hole DIP-B form factor with 7 pins, this device integrates a 700V power MOSFET, oscillator, on/off control scheme, and current limit protections on a monolithic IC.

The converter supports input voltage ranges from 85V AC minimum to 265V AC maximum, making it suitable for a wide range of power supply applications. It achieves 75% efficiency while operating reliably in temperature conditions from -40°C up to 150°C.

Featuring excellent line and load regulation, the LNK304PN supports multiple topologies including buck, buck-boost, and flyback, allowing flexible integration into various industrial, laboratory, manufacturing, and electronic applications.

Built-in protections include cycle-by-cycle current limiting, thermal shutdown, and frequency jittering to enhance reliability and reduce electromagnetic interference. This makes it ideal for replacing less efficient linear or capacitor-fed power supplies with superior energy performance and system cost benefits.

The compact physical dimensions of 9.83mm length, 6.6mm depth, and 3.68mm width provide ease of installation in constrained PCB layouts while adhering to JEDEC and RoHS compliance standards for quality and environmental safety.

Supports input voltage from 85V AC to 265V AC. Outputs 12V at 170mA with 75% efficiency. Integrated 700V MOSFET and protection features. Suitable for buck, buck-boost, and flyback topologies. Operating temperature range of -40°C to 150°C.

Package type DIP-B with 7 pins. JEDEC and RoHS standards certified.

This buck converter is ideal for power supply design in industrial, electronic component manufacturing, power management IC development, and various commercial and laboratory applications. Explore more Power Integrations products and Converters on EnvMart.
