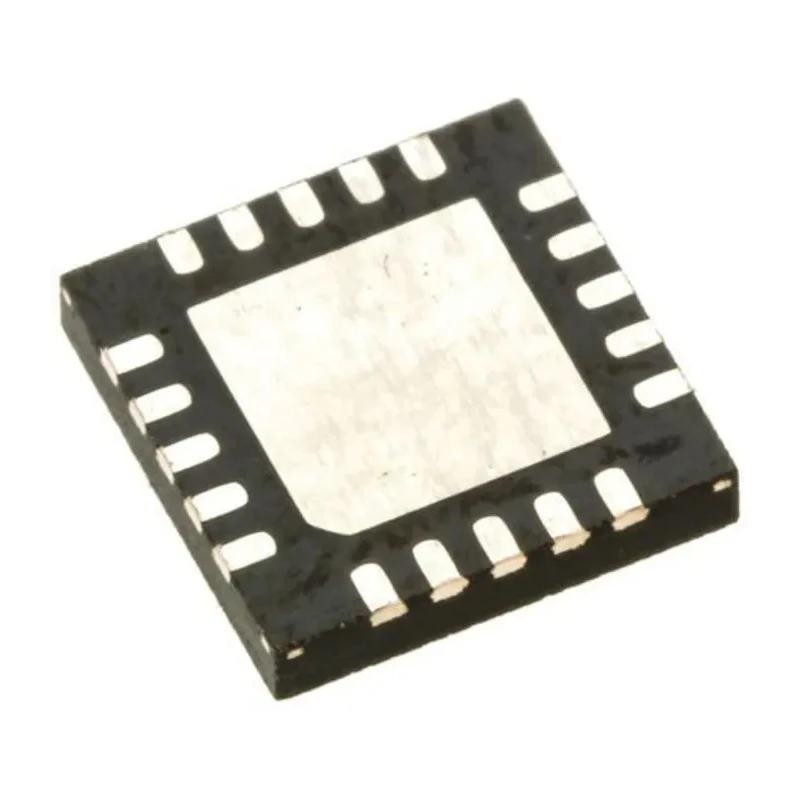

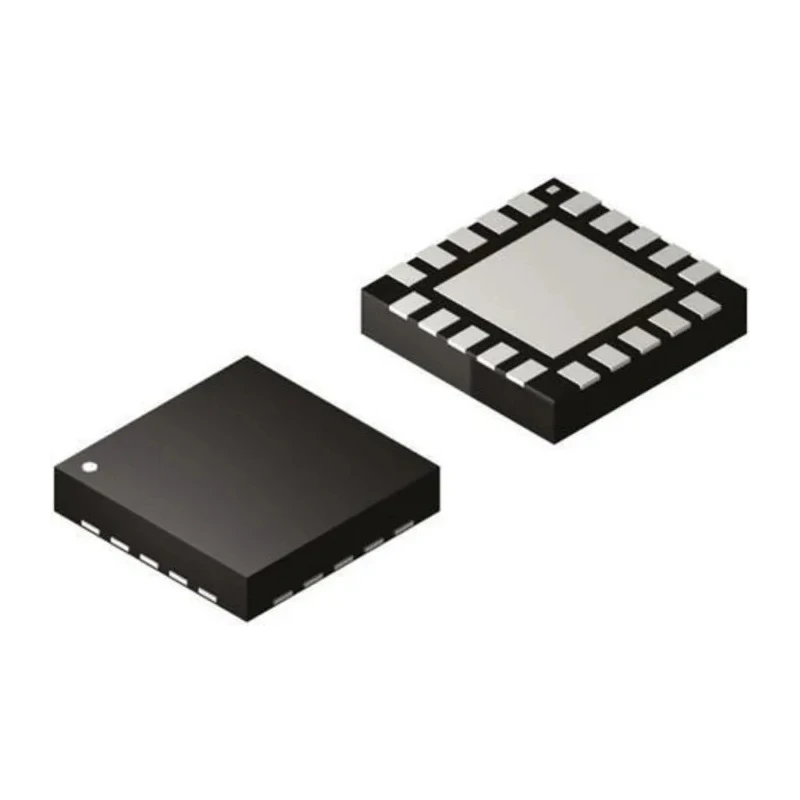

Renesas Electronics 1-Channel Buck Boost Switching Regulator 3.3V 2.75 MHz 2 A, TQFN 20-Pin ISL91107IRTNZ-T7A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Renesas Electronics |
| Height | 750μm |
| Length | 4mm |
| Model | ISL91107IRTNZ-T7A |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL91107IR |
| Output Current | 2A |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFN |
| Load Regulation | ±0.4 mV/mA |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Buck Boost Switching |
| Switching Frequency | 2.75MHz |
| Number of outputs | 1 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 3.3V |
| Quiescent Current | 45μA |
| Line Regulation | ±12.5 mV/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 1.8V |
| Pin Count | 20 |
Key Features
- Supports a fixed output voltage of 3.3V for stable power delivery.
- Operates at a switching frequency of 2.75 MHz for compact and efficient design.
- Handles output current up to 2 A suitable for moderate power applications.
- Features a surface mount TQFN 20-pin package with dimensions 4mm x 3mm x 750μm.
- Includes a low quiescent current of 45μA to minimize power losses during idle.
- Wide input voltage range from 1.8V to 5.5V accommodates diverse power sources.
- Line regulation of ±12.5 mV/V ensures consistent output despite input variation.
- Load regulation of ±0.4 mV/mA maintains output stability under load changes.
Product Description
Renesas Electronics ISL91107IRTNZ-T7A is a high-performance 1-Channel Buck Boost Switching Regulator designed to provide a fixed 3.3V output voltage at up to 2 A output current. It operates at a high switching frequency of 2.75 MHz, enabling efficient power conversion with a small footprint.
This regulator uses a surface mount TQFN package comprising 20 pins, measuring 4mm in length, 3mm in width, and with a height of 750μm. It features a low quiescent current of 45μA, making it suitable for low-power consumption systems. The device supports a wide input voltage range from 1.8V minimum to a maximum of 5.5V, allowing flexible power supply options.
With line regulation of ±12.5 mV/V and load regulation of ±0.4 mV/mA, this regulator ensures excellent output voltage stability despite changes in input voltage or output load. It is engineered to operate over a broad temperature range from -40°C to 85°C, making it reliable for industrial, automotive, and general electronic applications.
The ISL91107IRTNZ-T7A is RoHS compliant, meeting environmental standards for lead-free and hazardous substance-free components. Its 20-pin TQFN package facilitates compact PCB layouts, ideal for modern electronics requiring efficient power management.
Supports fixed 3.3V output voltage for stable power supply. High switching frequency of 2.75 MHz enables compact design. Maximum output current of 2 A for moderate power demands. Surface mount TQFN 20-pin package with compact dimensions.
Low quiescent current conserves energy during low load. Wide input voltage range from 1.8V to 5.5V suits various power inputs. Excellent line and load voltage regulation ensure performance stability. Built for reliability across industrial temperature ranges (-40°C to 85°C).
RoHS compliant for environmental safety and regulatory adherence.
This buck boost switching regulator is ideal for industrial systems, power management in embedded electronics, and other applications where efficient voltage conversion and high current capability are critical.
Explore more high-quality Voltage Regulators and power management ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 3.3V, ensuring stable power delivery for various applications.
The ISL91107IRTNZ-T7A can handle an output current of up to 2 A, making it suitable for moderate power applications.
The regulator supports a wide input voltage range from 1.8V to 5.5V, accommodating various power sources.
The TQFN package measures 4mm in length, 3mm in width, and has a height of 750μm, facilitating compact PCB layouts.
It features line regulation of ±12.5 mV/V and load regulation of ±0.4 mV/mA, ensuring stable output voltage under varying conditions.
The ISL91107IRTNZ-T7A has a low quiescent current of 45μA, minimizing power losses during idle conditions.
It operates reliably over a broad temperature range from -40°C to 85°C, suitable for industrial and automotive applications.
This model features a surface mount design, which is ideal for compact electronic applications.
Yes, it is RoHS compliant, meeting environmental standards for lead-free and hazardous substance-free components.
The ISL91107IRTNZ-T7A is a 1-channel regulator, providing a single output for power management.
