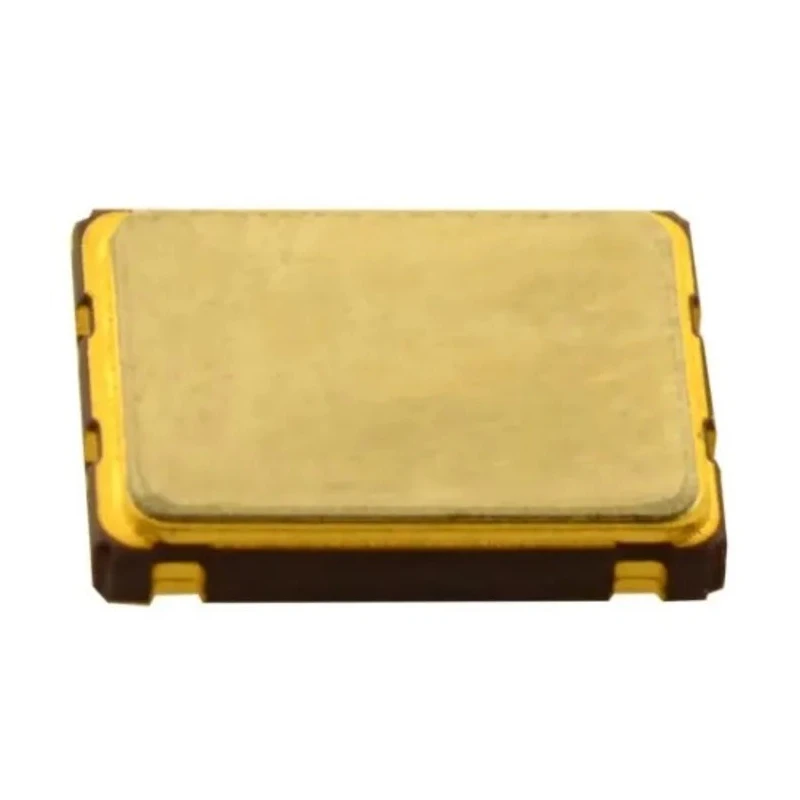

Renesas Electronics 100MHz Clock Oscillator 25 ppm Frequency Stability HCSL LGA Package XFN336100.000000I

Renesas Electronics XFN336100.000000I is a quartz-based clock oscillator designed to deliver precise frequency output of 100MHz with excellent stability of ±25 ppm across a temperature range from -40°C to +85°C, making it suitable for industrial and enterprise-grade equipment.

This oscillator features a High-Speed Current Steering Logic (HCSL) output level, providing a low noise and robust clock signal vital for high-performance electronic systems. The device uses a compact 3.2 x 2.5 mm Land Grid Array (LGA) package, enabling easy surface mount integration for compact PCB designs.

Operating at a supply voltage up to 3.3 V, it ensures low power consumption and compatibility with a wide range of digital systems.

With a maximum phase jitter of 150 femtoseconds, this oscillator offers superior signal timing characteristics essential for precision applications in telecommunications, consumer electronics, industrial automation, and networking equipment.

The product is part of the XF series and does not carry automotive certifications, focusing on general industrial use rather than automotive-specific applications.

The wide operating temperature range and precise frequency stability make it ideal for use in laboratory instruments, manufacturing controls, and communication systems requiring reliable clock signals.

Output frequency is 100 MHz for high-speed clock requirements. Frequency stability is ±25 ppm over a temperature range of -40°C to 85°C. HCSL output level provides low noise signal output. Packaged in a compact LGA form factor suitable for surface mounting.

Operates at a maximum supply voltage of 3.3 V. Maximum phase jitter is 150 femtoseconds ensuring signal integrity. Designed for enterprise-level and industrial applications requiring accurate timing. Non-automotive series XF product without specific standards/approvals.

Temperature range supports harsh environments from -40°C to +85°C. Browse the Electronics Components category at EnvMart for a wide range of Crystal Oscillators and related timing solutions by Renesas Electronics and other trusted brands.
