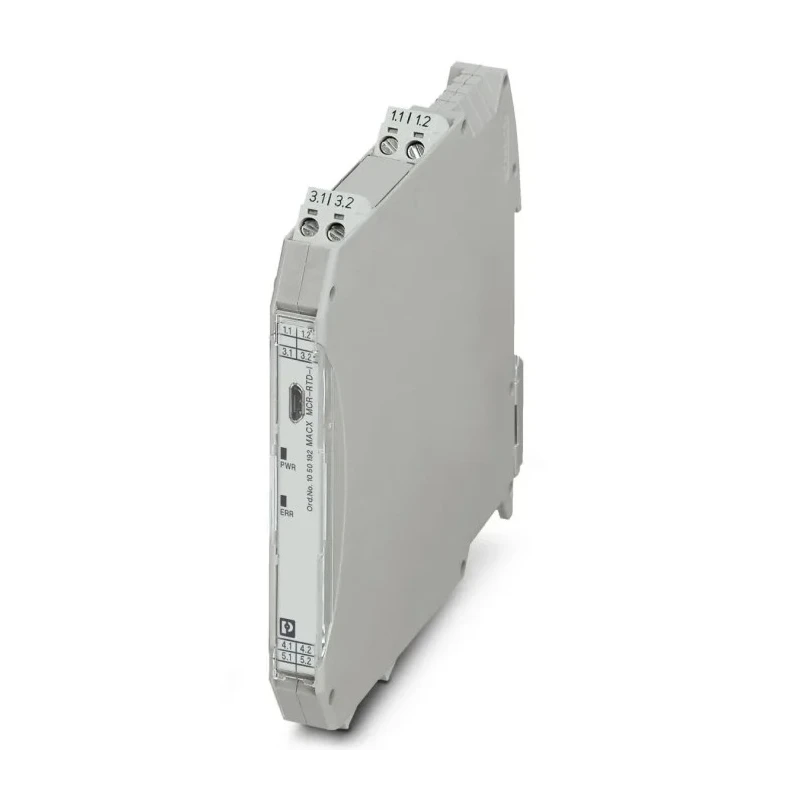

Phoenix Contact MACX MCR Series Temperature Measuring Transducer with Resistance, RTD, Potentiometer Input, Current 1050192

Phoenix Contact 1050192 MACX MCR Series Temperature Measuring Transducer is engineered to convert signals from resistance temperature detectors (RTDs), resistors, and potentiometers into standard analogue current signals ranging from 0 to 20 mA or 4 to 20 mA. This device supports industrial automation applications requiring precise temperature measurement and signal conditioning.

Designed for efficient DIN rail mounting with a compact 12.5 mm width housing, it features screw terminal connections ensuring secure wiring. The transducer offers high transmission accuracy and includes 3-way electrical isolation, reducing interference and enhancing system safety. It operates reliably within temperatures from -40°C minimum to a maximum of 70°C, suitable for harsh industrial environments.

The device complies with multiple industrial standards including EN 61000-6-2, IEC/EN 61010-1, IEC/EN 60079-11, EN 61000-4-3 among others, and carries ATEX hazardous area certification. It supports SIL 2 safety level, making it suitable for safety-critical systems. Configuration is enabled through software tools such as Analogue-CONF or Device Type Manager (DTM), allowing flexible set-up.

Applications include process control, automation systems, HVAC installations, and laboratory instrumentation. It is ideal for converting temperature readings from RTDs or resistance sensors to usable analogue signals for controllers and monitoring systems.

The transducer features status and error indicators to assist in maintenance and operational monitoring, and its power supply is provided via standard 19.2 to 30 V DC inputs through a DIN rail connector.

Input signal types supported: Resistance, RTD, Potentiometer. Output current range options: 0 to 20 mA or 4 to 20 mA. Temperature operating range: -40°C to +70°C. Mounting type: DIN rail with screw terminals. SIL functional safety level: SIL 2.

Protection class: IP20 rated enclosure. 3-way electrical isolation for interference reduction. Compact 12.5 mm housing width suitable for control cabinets. Country of origin: Germany.

This temperature measuring transducer from Phoenix Contact is a dependable solution for demanding industrial signal conditioning and temperature measurement tasks. It is part of the MACX MCR series known for reliability, accuracy, and safety in demanding environments.
