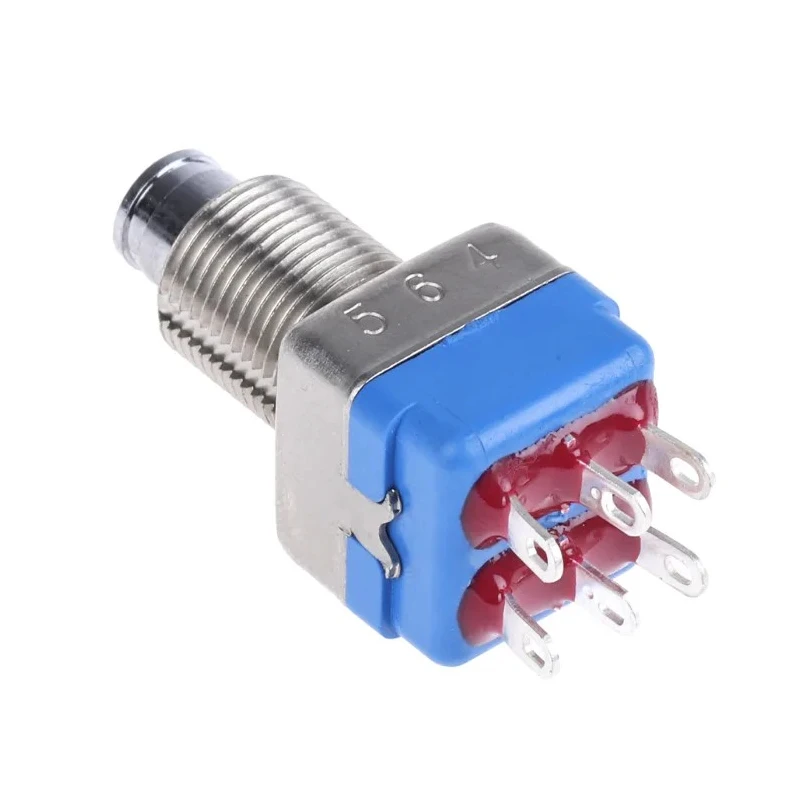

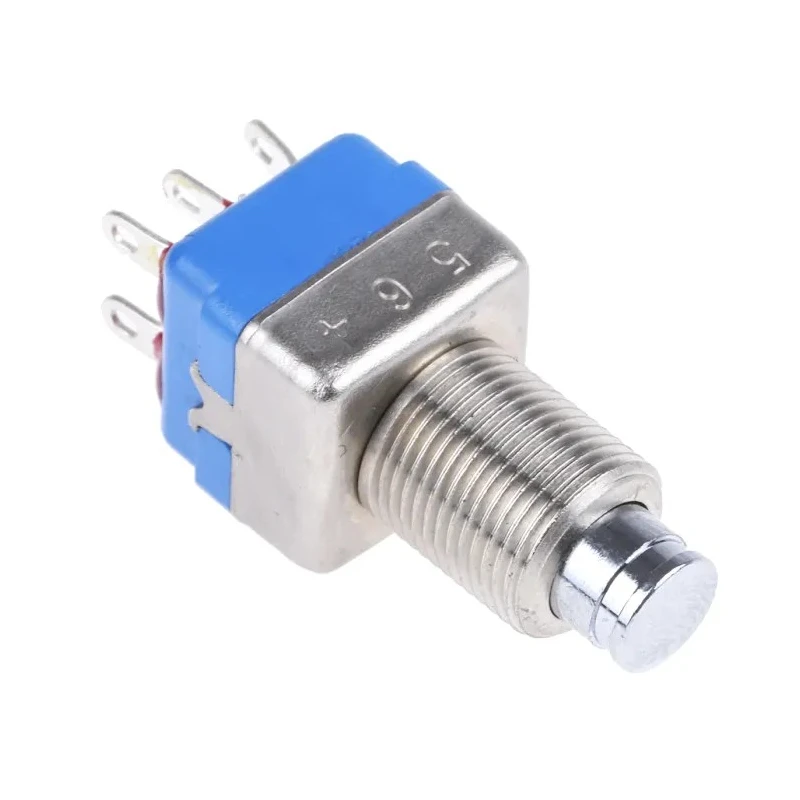

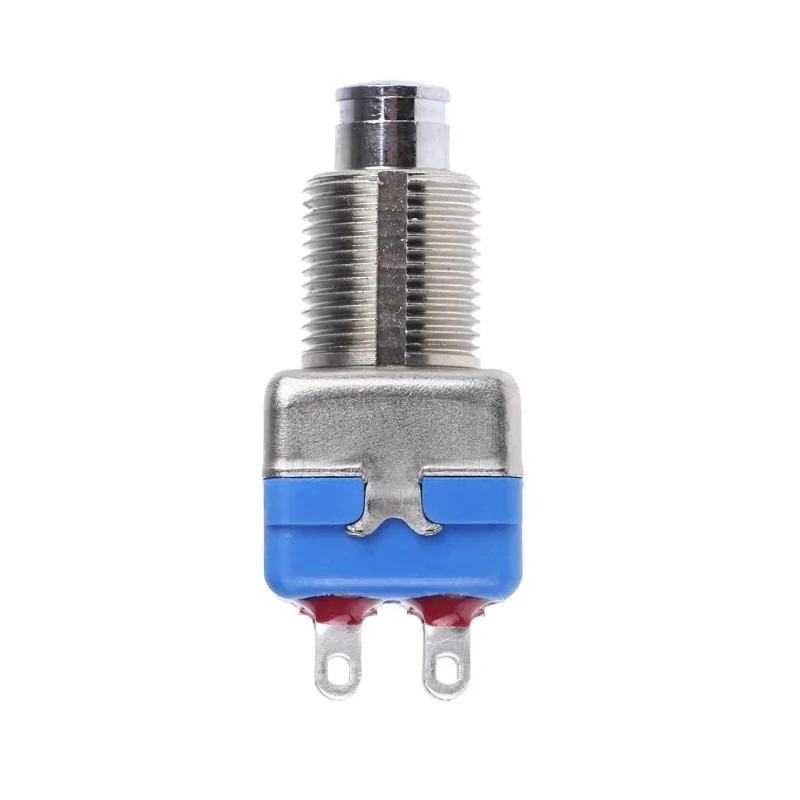

APEM 10400 Series Push Button Switch, Momentary, Panel Mount, 10.2 mm Cutout, DPDT, 24 V dc 104450003
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Operating Temperature Range | -40 → +85 C |
| Mount Type | Panel Mount |
| Series | 10400 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Mom |
| Dielectric strength | 2000 V |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 10.2 mm |
| Terminal type | Solder |
| Contact Resistance | 0.01 Ohm |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 3A |
Key Features
- The actuator color is silver, providing a durable metal finish.
- This momentary switch has solder lug terminals sealed with epoxy resin for reliable connections.
- Suitable for panel mounting with a 10 mm diameter panel cutout.
- Operational temperature ranges from -40°C to +85°C, ensuring performance in harsh environments.
- The switch configuration is On-Mom and it has a 3 A switch contact current rating.
- The switch complies with RoHS standards ensuring environmental safety.
- The contact resistance is very low at approximately 0.01 Ohm for efficient conductivity.
- The switch offers dielectric strength of 2000 V for electrical isolation.
Product Description
APEM 104450003 is a 10400 Series momentary push button switch designed for panel mounting applications requiring a 10.2 mm cutout. Featuring a double pole double throw (DPDT) contact configuration, this switch operates at a DC voltage of 24 V, making it suitable for a range of electrical and industrial control systems.
The actuator is made of durable silver-colored metal, providing a robust user interface. The terminals are solder lug type and sealed with epoxy resin to ensure stable and long-lasting electrical connections under varying operational conditions.
With a compact 10 mm panel cutout size and an operational temperature range from -40°C to +85°C, this switch is engineered for reliable performance in demanding environments, including industrial automation, electrical panels, and machinery control systems.
The switch's momentary operation type (On-Mom) allows it to provide temporary circuit activation, valuable for push-to-make applications. It supports a switch contact current of 3 A and has low contact resistance at approximately 0.01 Ohm, minimizing energy loss. Additionally, it withstands dielectric stress up to 2000 V, ensuring electrical safety and compliance.
Certified RoHS compliant, this product meets environmental standards by restricting hazardous substances. It is manufactured in France, assuring quality and robust design. The push button actuator can be customized with interchangeable plastic caps (available separately), accommodating various application aesthetics.
Designed for ease of installation in panel mount configurations with solder lug terminals sealed with epoxy resin. Suitable for industrial, electronic, automation, manufacturing, and commercial control panel applications.
This APEM push button switch model 104450003 delivers dependable momentary switching performance, meeting the rigorous demands of modern electrical and automation systems. Find this and other high-quality Push Button Switches in EnvMart's Electronics & Electricals category to complement your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -40°C to +85°C, making it suitable for harsh environments.
This switch features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit connections.
The required panel cutout size for this switch is 10.2 mm, ensuring proper fit for panel mounting applications.
The switch has a dielectric strength of 2000 V, providing electrical isolation and safety during operation.
It uses solder lug terminals that are sealed with epoxy resin, ensuring stable and reliable electrical connections.
The maximum switch contact current rating for this model is 3 A, suitable for various applications.
Yes, this switch complies with RoHS standards, which restrict hazardous substances in electrical and electronic equipment.
The actuator color of this switch is silver, providing a durable metal finish for user interaction.
This model supports momentary switch operation (On-Mom), allowing for temporary circuit activation.
This push button switch is manufactured in France, ensuring quality and robust design.
The contact resistance is approximately 0.01 Ohm, which helps minimize energy loss during operation.
Yes, the actuator can be customized with interchangeable plastic caps, allowing for various aesthetic options.
