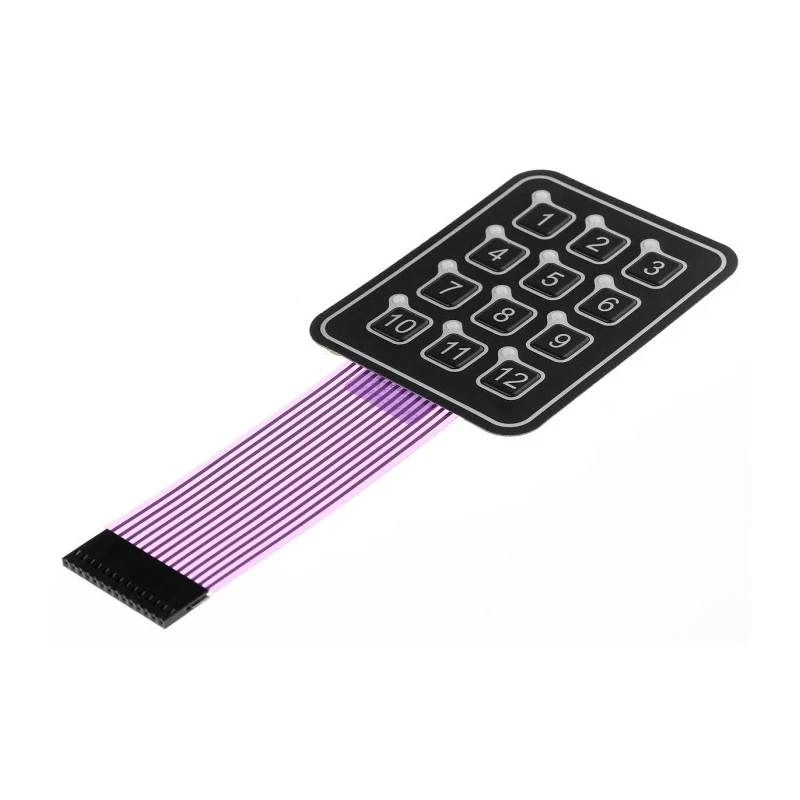

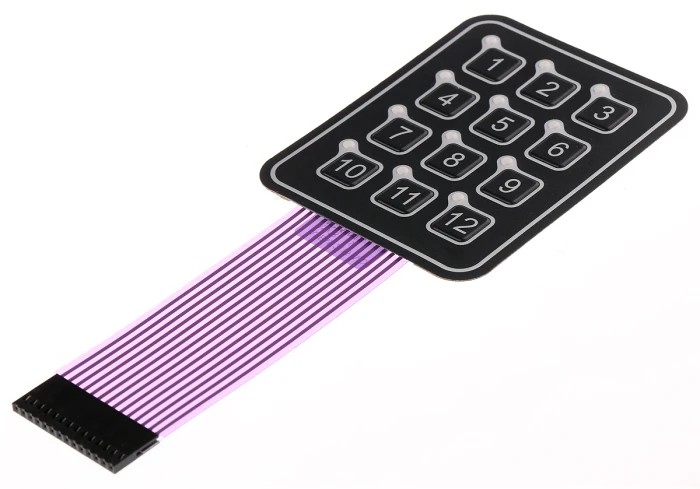

APEM 12 Key Illuminated Silver Membrane Keypad AC3560ILL

APEM AC3560ILL 12 Key Illuminated Silver Membrane Keypad is a robust and versatile input device designed for industrial, electrical automation, and control applications. Featuring a 4 x 3 keypad layout with illuminated silver keys, this membrane keypad enables clear tactile feedback and long-lasting performance. Its silver housing and polycarbonate actuators provide durability and chemical resistance, suitable for demanding environments.

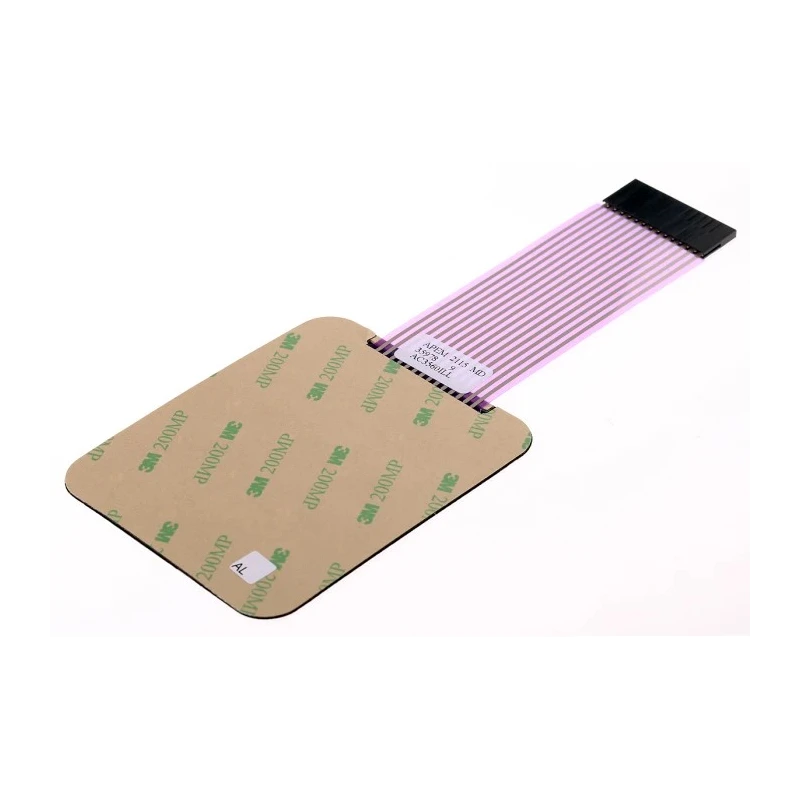

The keypad features a self-adhesive matrix membrane construction allowing straightforward installation on any clean, flat surface. A flexible tail terminates with a female connector compatible with common PCB headers, facilitating seamless integration into control panels and automation systems. The keypad supports complete legend customization by including insertable polycarbonate sheets printed with standard legends on one side and blank on the other for user marking or symbol transfer, enabling user-specific configurations and orientation.

Key technical specifications include 12 keys arranged in a 4x3 matrix, mechanical life exceeding one million cycles, and operational temperature range from -30°C to 55°C, ensuring performance in various industrial climates. It complies with ANSI/ESD S20.20:2014 standard, RoHS directives, and the BS EN 61340-5-1:2007 standard for electrostatic discharge protection.

The keypad's silver contact material (Ag) guarantees high conductivity and reliable signal transmission, making it ideal for control equipment, machinery operation panels, and automation systems in sectors such as manufacturing, HVAC, electrical automation, and laboratory instrumentation.

The keypad comprises 12 illuminated keys arranged in a 4 x 3 matrix format. Housing and actuator are silver colored, with durable polycarbonate material used for the actuator. Mechanical life per key is rated for 1,000,000 cycles ensuring extended operational lifespan.

Equipped with a self-adhesive matrix membrane allowing flexible mounting on flat surfaces. Operates within a wide temperature range from -30°C to 55°C suited for harsh environments. Flexible tail with female connector termination facilitates easy integration with PCB header connectors.

Includes multiple insertable polycarbonate legend sheets for custom legend configuration and keypad orientation flexibility. Meets ANSI/ESD S20.20:2014, RoHS, and BS EN 61340-5-1:2007 standards for safety and environmental compliance.

Contact material used is silver (Ag) ensuring reliable electrical performance.

This membrane keypad is a reliable choice for electrical control panels, automation systems, and industrial machinery interfaces. It combines durability, flexibility in labeling, and illumination for enhanced usability in professional environments. Explore more keypads and switches in the Electronics & Electricals category at EnvMart for comprehensive automation solutions.
