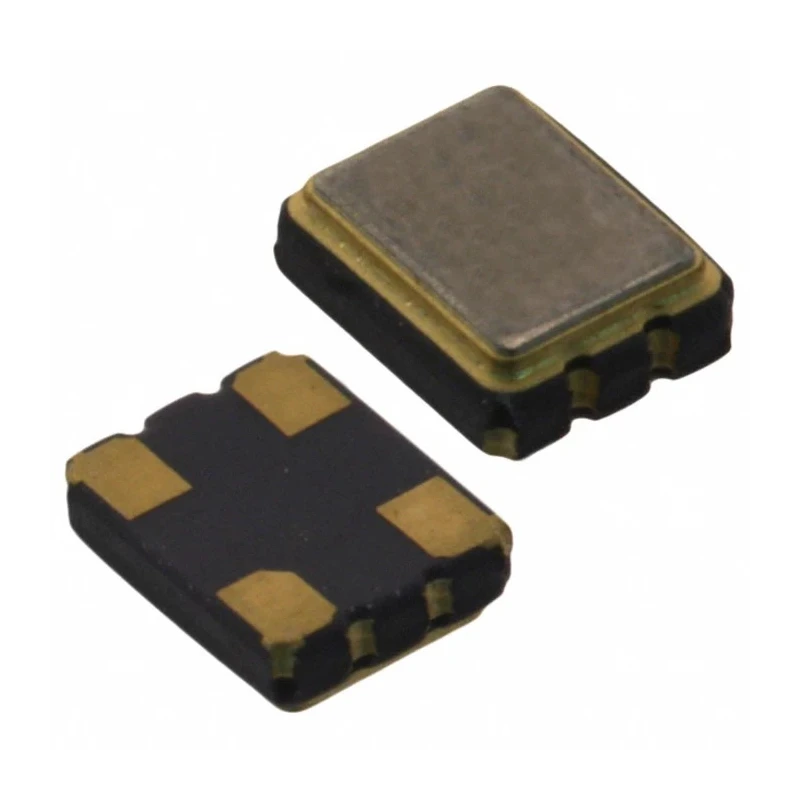

Renesas Electronics 12MHz XO Oscillator ±25 ppm LVCMOS 4-Pin Surface Mount XLH736012.000000I

Renesas Electronics XLH736012.000000I is a 12MHz ultra-precision XO crystal oscillator designed for surface mount applications. It offers an LVCMOS output with a frequency stability of ±25 ppm, making it suitable for timing-sensitive electronic designs requiring high accuracy.

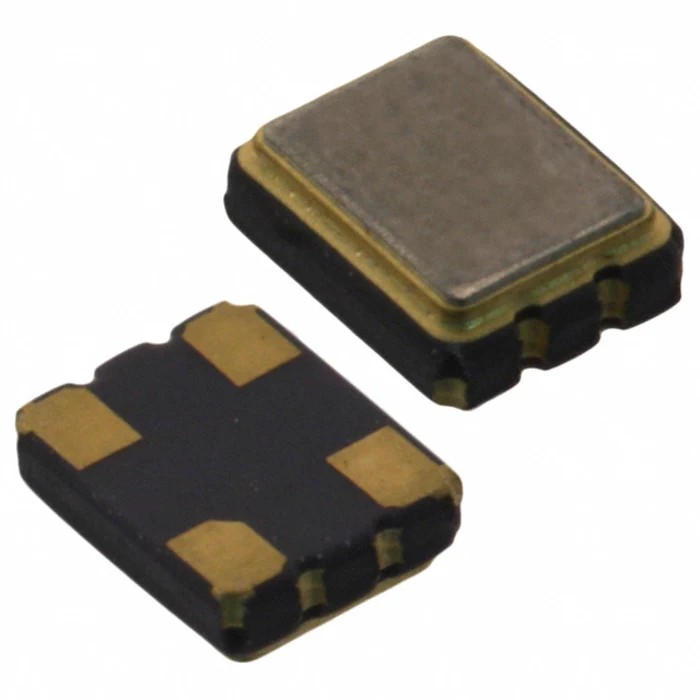

The device features a 4-pin surface mount package measuring 7.0 mm in length, 5.0 mm in width, and 1.3 mm in height. It operates over a temperature range of -20°C to +70°C, ensuring reliable performance in varied industrial and commercial environments.

This oscillator supports supply voltages ranging from -0.5V to 5V, with typical operation at 2.5V or 3.3V, making it compatible with a wide range of circuits. The design incorporates proprietary ASIC technology to achieve ultra-low phase jitter between 750 to 890 femtoseconds over a 12 kHz to 20 MHz bandwidth, suitable for noise-sensitive applications like communications, instrumentation, and industrial control.

The RoHS-compliant construction ensures environmentally responsible manufacturing standards are met. The XL series encapsulates Renesas's focus on noise reduction and precise oscillation, delivering high-quality timing components.

This oscillator maintains a frequency stability of ±25 ppm during operation. It outputs a logic level compatible with LVCMOS signaling standards. The compact 4-pin surface mount package enables easy PCB integration. Operating temperature ranges from -20°C to +70°C for versatile usage.

Supports supply voltages of 2.5V or 3.3V for flexible power options. Phase jitter is minimized, enhancing signal integrity in electronic systems. Ideal for industrial, communications, laboratory, and manufacturing applications.

Meets RoHS environmental standards, assuring compliance.

Choose Renesas Electronics XLH736012.000000I for precision clock generation in your electronic designs. Explore additional Oscillators and related components for comprehensive timing solutions on EnvMart.
