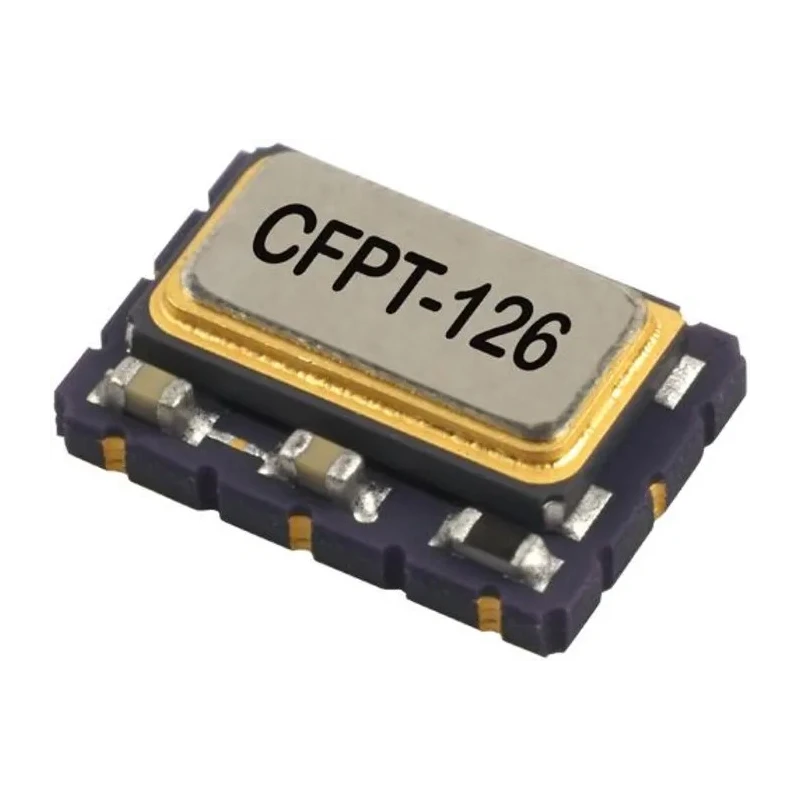

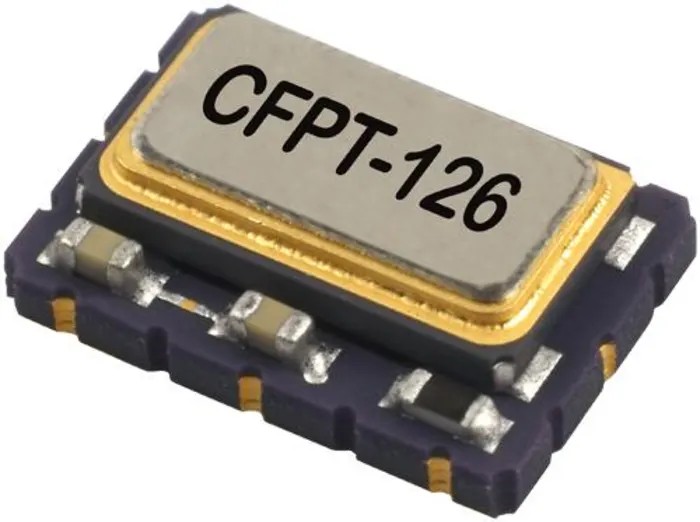

IQD 40MHz HCMOS Surface Mount TCVCXO Oscillator ±0.5 ppm Frequency Stability Ceramic Package LFTVXO009917

Free Delivery in India | Lowest Global Shipping Charges

IQD 40MHz HCMOS Surface Mount TCVCXO Oscillator ±0.5 ppm Frequency Stability Ceramic Package LFTVXO009917



Category Oscillator Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	2mm
Length	7mm
Model	LFTVXO009917
Width	5mm
Mount Type	Surface
Series	CFPT-126
Maximum Operating Temperature	85°C
Output Frequency	40MHz
Package Type	Ceramic package
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH, MSL, JDEC-STD-033
Pin Count	4
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.65V
Load Capacitance	15pF
Output Level	HCMOS
IQD 20MHz TCXO Oscillator, HCMOS ±0.9ppm 7x5mm SMDLFTVXO009907Brand	IQD

Key Features

Output frequency is precisely 40MHz with HCMOS output level.
Operating temperature ranges from -40°C to 85°C.
Supply voltage range is 1.65V to 3.3V for flexible applications.
Ceramic package ensures durability and environmental protection.
Compact size with dimensions 7mm x 5mm x 2mm (L x W x H).
Designed for surface mount application with 4 pins.
Load capacitance specified as 15pF for optimized oscillator performance.
Complies with RoHS, REACH, MSL, JDEC-STD-033 standards.

Product Description

IQD LFTVXO009917 is a high precision 40MHz temperature compensated voltage controlled oscillator (TCVCXO) featuring a HCMOS output and enclosed in a hermetically sealed ceramic package. This device provides exceptional frequency stability of ±0.5 ppm over a wide temperature range, making it ideal for demanding industrial, telecommunications, and instrumentation applications where stable oscillation is critical.

The oscillator operates from a minimum supply voltage of 1.65V up to a maximum of 3.3V, supporting low-power designs and versatile integration options. Its compact size with a length of 7mm, width of 5mm, and height of 2mm enables easy surface mount assembly in space-constrained electronic circuits. The unit has a 4-pin configuration suitable for footprint-compatible mounting.

Designed for demanding environments, the ceramic package provides robust protection against mechanical stress and environmental factors, ensuring long-term reliability. This oscillator complies with industry standards including RoHS, REACH, MSL, and JDEC-STD-033, supporting both environmental safety and manufacturing quality requirements.

The load capacitance of 15pF is optimized for stable oscillator operation. The IQD TCVCXO series CFPT-126 model offers a temperature stable frequency source widely applicable in telecommunications infrastructure, industrial control systems, and instrumentation equipment where precise timing and frequency signals are mandated.

Precision 40MHz frequency output with HCMOS level. ±0.5 ppm frequency stability across temperature range. Wide operating temperature from -40°C to 85°C. Low supply voltage range: 1.65V to 3.3V. Hermetically sealed ceramic surface mount package.

Compact footprint: 7mm length, 5mm width, 2mm height. 4-pin surface mount design for PCB integration. Load capacitance of 15pF optimized for stable oscillation. Complies with RoHS, REACH, MSL, and JDEC-STD-033 standards.

Suitable for industrial, telecom, instrumentation applications.

The IQD LFTVXO009917 model provides reliable, high-stability oscillator solutions essential for precise frequency generation in various electronics components. Browse EnvMart for a comprehensive range of electronic Oscillators and frequency control devices to suit your industrial and commercial projects.
