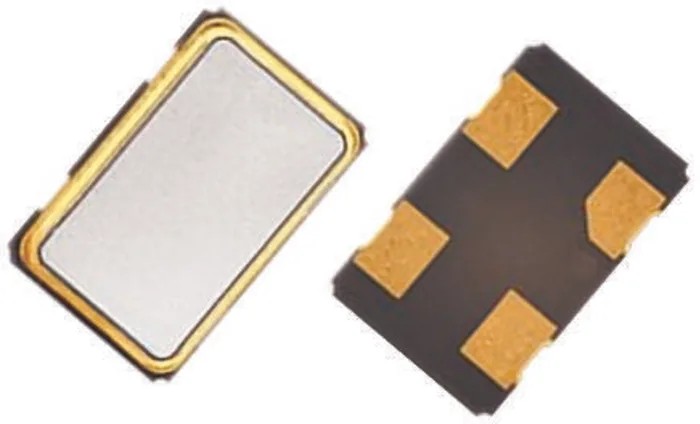

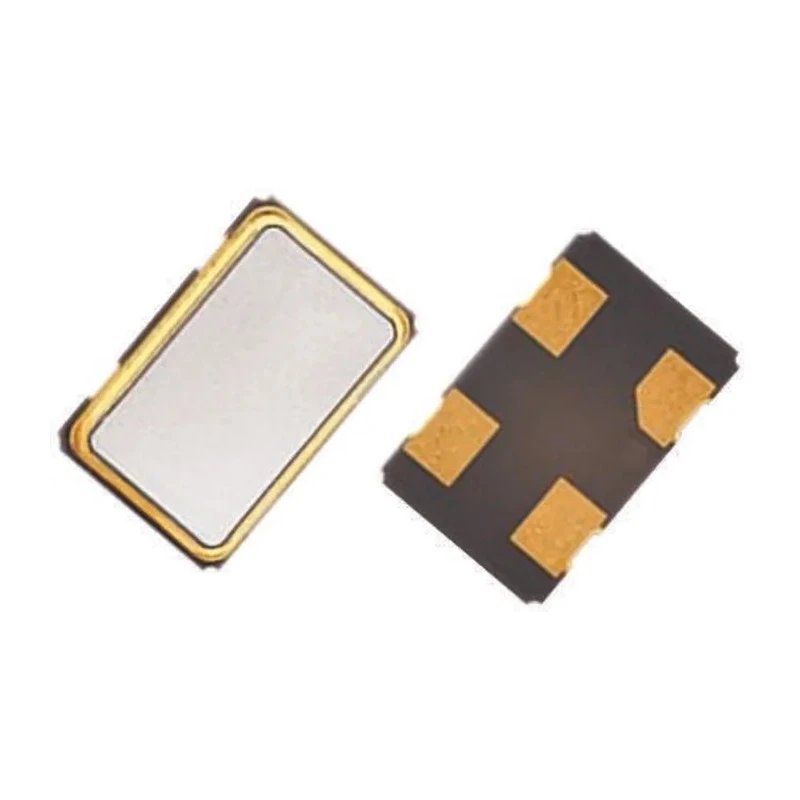

AKER 16MHz Clock Oscillator ±50 ppm CMOS 4-Pin Surface Mount S53305-16.000-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.95mm |
| Length | 5mm |
| Model | S53305-16.000-X |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | S5 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb - Lead Free, RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock |
| Output Level | CMOS |
Key Features
- Operates with 16MHz output frequency for reliable clock generation.
- Compatible with supply voltage ranging from 1.8V to 3.3V.
- Surface mount package type with 4 pins ensuring compact PCB integration.
- Suitable operating temperature range from -40°C to 85°C for diverse environments.
- Load capacitance is 15pF, optimized for consistent oscillation.
- Measures 5mm length, 3.2mm width, and 0.95mm height for space-saving design.
- Lead-free and RoHS compliant, meeting environmental standards.
- Mounted via tape and reel packaging facilitating automated assembly.
Product Description
AKER S53305-16.000-X is a high-performance 16MHz clock oscillator designed with CMOS output and packaged in a 4-pin surface mount configuration. It features excellent frequency stability of ±50 ppm that ensures precise and reliable timing for electronic circuits.
This oscillator supports a broad supply voltage range from 1.8V minimum to 3.3V maximum, catering to modern low-voltage electronics. The load capacitance is specified at 15pF, ensuring optimal signal integrity in oscillator circuits.
The compact surface mount package dimensions are 5mm in length, 3.2mm in width, and 0.95mm in height, making it ideal for space-constrained PCB layouts. It operates effectively in industrial temperature conditions from -40°C up to 85°C, enabling usage in automotive and industrial applications.
The device is compliant with Pb-free (lead-free) and RoHS environmental standards, promoting eco-friendly manufacturing processes. It is supplied in tape and reel packaging, which is suitable for automated pick-and-place assembly lines, enhancing manufacturing efficiency.
Output frequency of 16MHz for accurate clock timing. Frequency stability of ±50 ppm to reduce timing errors. CMOS output level compatible with modern digital systems. Surface mount package type with 4 pins ensuring ease of installation.
Wide operational temperature range from -40°C to 85°C for robustness. Pb-free and RoHS compliant construction promoting environmental safety. Tape and reel packaging facilitating automated production. Compact dimensions enable integration into dense circuit layouts.
Load capacitance of 15pF optimized for stable oscillation. This oscillator is ideally suited for use in industrial, automotive, telecommunications, and consumer electronics where precise timing and frequency control are critical.
Explore more electronic components and Oscillators on EnvMart for advanced design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 16MHz, providing reliable clock generation for electronic circuits.
This clock oscillator operates with a supply voltage ranging from 1.8V to 3.3V, making it suitable for modern low-voltage electronics.
The dimensions of this unit are 5mm in length, 3.2mm in width, and 0.95mm in height, allowing for space-saving integration on PCBs.
The load capacitance for this model is specified at 15pF, which is optimized for stable oscillation in circuit applications.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for diverse industrial and automotive environments.
This oscillator features a CMOS output level, which is compatible with modern digital systems.
The device is supplied in tape and reel packaging, which facilitates automated pick-and-place assembly lines, enhancing manufacturing efficiency.
Yes, it is Pb-free and RoHS compliant, promoting eco-friendly manufacturing processes.
The frequency stability of this model is ±50 ppm, which helps in reducing timing errors in electronic circuits.
This clock oscillator has a pin count of 4, suitable for surface mount applications.
This model belongs to the S5 series, which is known for its high-performance oscillators.
It is ideally suited for use in industrial, automotive, telecommunications, and consumer electronics where precise timing and frequency control are critical.
