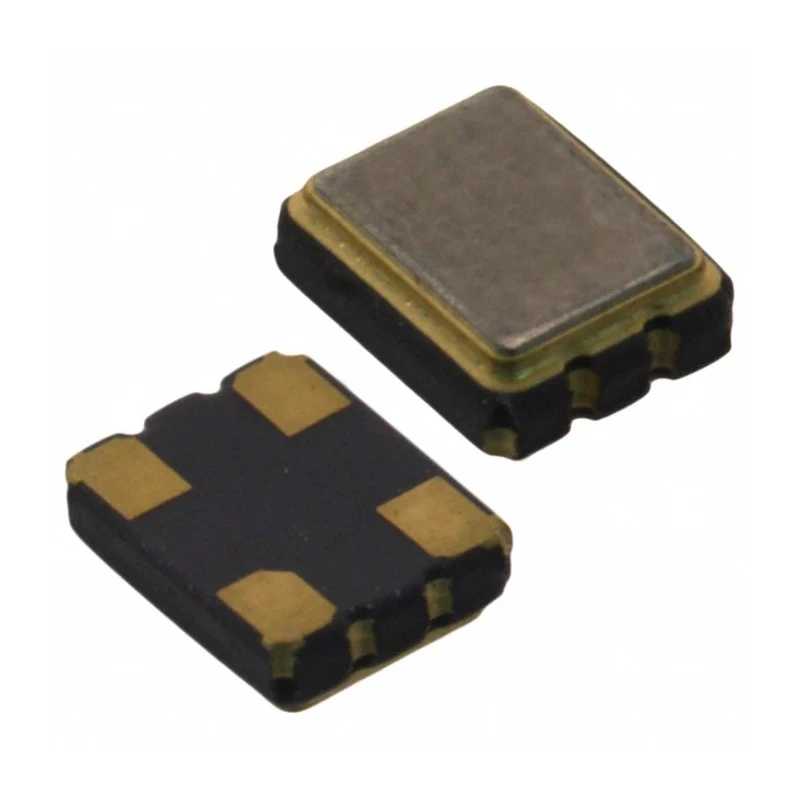

Renesas Electronics 24MHz XO Oscillator ±25 ppm LVCMOS 4-Pin Surface Mount XLH736024.000000I

Renesas Electronics XLH736024.000000I is a high-precision 24MHz XO oscillator featuring ±25 ppm frequency stability and LVCMOS output level. It comes in a compact 4-pin surface mount package measuring 7mm in length, 5mm in width, and 1.3mm in height, making it suitable for space-constrained electronic designs.

This oscillator operates with a supply voltage ranging from -0.5V to 5V, with typical operating voltages at 2.5V or 3.3V, ensuring compatibility across a wide range of electronic systems. It performs reliably within an industrial temperature range of -20°C to +70°C, making it suitable for demanding environments.

The XL series utilizes proprietary ASICs that deliver outstanding noise reduction, resulting in ultra-low phase jitter between 750 to 890 femtoseconds over a 12kHz to 20MHz bandwidth. This precision ensures stable and reliable timing for critical applications in industrial automation, communications, and automotive electronics.

The device has a 4-pin surface mount configuration that facilitates easy PCB integration and is RoHS compliant, underscoring its environmentally friendly design and manufacturing process.

Operates at a fixed frequency of 24MHz with ±25 ppm tolerance. Provides a low voltage CMOS (LVCMOS) output type suitable for modern digital circuits. Compact surface mount package dimensions of 7mm length, 5mm width, and 1.3mm height.

Wide supply voltage range from -0.5V minimum to 5V maximum with typical 2.5V or 3.3V supply. Robust operating temperature from -20°C to +70°C supports varied industrial and commercial applications. Incorporates advanced ASIC technology to minimize phase jitter and noise interference.

Compliant with RoHS for sustainable and safe usage. Ideal for precise timing applications in industrial, communication, automotive, and consumer electronics sectors. Explore Renesas Electronics products and the Oscillator category on EnvMart for advanced electronic components meeting rigorous industrial standards.
