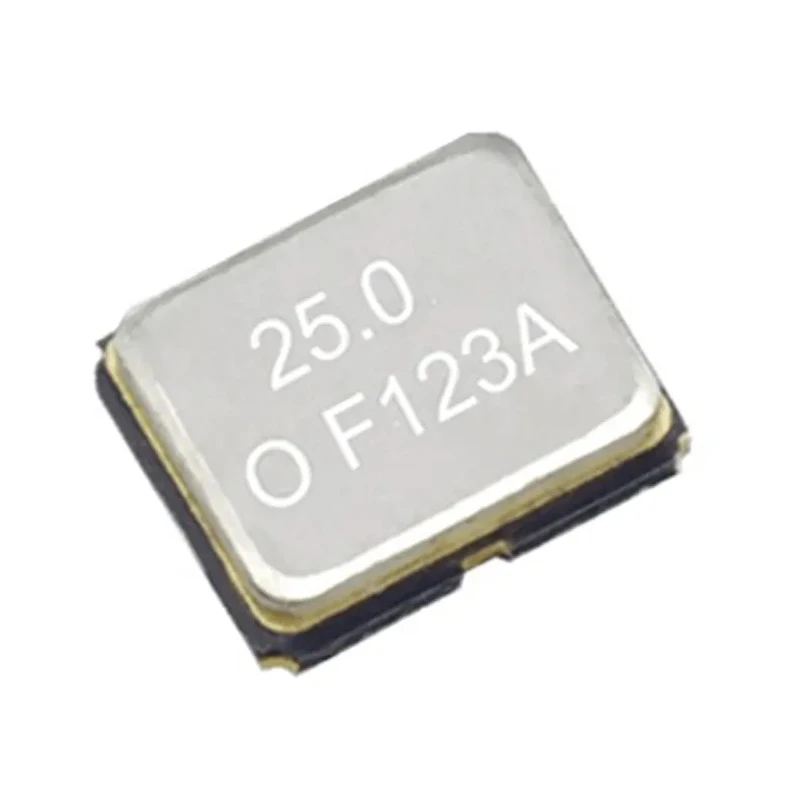

Epson 25MHz XO Oscillator CMOS 4-Pin Surface Mount SG-210 STF X1G004171003312

Free Delivery in India | Lowest Global Shipping Charges

Epson 25MHz XO Oscillator CMOS 4-Pin Surface Mount SG-210 STF X1G004171003312

Name: Epson 25MHz XO Oscillator CMOS 4-Pin Surface Mount SG-210 STF X1G004171003312
Brand: Epson
SKU: 136081
Price: 2.73 USD
Availability: InStock



Category Oscillator Brand Epson Condition New

Specifications

Country of Origin	India
Brand	Epson
Height	0.8mm
Length	2.5mm
Model	X1G004171003312
Width	2mm
Mount Type	Surface
Series	SG-210 STF
Maximum Operating Temperature	105°C
Output Frequency	25MHz
Minimum Operating Temperature	-40°C
Standards/Approvals	ISO 14001, ISO9001, ISO/TS 16949, EU RoHS
Pin Count	4
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.6V
Load Capacitance	15pF
Oscillator Type	XO
Output Level	CMOS

Key Features

Operates within a supply voltage range of 1.6 to 3.6 V.
Features a load capacitance of 15pF for optimal frequency stability.
Designed to function reliably over a wide temperature range from -40°C to 105°C.
Low current consumption with excellent phase noise characteristics.
Complies with standards including ISO 14001, ISO9001, ISO/TS 16949, and EU RoHS.
Compact ceramic package suitable for space-saving electronic designs.
Pin count of 4 supports standard connections for oscillators in embedded applications.
Part of the SG-210 STF series known for stability and performance in industrial and automotive electronics.

Product Description

Epson X1G004171003312 is a 25MHz XO (crystal) oscillator featuring CMOS output and a compact 4-pin surface mount package, part of the SG-210 STF series. It operates efficiently with a supply voltage range from 1.6 V up to 3.6 V.

This oscillator has a load capacitance of 15pF and delivers a stable output frequency suitable for a wide array of electronic circuits requiring precise timing signals. It supports an operating temperature range from -40°C to +105°C, making it suitable for industrial, automotive, and commercial electronics applications where temperature variations occur.

The device is housed in a compact ceramic case measuring 2.5mm in length, 2.0mm in width, and 0.8mm in height, ensuring easy integration into space-constrained circuit boards. Its low current consumption and excellent phase noise enhance the reliability and performance of sensitive timing circuits.

Complying with ISO 14001, ISO9001, ISO/TS 16949, and EU RoHS standards, this oscillator meets international quality and environmental requirements. The 4-pin surface mount configuration facilitates automated PCB assembly for mass production.

Operates at a fixed frequency of 25MHz with CMOS output level. Compact 2.5 x 2.0 mm SMD package for space-saving installation. Wide voltage supply tolerance from 1.6 V to 3.6 V. Operating temperature from -40°C to 105°C for robust industrial use.

Low power consumption and superior phase noise characteristics. Compliant with global quality and environmental standards. Suitable for industrial, laboratory, automotive, and commercial electronics. Packaged for surface mounting with 4-pin design for stability.

This Epson crystal oscillator is ideal for electronic equipment requiring stable and exact clock generation, including microcontrollers, communications equipment, and instrumentation devices. It supports advanced manufacturing and design needs, enhancing precision and efficiency.
