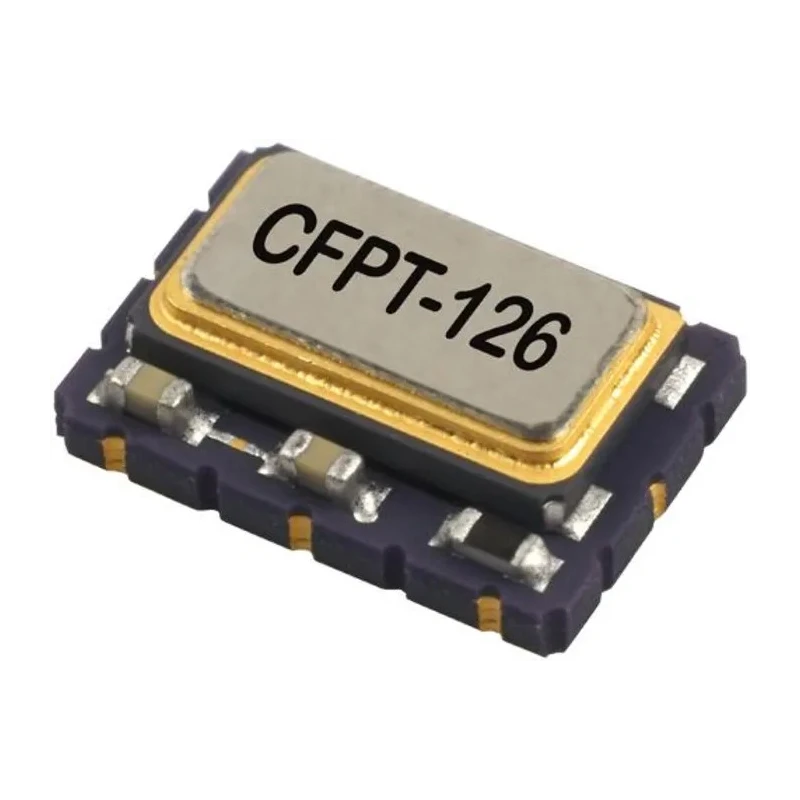

IQD 40MHz Oscillator HCMOS ±0.5 ppm Ceramic Package, Surface Mount, 1.65-3.3V Supply LFTVXO009912

Free Delivery in India | Lowest Global Shipping Charges

IQD 40MHz Oscillator HCMOS ±0.5 ppm Ceramic Package, Surface Mount, 1.65-3.3V Supply LFTVXO009912



Category Oscillator Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	2mm
Length	7mm
Model	LFTVXO009912
Width	5mm
Mount Type	Surface
Series	CFPT-126
Maximum Operating Temperature	85°C
Output Frequency	40MHz
Package Type	Ceramic package
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH, MSL, JDEC-STD-033
Pin Count	4
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.65V
Load Capacitance	15pF
Output Level	HCMOS

Key Features

Operates at 40MHz output frequency with HCMOS output level.
Supply voltage range from 1.65V to 3.3V supports low power operation.
Compact ceramic package with dimensions 7mm length, 5mm width, and 2mm height.
Suitable for industrial and electronic applications requiring precise frequency control.
Temperature range from -40°C to 85°C for broad environmental tolerance.
Four pins for secure surface mount installation on PCB boards.
Conforms to RoHS, REACH, MSL, and JDEC-STD-033 standards ensuring quality and compliance.

Product Description

IQD LFTVXO009912 is a high precision 40MHz oscillator featuring HCMOS output and exceptional frequency stability of ±0.5 ppm. It is housed in a hermetically sealed ceramic package ensuring durability and protection in demanding environments.

This surface mount oscillator operates within a supply voltage range of 1.65V to 3.3V and has a load capacitance of 15pF, making it suitable for modern low power electronics requiring precise frequency references. The device dimensions of 7 mm length, 5 mm width, and 2 mm height facilitate compact PCB layouts.

The temperature compensated voltage controlled oscillation capability makes it ideal for industrial, electronic component manufacturing, test instrumentation, and communication devices where frequency stability and reliability are critical. It supports operation over a wide temperature range of -40°C to 85°C, accommodating harsh environmental conditions.

With a 4-pin configuration and compliance to RoHS, REACH, MSL, and JDEC-STD-033 standards, this oscillator guarantees assured quality and environmental safety. It belongs to the CFPT-126 series and is not certified for automotive standards, focusing on commercial and industrial applications.

Operates at precise 40MHz frequency with low phase noise output. Excellent ±0.5 ppm frequency stability across operating temperature range. Compact and durable ceramic surface mount package design. Wide supply voltage range between 1.65V and 3.3V for flexible use.

Meets international quality and environmental standards. Four-pin mount for ease of integration on circuit boards.

This oscillator is suited for electronics manufacturers, laboratory instruments, telecommunications equipment, and industrial controls needing stable and reliable timing references. Explore additional Oscillator and frequency control solutions in EnvMart for comprehensive component sourcing.
