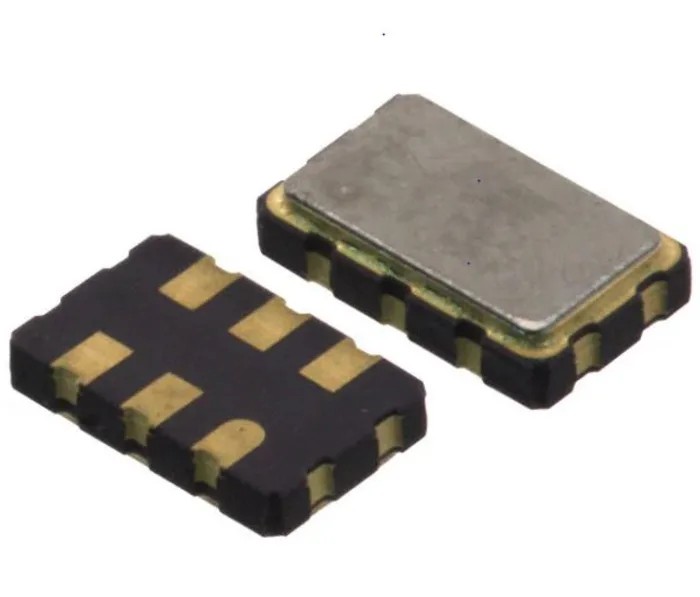

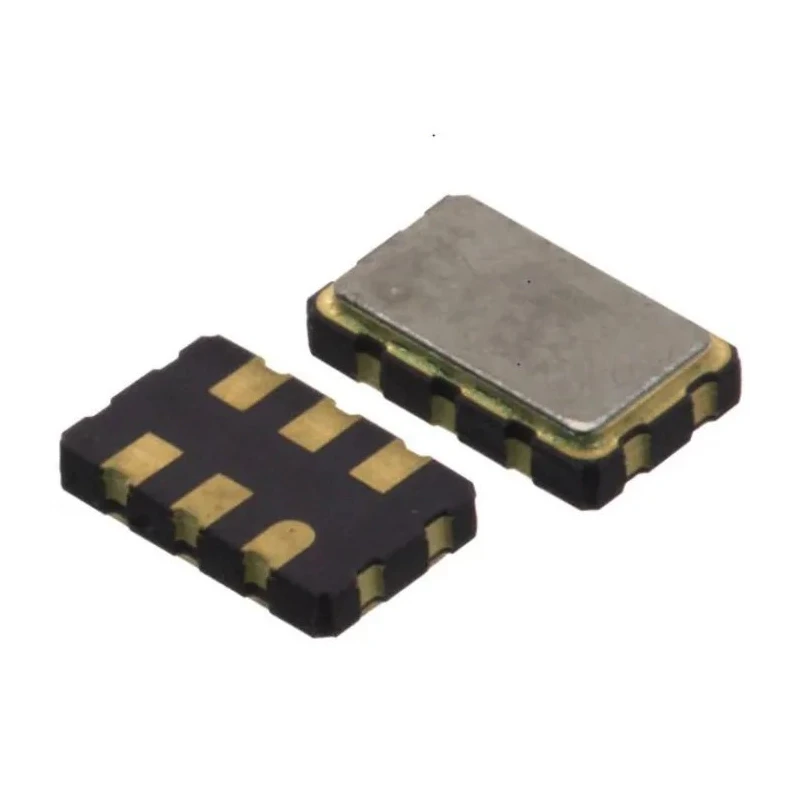

Renesas Electronics 0.75MHz Ultra-Precision XO Oscillator 25 ppm LVDS, 4-Pin VCXO XLL536125.000000I

Renesas Electronics XLL536125.000000I is a 0.75MHz crystal oscillator featuring ultra-precision XO technology and a frequency stability of 25 ppm. This device is designed as a 4-pin VCXO surface mount oscillator with an LVDS output level, catering to high-performance industrial and electronic applications including telecommunications, instrumentation, and computing systems.

The oscillator features exceptionally low phase jitter typically ranging from 750 to 890 femtoseconds over a 12kHz to 20MHz bandwidth, ensuring signal integrity and precision in timing circuits. The device operates at supply voltages between -0.5V and 5V, making it compatible with a broad range of electronic systems.

Its compact physical dimensions of 5mm in length, 3.2mm in width, and 1.1mm in height allow integration into space-constrained PCB layouts. Operating temperature range from -20°C to +70°C ensures dependable performance in varied environmental conditions. The oscillator is RoHS compliant, guaranteeing adherence to environmental regulations.

The Renesas Electronics XL series utilizes proprietary ASICs with a strong focus on noise reduction and offers multiple output type options including LVDS, LVPECL, and LVCMOS for flexible interfacing. This oscillator is suitable for industrial, laboratory, telecommunications, and manufacturing applications requiring precise, stable clock generation.

Oscillator frequency is precisely 0.75MHz with a stability of 25 ppm. It delivers low phase jitter between 750 to 890 femtoseconds over a 12kHz to 20MHz bandwidth. The package type is a 4-pin VCXO surface mount with dimensions of 5mm length, 3.2mm width, and 1.1mm height.

Output level is LVDS with options for LVPECL and LVCMOS. Operating voltage ranges from -0.5V minimum to 5V maximum. Designed for operating temperatures from -20°C to 70°C. Complies with RoHS standards ensuring environmentally friendly manufacturing.

Series XL with proprietary ASIC technology focuses on noise reduction.

This Oscillator supports diverse industrial and electronic component applications. Explore the Electronics Components category at EnvMart for compatible products by Renesas Electronics and other leading manufacturers.
