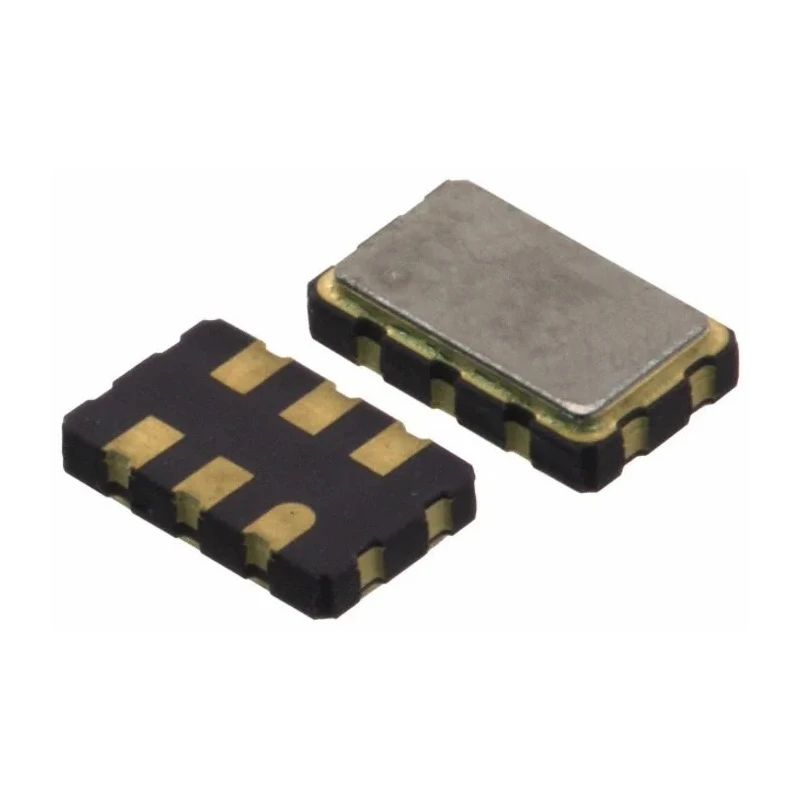

Renesas Electronics 100MHz XO Oscillator ±50 ppm LVCMOS 4-Pin Surface Mount XLH735100.000000X

Renesas Electronics XLH735100.000000X is a 100MHz crystal oscillator of XO type designed for high precision and low jitter applications. It delivers stable output frequency with LVCMOS logic output and ±50 ppm frequency stability, making it ideal for timing-sensitive industrial, communication, and consumer electronic circuits.

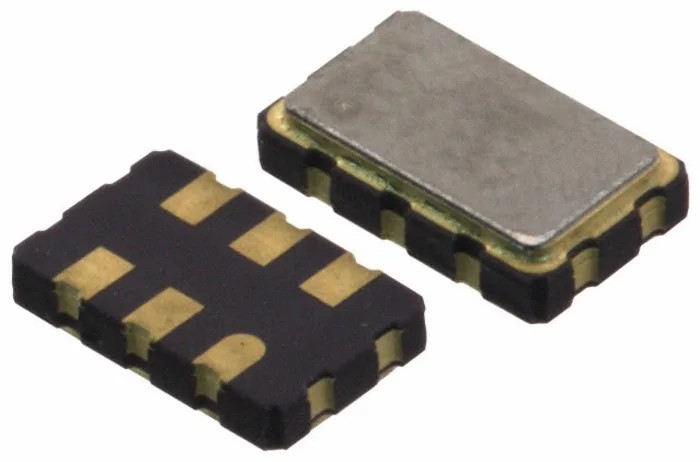

This oscillator comes in a 4-pin surface mount package measuring 7 mm in length, 5 mm in width, and 1.3 mm in height, suitable for compact PCB mounting. It operates reliably within a temperature range of -20°C to +70°C and supports supply voltages of 2.5V or 3.3V.

The XL series incorporates proprietary ASIC technology that reduces phase noise and jitter, achieving typical phase jitter values between 750 and 890 femtoseconds measured over a 12kHz to 20MHz bandwidth, which is critical for maintaining signal integrity in demanding electronic environments.

The device is RoHS compliant, ensuring environmental safety and adherence to regulatory standards. This oscillator is ideal for industrial, laboratory, communication, and precision electronic manufacturing applications where timing accuracy is paramount.

Output frequency of 100MHz suitable for precise timing applications. Frequency stability of ±50 ppm ensures reliable oscillator performance. LVCMOS output type compatible with modern digital circuits. Compact 7 x 5 x 1.3 mm surface mount package with 4 pins for space-efficient PCB design.

Operating temperature range from -20°C to +70°C supports a wide range of environmental conditions. Supply voltage range includes 2.5V or 3.3V typical operation. Low phase jitter of 750 to 890 femtoseconds ideal for high-frequency signal integrity.

RoHS compliant and suitable for industrial and commercial electronic applications. Explore the Electronics Components category on EnvMart for a wide selection of crystal Oscillators and related products from leading manufacturers including Renesas Electronics.
