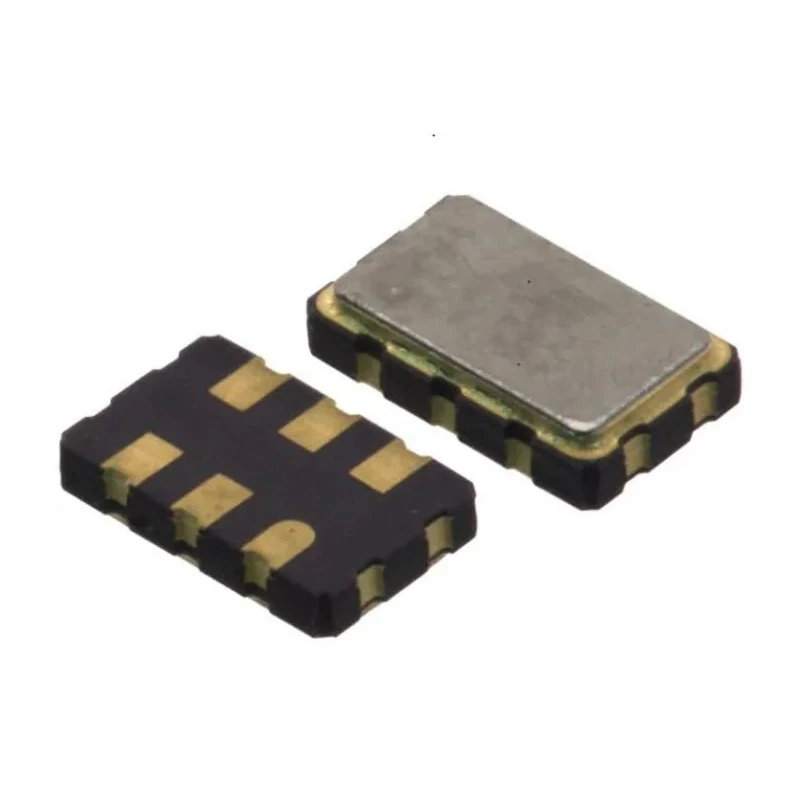

Renesas Electronics 0.75MHz XO Oscillator 25 ppm LVDS 6-Pin VCXO XLH536016.000000I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Operating Temperature | -40°C to +105°C (XO only) |
| Height | 1.1mm |
| Length | 5mm |
| Model | XLH536016.000000I |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | XL |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 0.75MHz |
| Package Type | VCXO |
| Minimum Operating Temperature | -20°C |
| Supply Voltage | 2.5V or 3.3V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.3V |
| Oscillator Type | XO |
| Output Level | LVDS |
| Output Types | LVDS, LVPECL, LVCMOS |
Key Features
- Operating frequency of 0.75MHz with XO oscillator type for precise timing.
- Low jitter performance ensures signal integrity in sensitive electronic circuits.
- 6-pin VCXO package with LVDS output level enables high-speed interface compatibility.
- Surface mount design allows easy integration on PCBs with small footprint.
- Operating temperature range from -20°C to 70°C suitable for industrial environments.
- Compact dimensions of 5mm length, 3.2mm width, and 1.1mm height for space-constrained designs.
- Supply voltage options of 2.5V or 3.3V to support various logic levels.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Renesas Electronics XLH536016.000000I 0.75MHz XO Oscillator is a high-precision crystal oscillator featuring a 25 ppm frequency stability and LVDS output, packaged in a 6-pin VCXO surface mount package. The device offers ultra-low phase jitter between 750 to 890 femtoseconds typical over a 12 kHz to 20 MHz bandwidth, making it highly suitable for sensitive timing applications in industrial, telecommunications, and instrumentation markets.
This oscillator operates at a nominal frequency of 0.75 MHz with options for supply voltages of 2.5V or 3.3V, providing compatibility with various electronic systems. Its compact size of 5 x 3.2 x 1.1 mm facilitates integration into space-constrained printed circuit boards. The device supports operating temperatures between -20°C and 70°C, ensuring reliable performance in industrial environments.
Featuring RoHS compliance, the oscillator is environmentally friendly and meets current regulatory demands. The low jitter performance and multiple output level compatibility (LVDS, LVPECL, LVCMOS) enable robust signal integrity in demanding electronic circuits requiring precise frequency control.
This oscillator is ideal for applications such as industrial automation, telecommunications equipment, test and measurement instruments, and other electronic devices requiring stable clock sources. The 6-pin VCXO package provides flexibility for voltage control applications where precise frequency tuning is necessary.
Operating frequency: 0.75 MHz with XO oscillator type. Output type: LVDS with 6-pin VCXO surface mount package. Frequency stability: 25 ppm for consistent timing. Power supply: 2.5V or 3.3V options available. Operating temperature range: -20°C to 70°C.
Compact dimensions of 5 x 3.2 x 1.1 mm. RoHS compliant for environmental safety. Ultra-low phase jitter for high signal integrity. Explore EnvMart’s extensive range of electronic components and Crystal Oscillators for your precise electronic timing requirements and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscillator operates at a frequency of 0.75 MHz.
It supports LVDS, LVPECL, and LVCMOS output levels.
This model can operate with supply voltages of 2.5V or 3.3V.
The oscillator operates within a temperature range of -20°C to 70°C.
The dimensions are 5 mm in length, 3.2 mm in width, and 1.1 mm in height.
It features ultra-low phase jitter between 750 to 890 femtoseconds over a bandwidth of 12 kHz to 20 MHz.
This model is packaged in a 6-pin VCXO surface mount configuration.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for applications in industrial automation, telecommunications equipment, and test and measurement instruments.
The frequency stability is 25 ppm, ensuring consistent timing performance.
The mounting type for this oscillator is surface mount, facilitating easy integration on PCBs.
The country of origin for this oscillator is India.
