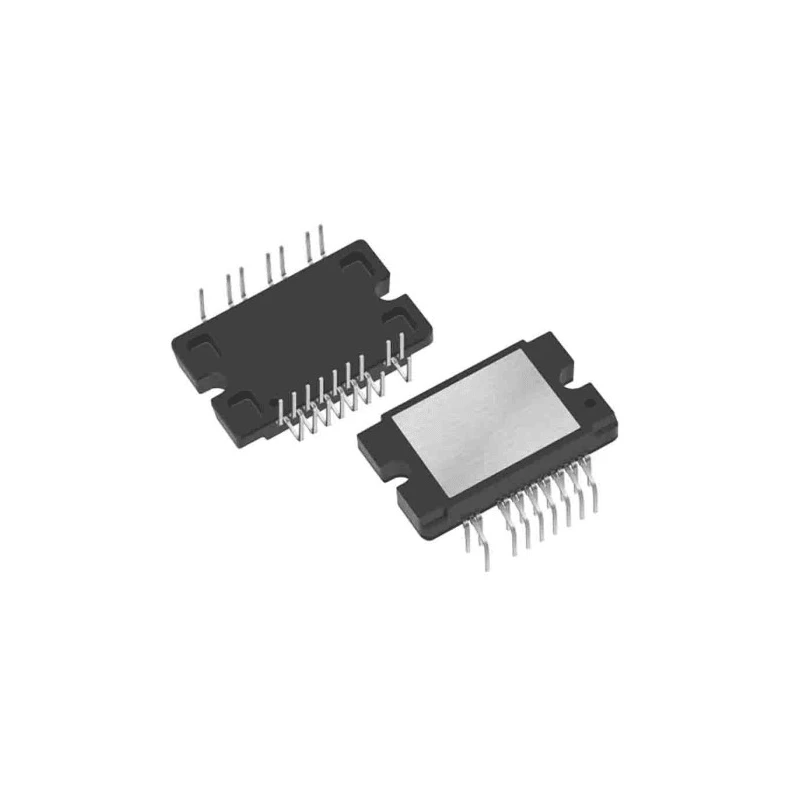

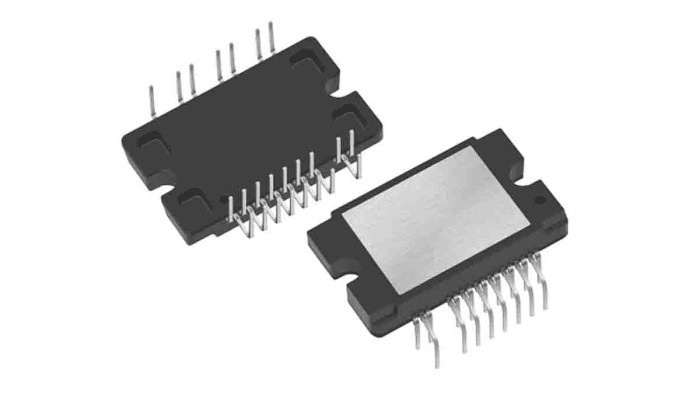

onsemi N-Channel Intelligent Power Module 8 A 600 V 38-Pin DIP Surface Mount NFAQ0860L33T

Free Delivery in India | Lowest Global Shipping Charges

onsemi N-Channel Intelligent Power Module 8 A 600 V 38-Pin DIP Surface Mount NFAQ0860L33T

Name: onsemi N-Channel Intelligent Power Module 8 A 600 V 38-Pin DIP Surface Mount NFAQ0860L33T
Brand: onsemi
SKU: 164360



Category Discrete Semiconductors Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	NFAQ0860L33T
Mount Type	Surface
Series	NFAQ0860L33T
Maximum Operating Temperature	150°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Standards/Approvals	UL1557
Pin Count	38
Maximum Continuous Collector Current Ic	8A
Maximum Collector Emitter Voltage Vceo	600V
Maximum Collector Emitter Saturation Voltage VceSAT	3V
Channel Type	N
Maximum Power Dissipation Pd	32W

Key Features

Features a 38-pin DIP package type for surface mounting.
Maximum power dissipation rating is 32 watts.
Supports continuous operation in temperatures ranging from -40°C to 150°C.
Includes a maximum collector emitter saturation voltage of 3 volts for efficient switching.
Compliance with UL1557 standards ensures reliability and safety.
Designed to drive permanent magnet synchronous motors, brushless DC motors, and AC asynchronous motors.
Equipped with six integrated IGBTs and a high-voltage driver stage.
Offers cross-conduction protection and an ITRIP input to safely shut down all IGBTs.

Product Description

onsemi NFAQ0860L33T is a fully integrated inverter power stage module featuring a high-voltage driver, six insulated-gate bipolar transistors (IGBTs), and a thermistor. This intelligent power module is specifically designed to handle high-voltage and current demands with a continuous collector current of 8 A and a maximum collector emitter voltage of 600 V.

It comes in a 38-pin DIP package for surface mounting, allowing easy integration into power electronics designs. The module can dissipate up to 32 watts and is rated to operate within a broad temperature range extending from -40°C to 150°C, making it robust for industrial environments.

The device includes protective features such as cross-conduction protection and an ITRIP input to quickly disable all IGBTs, enhancing system safety. The maximum collector emitter saturation voltage is 3 V, improving efficiency during switching operations.

Typical applications include driving permanent magnet synchronous motors (PMSM), brushless DC (BLDC) motors, and AC asynchronous motors in industrial and automotive electronics. The design compliance with UL1557 assures adherence to stringent safety standards.

38-pin DIP surface mount package ensures compatibility with standard PCB layouts. High maximum power dissipation supports demanding power applications. Wide operating temperature range enables use in harsh environments. Integrated IGBTs and driver simplify inverter power stage design.

Cross-conduction protection enhances operational reliability. ITRIP input provides effective fault shutdown capability. UL1557 standard compliance assures safety and quality. Ideal for motor drive control in industrial and electronic systems.

This intelligent power module is part of onsemi’s NFAQ0860L33T series and represents a reliable solution for power management in motor controllers and power conversion systems. Explore more onsem i NFAQ0860L33T products and related Discrete Semiconductors on EnvMart for advanced electronic component needs.
