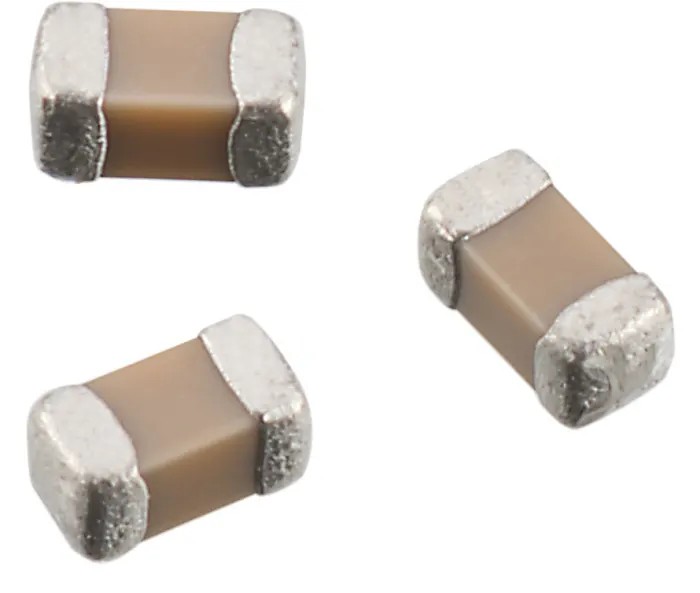

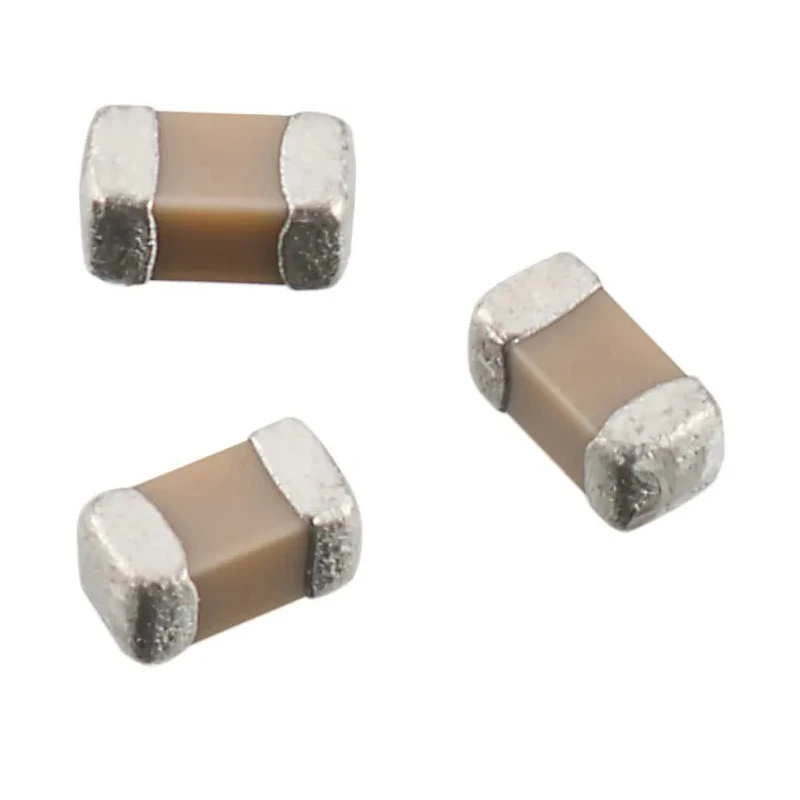

Wurth Elektronik 10 nF Multilayer Ceramic Capacitor 500V dc ±10% X7R Surface Mount WCAP-CSST 885382208009
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V dc |
| Capacitance Range | 220 pF - 2.2 μF |
| Brand | Wurth Elektronik |
| Operating Temperature | -55 °C up to + 125 °C |
| Height | 1.25mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSST |
| Temperature Coefficient | ± 15 % |
| Termination | Ag-Polymer/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 16 V(DC) - 2 kV(DC) |
| Sizes | 0603 / 0805 / 1206 / 1210 |
Key Features
- This capacitor features a 1206 package size and a series designation WCAP-CSST.
- It supports operating temperatures ranging from -55°C to 125°C.
- The component is designed for SMT-chip mounting with Ag-Polymer/Ni/Sn terminations.
- It provides excellent mechanical stress absorption suited for power supply and lighting applications.
- The capacitor complies with RoHS standards and is manufactured in Taiwan, Province of China.
- The dielectric material X7R offers stable capacitance within ±15% temperature coefficient.
- Recommended soldering methods include reflow soldering suitable for surface-mounted devices.
Product Description
Wurth Elektronik 885382208009 is a 10 nF Multilayer Ceramic Capacitor designed for use in high reliability surface mount applications. It operates at a voltage rating of 500V dc with a tolerance of ±10%. The capacitor employs X7R dielectric to ensure reliable performance over a temperature range of -55°C to 125°C, making it suitable for demanding industrial, power supply, and lighting applications.
The component arrives in a 1206 package size with dimensions of 3.2 mm length, 1.6 mm width, and 1.25 mm height. Surface mount technology (SMT) chip mounting style and Ag-Polymer/Ni/Sn termination allow optimal soldering using reflow soldering processes. This capacitor belongs to the WCAP-CSST series, known for mechanical stress absorption to improve reliability in challenging environments.
Manufactured in Taiwan, Province of China, this capacitor complies with RoHS standards ensuring environmentally friendly production. The temperature coefficient is specified at ±15%, supporting stable capacitance over the operating temperature span.
This capacitor features a 10 nF capacitance with 500V dc voltage rating. Package size is 1206 with SMT chip mounting. X7R dielectric ensures stable capacitance over temperature variations. Operating temperature range is -55°C to 125°C.
Recommended soldering: reflow soldering for surface mount. Ag-Polymer/Ni/Sn terminations for reliable electrical connections. RoHS compliant and manufactured in Taiwan, Province of China.
This Multilayer Ceramic Capacitor series is suited for automotive systems, power supplies, and lighting industries where high mechanical stress resistance and reliability are essential. It supports applications requiring stable capacitance and operation under wide temperature ranges.
Explore more Capacitors and electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 10 nF.
It has a voltage rating of 500V dc.
The operating temperature range is from -55°C to 125°C.
This capacitor uses X7R dielectric material, which offers stable capacitance within a temperature coefficient of ±15%.
The capacitor has dimensions of 3.2 mm in length, 1.6 mm in width, and 1.25 mm in height.
It uses a surface mount technology (SMT) chip mounting style.
It features Ag-Polymer/Ni/Sn terminations for reliable electrical connections.
The recommended soldering method is reflow soldering, suitable for surface-mounted devices.
Yes, this capacitor complies with RoHS standards, ensuring environmentally friendly production.
This capacitor belongs to the WCAP-CSST series, known for its mechanical stress absorption capabilities.
It is suitable for automotive systems, power supplies, and lighting applications where high reliability is essential.
The tolerance level of this capacitor is ±10%.
