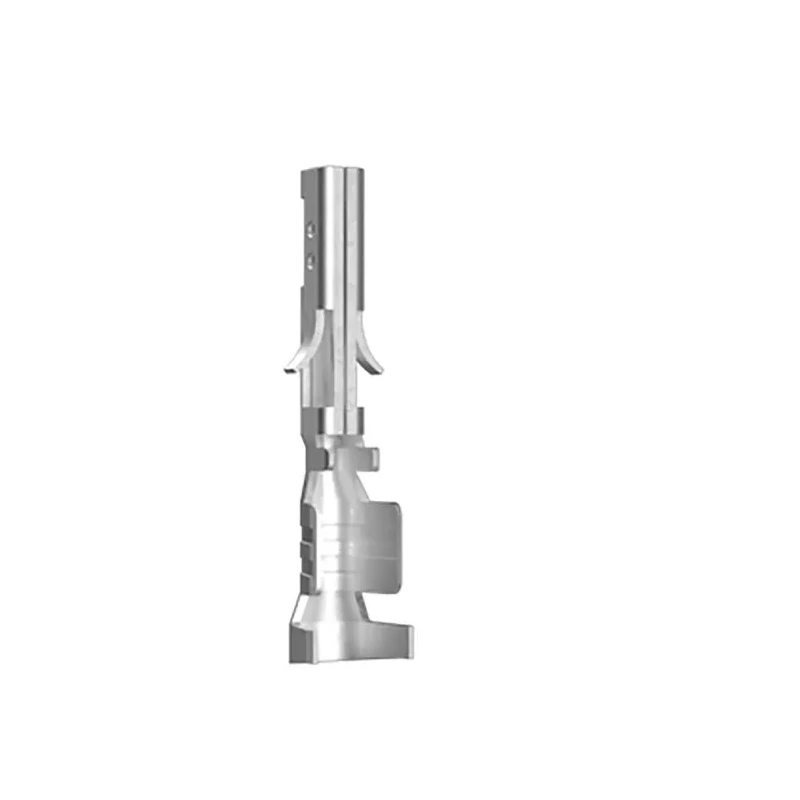

Amphenol Communications Solutions Female Crimp Terminal, Gold Plated, Phosphor Bronze, Solder Type, 5A, 10127718-002PLF

Amphenol Communications Solutions presents the 10127718-002PLF Female Crimp Terminal, designed for wire-to-board connector applications where high reliability and performance are essential. This terminal features gold-plated contacts, offering superior conductivity and resistance to corrosion in industrial and electronic environments. The use of phosphor bronze as a contact material ensures long-term durability and high mechanical strength.

Supporting a wire size range from 30AWG up to 20AWG, this crimp terminal offers flexibility in electronic component assembly, making it suitable for varied signal and power connections. The solder termination type allows for easy, secure installation within wire-to-board connector systems, streamlining manufacturing processes and enhancing connection stability.

The terminal is engineered to handle up to 5A current, making it ideal for moderate power requirements. Its maximum contact resistance is limited to 20 milliohms, ensuring reliable, low-loss electrical transmission. Operating temperature capabilities from -40°C to 105°C enable this terminal to perform consistently in harsh industrial, laboratory, and commercial operating environments.

Additional design features include fully isolated terminals to prevent accidental damage during handling, installation, or operation. Polarized mating geometry eliminates mismatching and enhances assembly safety, while blind mating interface options support dual row, vertical, through-hole connector configurations. High retention force and positive locking mechanisms deliver robust mechanical reliability.

This gold-plated terminal meets internationally recognized standards, including IEC 60695-2-12, IEC 60335-1, IEC 60695-2-13, and UL approvals, as well as RoHS compliance for environmental safety. Applications may include industrial control panels, PCB assembly, laboratory instrumentation, HVAC equipment, and commercial electronics.

Gold plated contacts ensure reliable conductivity and corrosion resistance. Supports wire sizes from 30AWG minimum to 20AWG maximum for versatile applications. Phosphor bronze contact material provides enhanced durability and mechanical performance.

Solder termination type suitable for secure wire-to-board connector assembly. Designed for 5A maximum current for robust electrical performance. Maximum contact resistance of 20mΩ ensures low-loss connections. Operating temperature range from -40°C to 105°C supports demanding environments.

Fully isolated terminals prevent potential damage during installation and operation. Polarized mating geometry helps prevent mismatched assembly and ensures secure connection. Explore more connectors and Crimp Terminals from Amphenol Communications Solutions and browse related industrial electronics at EnvMart.
