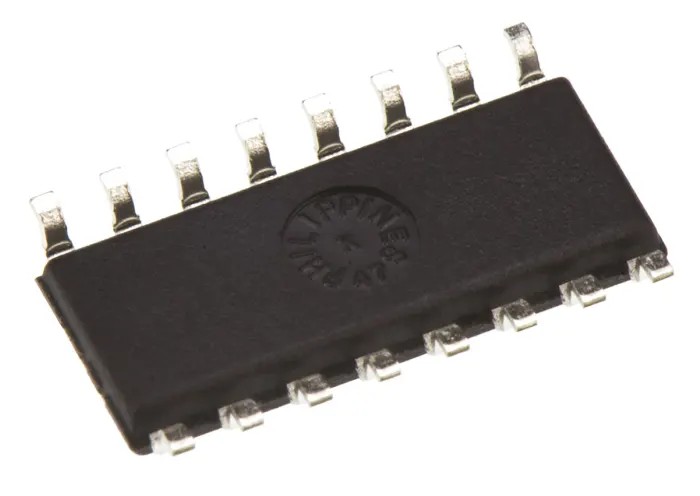

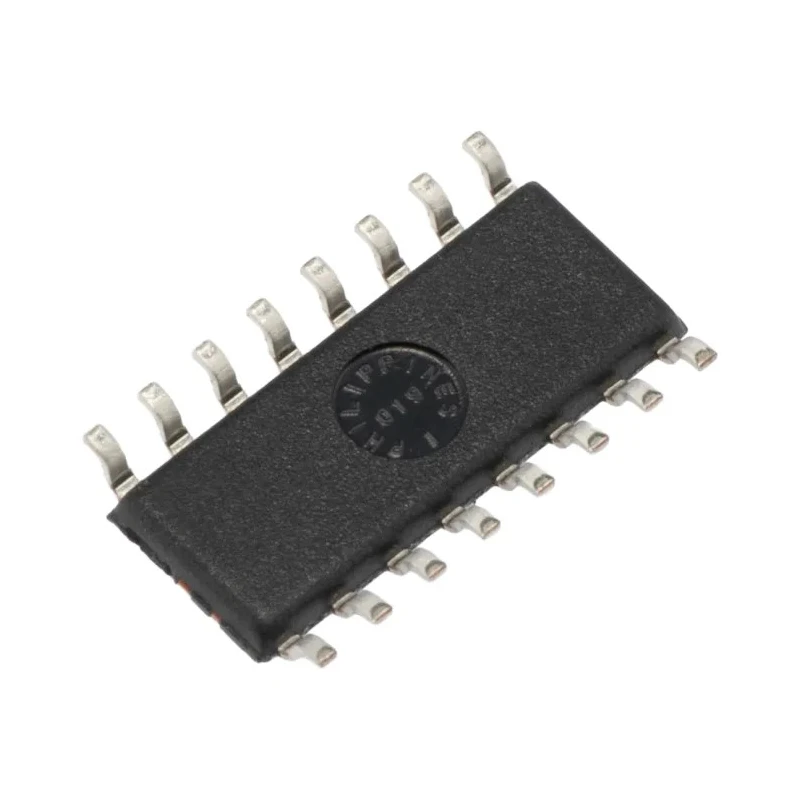

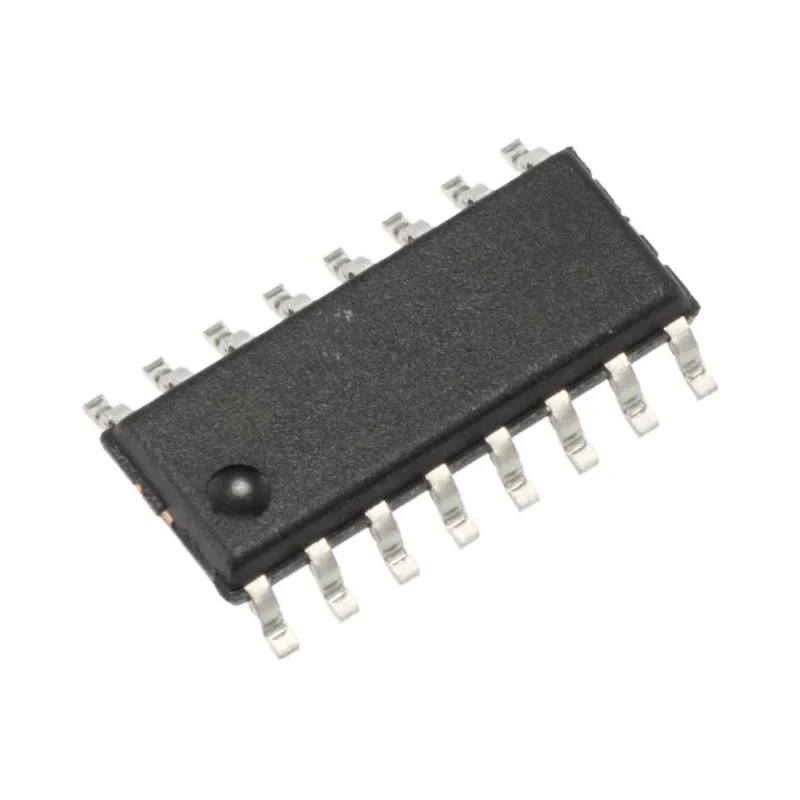

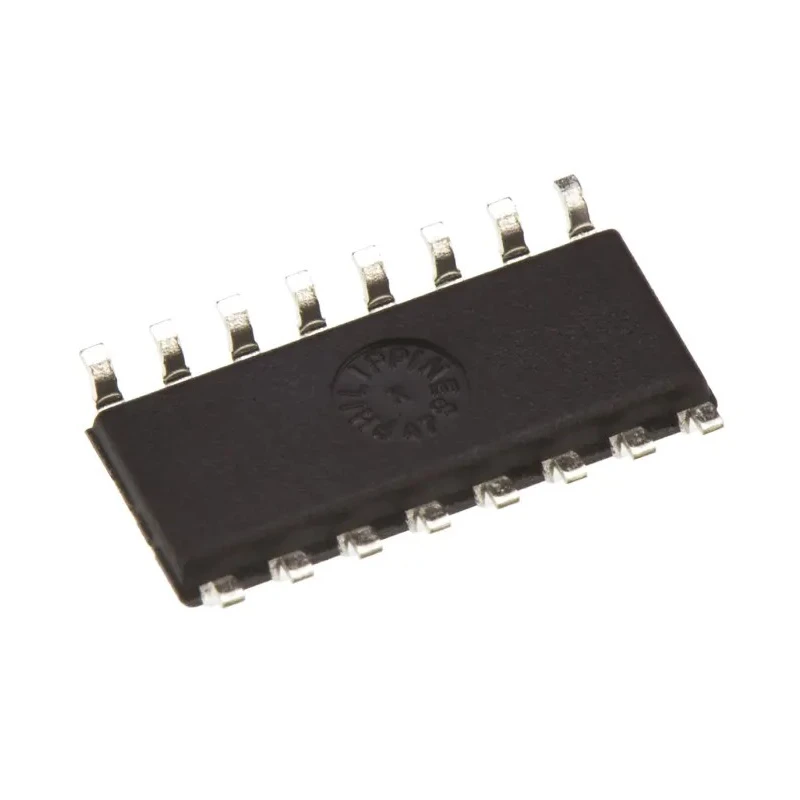

Vishay Multiplexer Dual 4x1 CMOS SOIC 16-Pin DG409LEDY-GE3
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG409LEDY-GE3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG409LE |
| Configuration | Dual 4 x 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 16V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 41Ω |
Key Features
- Dual 4x1 multiplexer configuration reduces external circuitry needs.
- CMOS logic family with TTL compatibility allows flexible interfacing.
- Operates from 3V to 16V supply voltage for broad application use.
- Maximum on-state resistance of 41 Ohms minimizes signal loss.
- 16-pin SOIC surface-mount package supports compact PCB integration.
- Supports operating temperatures from -40°C to 85°C for reliable performance.
- Two elements per chip efficiently expand analogue routing capacity.
- RoHS compliant for environmentally focused designs.
Product Description
Vishay DG409LEDY-GE3 Dual 4x1 CMOS Multiplexer is an advanced integrated circuit providing efficient switching for both analogue and digital signals. Designed for surface-mount assembly, it fits industry-standard SOIC 16-pin packages, enabling high-density PCB layouts.
With two independent switching elements, each supporting a 4-to-1 selection topology, the DG409LEDY-GE3 allows designers to route multiple signals with minimal additional routing components. The multiplexer operates across a supply voltage range of 3V to 16V, accommodating various logic and analogue voltage systems.
This device is compatible with CMOS and TTL logic families, permitting direct interfacing with microcontrollers and signal processors without extra level translation. Its maximum on-state resistance of 41 Ohms ensures minimal signal loss, preserving integrity even in precision applications.
Dual 4x1 configuration reduces board complexity. CMOS/TTL compatibility enables use in mixed-voltage systems. Wide operating temperature range (-40°C to 85°C) suits industrial and laboratory environments. Compact 16-pin SOIC package facilitates automated PCB manufacturing.
Ideal for sensor input multiplexing, test and measurement signal selection, and audio channel switching.
The Vishay DG409LEDY-GE3 is RoHS compliant, making it suitable for applications where environmental restrictions apply. While not specified for automotive standards, it can replace existing switches in non-automotive designs needing reliability and efficiency.
This multiplexer is commonly used in industrial, laboratory, and commercial projects, including sensor arrays, instrumentation panels, and compact electronics requiring robust signal routing. For designers seeking versatile, compact signal selection hardware, the DG409LEDY-GE3 offers dependability and ease of integration.
Browse more Multiplexer & Demultiplexer ICs from Vishay and other brands on EnvMart.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates across a supply voltage range of 3V to 16V, accommodating various logic and analogue voltage systems.
The maximum on-state resistance is 41 Ohms, which helps minimize signal loss during operation.
The dimensions of this unit are 10mm in length, 4mm in width, and 1.55mm in height.
It is packaged in a 16-pin SOIC surface-mount package, facilitating compact PCB integration.
The device is compatible with both CMOS and TTL logic families, allowing for flexible interfacing with microcontrollers and signal processors.
This multiplexer supports an operating temperature range from -40°C to 85°C, suitable for industrial and laboratory environments.
This model features two independent switching elements per chip, each supporting a 4-to-1 selection topology.
It is ideal for sensor input multiplexing, test and measurement signal selection, and audio channel switching.
Yes, this multiplexer is RoHS compliant, making it suitable for applications with environmental restrictions.
The configuration of this unit is a Dual 4 x 1 multiplexer, which reduces the need for external circuitry.
This model uses a surface mount type, which is standard for high-density PCB layouts.
It belongs to the DG409LE series of multiplexers, which are designed for efficient signal routing.
