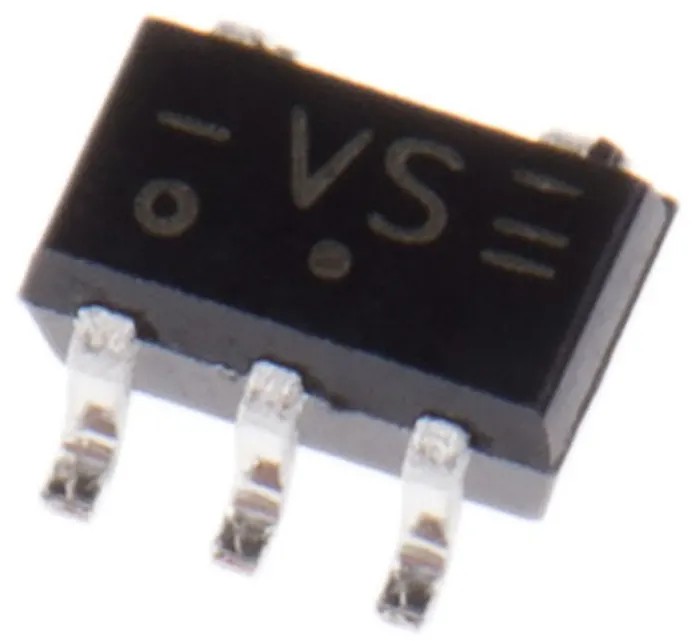

Nexperia Low-Voltage CMOS Multiplexer Single SPST, Surface Mount, TSSOP-5, 74LVC1G66GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Low-Voltage CMOS Multiplexer Single SPST, Surface Mount, TSSOP-5, 74LVC1G66GW,125

Name: Nexperia Low-Voltage CMOS Multiplexer Single SPST, Surface Mount, TSSOP-5, 74LVC1G66GW,125
Brand: Nexperia
SKU: 87973
Price: 0.1 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.25mm
Model	74LVC1G66GW,125
Width	1.35mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	CMOS/TTL
Series	74LVC1G66
Configuration	Single SPST
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Minimum Supply Voltage	1.65V
Multiplexer/Demultiplexer	Multiplexer
Maximum On State Resistance	195Ω

Key Features

Single CMOS multiplexer with SPST configuration for flexible digital signal switching.
Operates from 1.65V to 5.5V supply voltage for wide compatibility with modern logic circuits.
Surface mount TSSOP-5 package minimizes board space and supports automated assembly.
Maximum on-state resistance of 195 Ohm ensures reliable performance in signal routing.
Temperature range from -40°C to +125°C enables use in critical industrial and electronic systems.
Supports LVTTL/TTL logic input and LVCMOS output for interfacing versatility.

Product Description

The Nexperia 74LVC1G66GW,125 is a high-quality low-voltage CMOS multiplexer designed for efficient digital signal switching in advanced electronics and industrial logic applications. This device features a single SPST (Single Pole Single Throw) configuration, enabling straightforward control of digital signals with reliability and precision.

Engineered for surface mount installation, its TSSOP-5 package delivers a space-saving footprint ideal for densely packed PCBs and automated manufacturing processes. The multiplexer operates across a broad supply voltage range of 1.65V to 5.5V, making it compatible with both legacy and current generation logic families in industrial, commercial, and laboratory environments.

With a maximum on-state resistance of just 195 Ohm, the device ensures low signal loss and reliable routing in high-speed digital circuits. Its LVTTL/TTL input compatibility and LVCMOS output provide seamless interfacing with a wide variety of system architectures and controllers. The temperature rating from -40°C to 125°C guarantees stable operation in demanding environments such as manufacturing systems, test equipment, and embedded electronics.

The 74LVC1G66GW,125 is part of Nexperia's 74LVC family of single-gate, low-voltage CMOS logic ICs, designed for robust performance, reduced power consumption, and flexibility across applications. Users benefit from fast switching, automotive-grade reliability (when needed), and compliance with modern environmental and quality standards.

Applications include digital signal switching, logic level translation, programmable systems, sensor interfaces, industrial equipment, and PCB designs where minimal footprint and premium switching characteristics are essential. Suitable for use in automation, instrumentation, laboratory test setups, and embedded systems.
