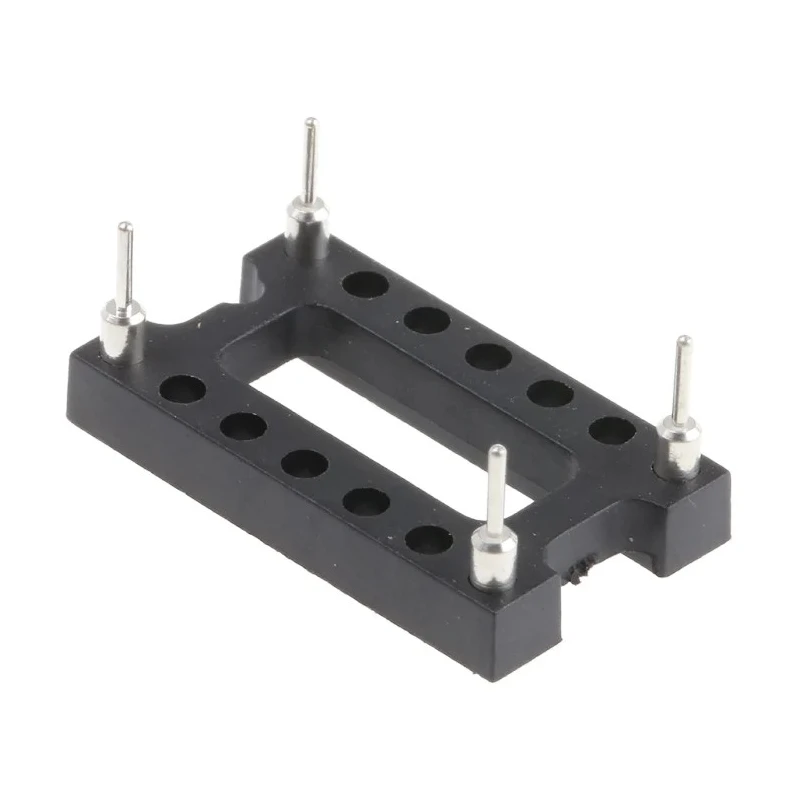

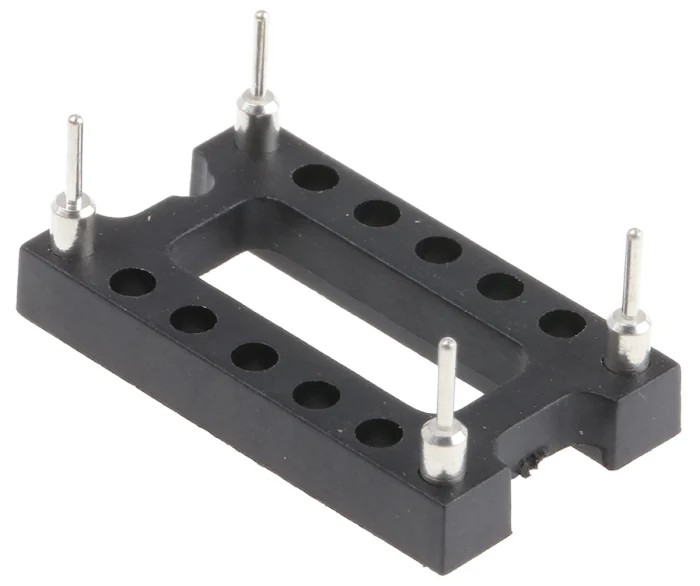

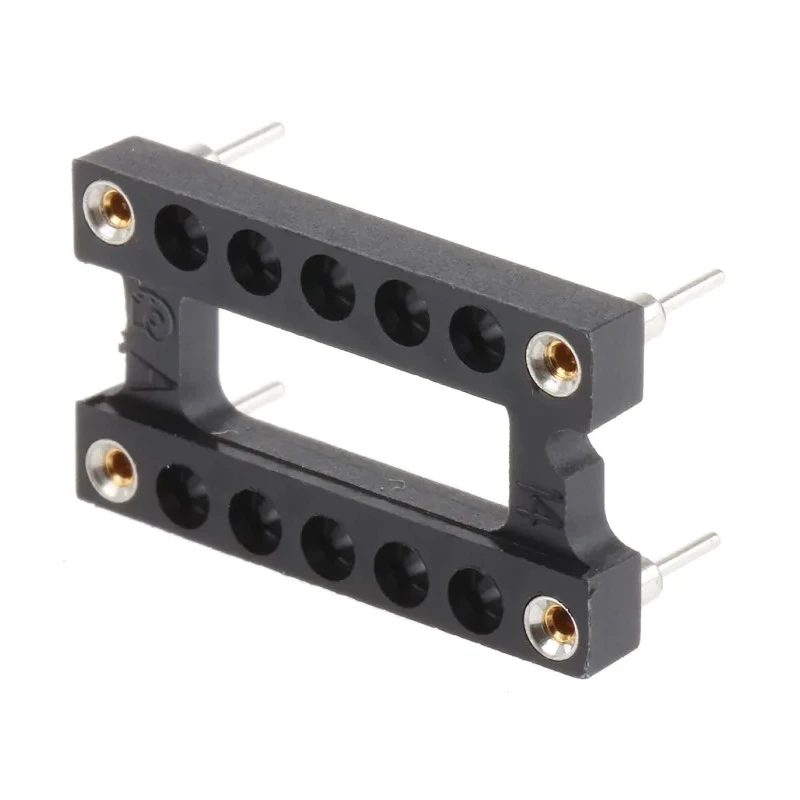

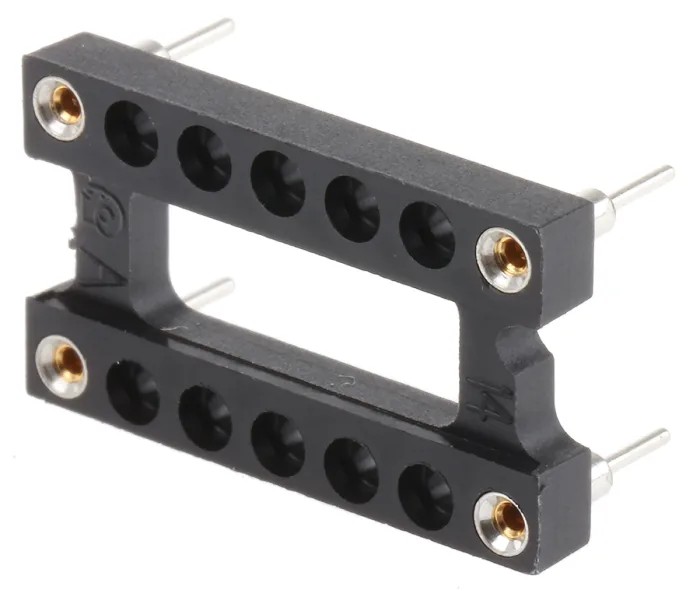

Aries Electronics 15.24 mm Pitch 14 Way DIL Through Hole Oscillator IC Socket 1107741

Aries Electronics 1107741 15.24 mm Pitch 14 Way DIL Through Hole Oscillator IC Socket is a high-quality connector designed specifically for oscillator IC packages. It features a dual inline (DIL) configuration with 14 contacts spaced at a 15.24 mm pitch, making it compatible with standard oscillator footprints.

The socket housing is made from black UL 94V-0 glass-filled nylon, providing excellent flame retardance and mechanical stability. The contact pins are composed of beryllium copper alloy with gold plating over nickel, ensuring reliable electrical conductivity and corrosion resistance over time.

Rated for 3A current and 1kV voltage, this oscillator IC socket supports demanding electronic applications. It is designed to mount through hole with solder termination for secure PCB attachment. The operating temperature range extends from -55°C to 105°C, suitable for industrial and commercial electronics environments.

This product includes a 4-fingered collet contact system offering precise insertion force (180 grams per pin) and stable withdrawal force (90 grams per pin), which ensures strong contact retention and minimal signal loss. Its machine insertable and stackable design facilitates efficient automated assembly and flexible board layouts.

Ideal for use in industrial electronics manufacturing, test instrumentation, and prototyping where oscillator modules require reliable and durable socket connections. Made in the United States, this Aries Electronics IC socket complies with quality expectations for professional electronic components.

Features a 14 contact count arranged in 2 rows. 15.24 mm pitch suitable for standard oscillator packages. Constructed from black UL 94V-0 glass-filled nylon housing for durability. Contacts made from beryllium copper alloy with gold over nickel plating for excellent conductivity.

Supports a current rating of 3A and voltage rating of 1kV. Designed for through hole mounting with solder termination. Operates reliably between -55°C to 105°C temperature range. Incorporates 4-fingered collet contact design ensuring secure connections.

Machine insertable and stackable for efficient PCB assembly. Manufactured in the United States ensuring quality standards. Explore more Aries Electronics products and IC Sockets available at EnvMart for your electronic component needs.
