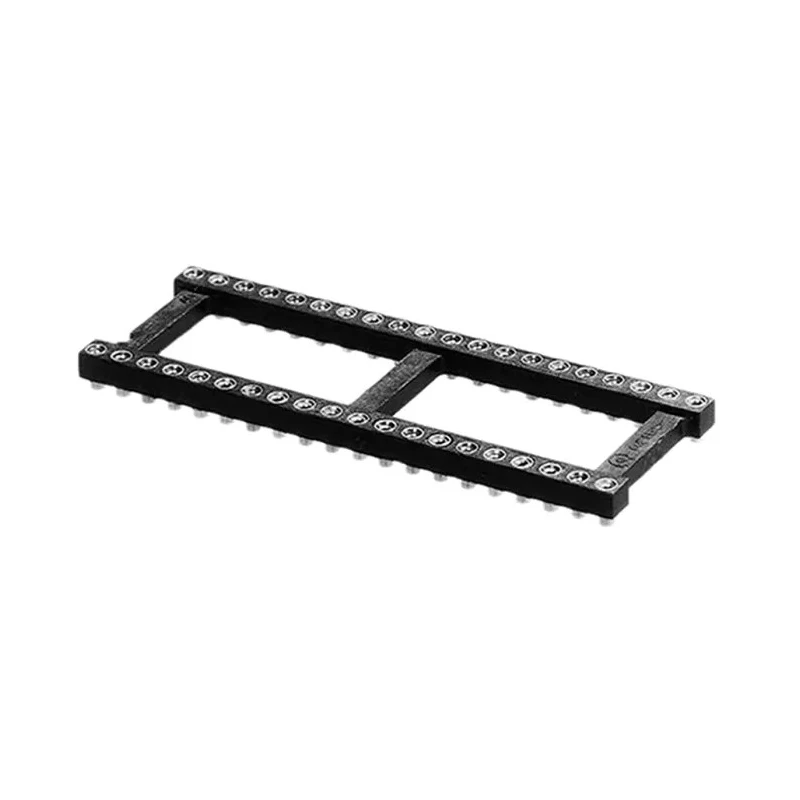

Aries Electronics DIL Socket 2.54 mm Pitch Vertical 28 Way Surface Standard Pin Open Frame 3A 28-6518-00

Free Delivery in India | Lowest Global Shipping Charges

Aries Electronics DIL Socket 2.54 mm Pitch Vertical 28 Way Surface Standard Pin Open Frame 3A 28-6518-00

Name: Aries Electronics DIL Socket 2.54 mm Pitch Vertical 28 Way Surface Standard Pin Open Frame 3A 28-6518-00
Brand: Aries Electronics
SKU: 218185
Price: 9.92 USD
Availability: InStock



Category DIL Socket Brand Aries Electronics Condition New

Specifications

Country of Origin	United States
Brand	Aries Electronics
Orientation	Vertical
Current	3A
Frame Type	Open Frame
Length	35.56mm
Depth	10.16mm
Width	3.71mm
Mount Type	Surface
Housing Material	Nylon
Contact Material	Beryllium Copper Alloy
Series	518
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	28
Pin Type	Standard
Row Width	15.24mm

Key Features

This socket features an open frame design optimizing board space utilization and cooling efficiency.
It has a standard pin type with gold over nickel contact plating for reliable connectivity.
The socket supports surface mounting with solder termination and vertical orientation.
Operating temperature ranges from -55°C to 105°C suitable for broad industrial applications.
The contact material is beryllium copper alloy ensuring durability and excellent electrical performance.
Compatible with leads between 0.015 and 0.025 mm diameter with suggested PCB pad size of 1.60 mm diameter.
Designed for high reliability with insertion force 180 g/pin and withdrawal force 90 g/pin.
Manufactured with black UL 94V-0 glass-filled nylon housing for flame resistance and ruggedness.

Product Description

Aries Electronics 28-6518-00 is a high-quality DIL socket designed for vertical mounting with 28 contact points and 2.54 mm pitch. Rated for a current of 3A, this surface mount open frame socket is ideal for use in electronic manufacturing industries requiring efficient space utilization and improved cooling on printed circuit boards.

The open frame collet socket construction allows compatibility with automated insertion equipment for streamlined production. Featuring a black UL 94V-0 glass-filled nylon housing and beryllium copper alloy contact material with gold over nickel plating, it assures excellent electrical conductivity and durability during usage.

With a compact footprint (35.56 mm length, 3.71 mm width, and 10.16 mm depth), it supports leads from 0.015 to 0.025 mm diameter and is designed for solder termination. Its robust thermal operating capability from -55°C to 105°C broadens its applicability across varied industrial environments.

This socket features an open frame design optimizing board space utilization and cooling efficiency. Standard pin type with gold over nickel contact plating enhances reliability. Vertical orientation and surface mount support efficient PCB layout.

Durable beryllium copper alloy contacts for stable electrical performance. Black UL 94V-0 glass-filled nylon housing for flame resistance and mechanical strength. Operating temperature range of -55°C to 105°C for versatile applications.

Compatible with automated insertion equipment for improved production efficiency. Insertion force 180 grams per pin and withdrawal force 90 grams per pin ensure secure connector engagement. Ideal for industrial electronics, manufacturing, automation, and PCB assembly.

This Aries Electronics 28-6518-00 DIL Socket is a reliable choice for engineers and manufacturers seeking high-performance connectors for circuit board applications. Browse EnvMart for more Aries Electronics components and related electronic connector solutions.
