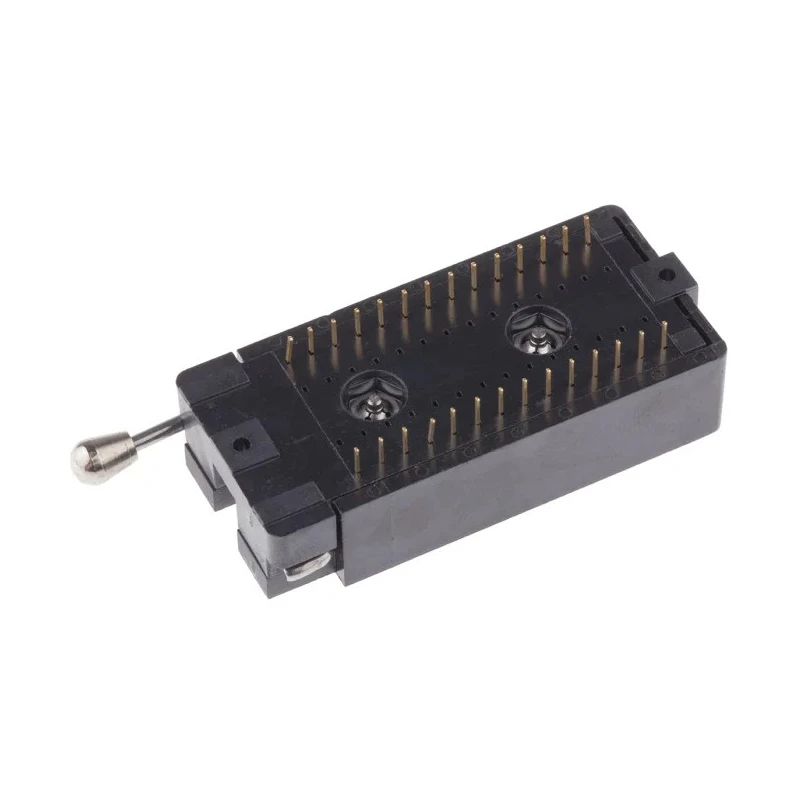

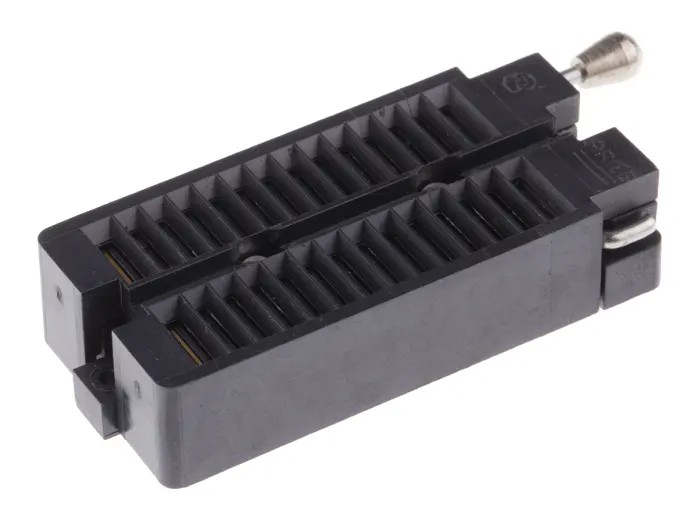

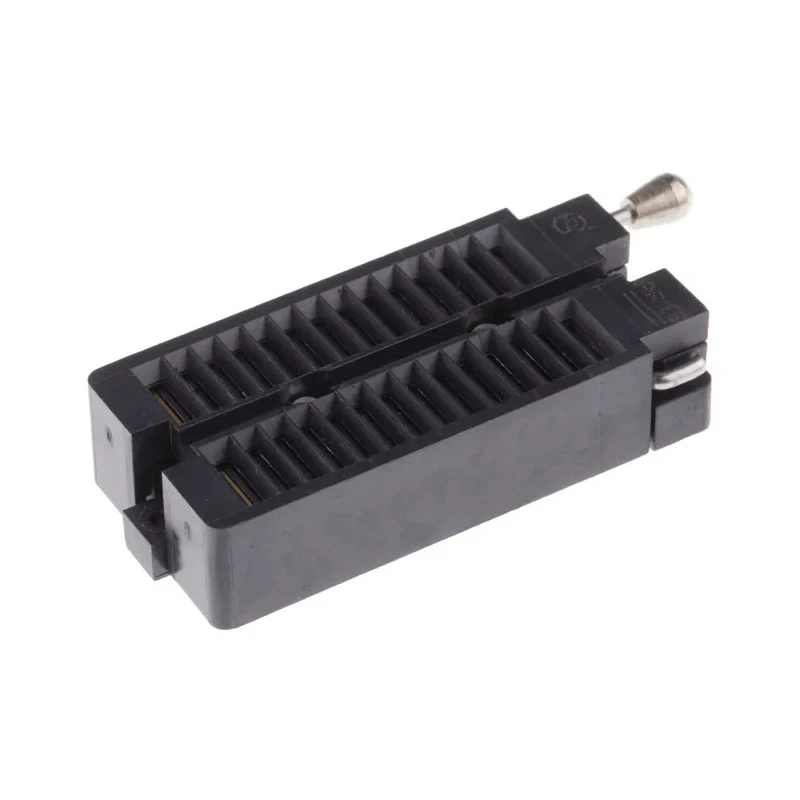

Aries Electronics 2.54 mm Pitch 28 Way DIP Through Hole Test IC Socket 28-6554-11

Aries Electronics 28-6554-11 28 Way DIP Through Hole Test IC Socket is a precision-engineered test socket designed for electronic testing applications requiring high reliability and durability. Operating at a pitch of 2.54 mm between pins, this socket accommodates 28 contacts laid out in two rows for comprehensive device testing functionality.

This test socket utilizes high-quality beryllium copper alloy contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance, critical for accurate signal transmission and mechanical endurance during repeated test cycles. The socket supports a maximum current of 1A and voltage rating of 1 kV, making it suitable for a wide range of electronic equipment testing scenarios.

The through-hole mounting design with straight orientation enables secure PCB integration and aligns with standard DIP device footprints. Its housing is constructed from UL 94V-0 rated flame-retardant polyphenylene sulphide (PPS), providing thermal stability and resilience against industrial environments. Operating temperature ranges from -65°C to 150°C allow this socket to function reliably in harsh conditions.

A stainless steel handle ensures mechanical strength and smooth operation through a lifecycle of 25,000 to 50,000 insertions and removals, making it ideal for frequent testing in laboratory, manufacturing, and industrial electronics assembly environments.

Additional features include a row pitch of 15.24 mm allowing compatibility with devices spaced on standard DIP centers. The solder termination type ensures a solid and permanent connection to the PCB, preventing signal loss or mechanical failure during operation.

Produced in the United States, this Aries Electronics IC test socket complies with standard manufacturing and material quality controls, ensuring reliability in demanding applications.

This component is well suited for use in industrial electronics testing, quality control labs, and manufacturing test setups where zero-insertion-force and high cycle durability are required for testing DIP ICs.

The socket features 28 contacts with a 2.54 mm pitch for precise device interfacing. Constructed with beryllium copper alloy contacts plated with gold over nickel for excellent conductivity and durability. Supports current up to 1A and withstands voltages up to 1 kV for robust operation.

Designed with a through-hole mounting type and a standard straight orientation for ease of PCB installation. Operates reliably across a temperature range of -65°C to 150°C with a housing of flame-retardant polyphenylene sulphide (PPS).

Socket handle made from stainless steel ensures durability and mechanical strength during use. Offers a high life cycle expectancy between 25,000 to 50,000 cycles, ensuring extended usage. Row pitch of 15.24 mm with 2 rows accommodates a variety of DIP devices securely.

Termination type is solder, suitable for permanent PCB attachment. Manufactured in the United States adhering to industrial standards. Explore the Aries Electronics product range for more advanced IC Sockets and connectors at EnvMart to support your manufacturing and testing requirements.
