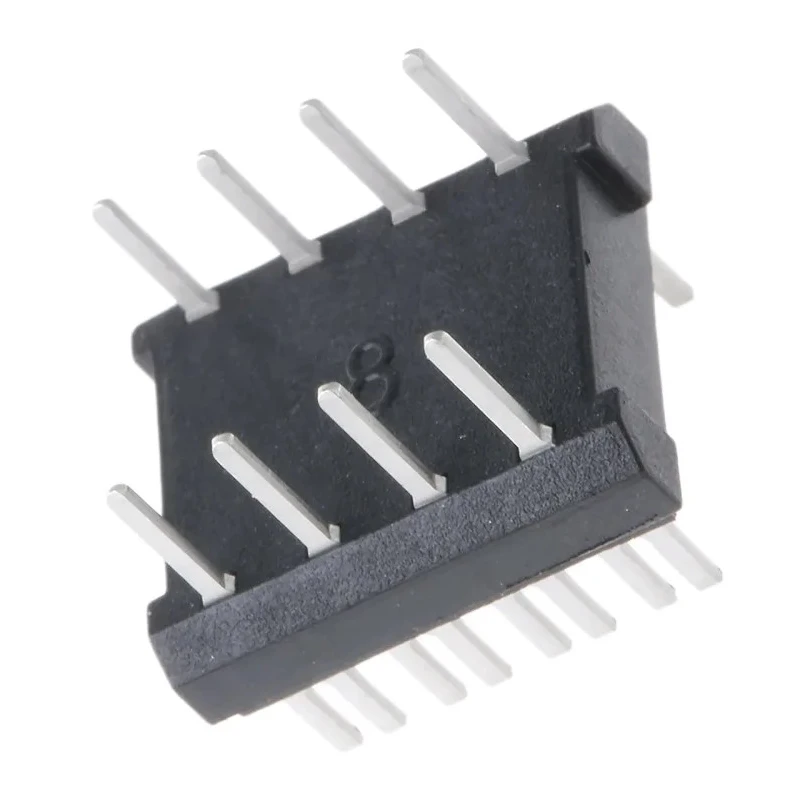

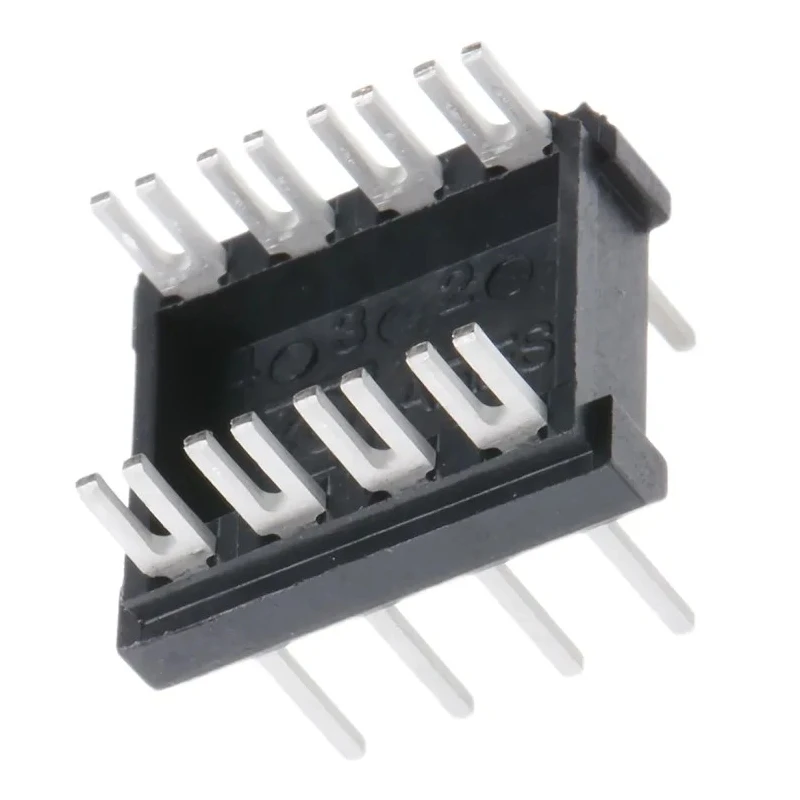

Aries Electronics Through Hole Mount DIL Header 8 Way, 2.54 mm Pitch, Brass Contacts Tin over Nickel Plating 08-600-10

Aries Electronics 08-600-10 Through Hole Mount DIL Header 8 Way, 2.54 mm Pitch, is designed to provide stable and efficient electrical connections for electronic assemblies requiring through hole mounting.

This product features brass contacts plated with tin over nickel to ensure optimal conductivity and resistance against oxidation and corrosion. The header's housing is made from black UL 94 V-0 rated nylon material, offering high durability and flame retardance under operating temperatures up to 105°C.

The component contains 8 contacts arranged in 2 rows with a pitch spacing of 2.54 mm, making it suitable for a wide range of PCB and electronic component applications. Each contact is coined brass, half hard, which facilitates secure soldered connections with leads up to 0.64 mm diameter.

Typical uses include industrial electronics manufacturing, PCB mounting, and other electronic component interconnections that require robust mechanical performance and stable electrical contact.

The header accommodates a current load of 2A, ideal for low to moderate power applications. Constructed for through hole mounting with solder termination ensures easy and reliable integration into printed circuit boards.

The compact width of 5.97 mm supports efficient usage of PCB space. The UL 94 V-0 nylon housing ensures compliance with flame retardant standards enhancing safety. Made in the United States, the product meets strict quality and manufacturing standards.

Packaged ready for insertion, this DIL Header improves production efficiency in assembly lines. It is part of Aries Electronics Series 600 DIP headers, which are also available with snap-on protective covers and various sizes for versatile configurations.
