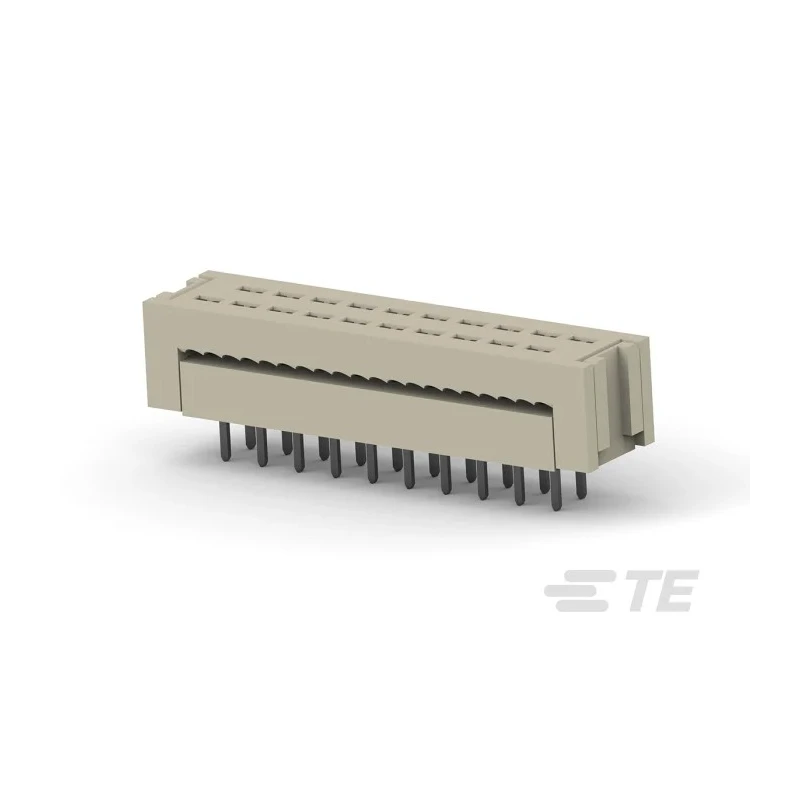

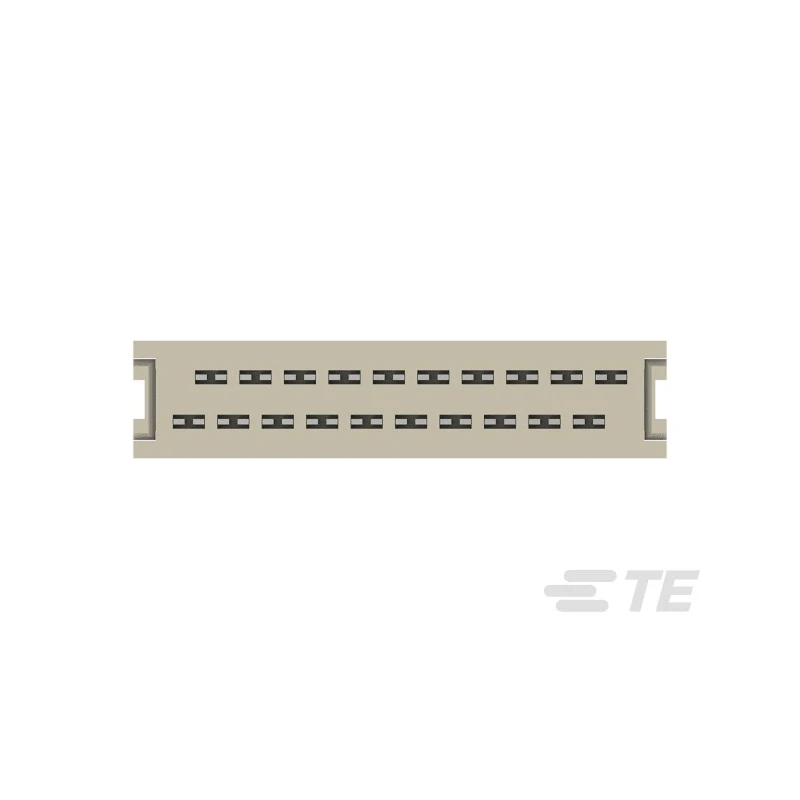

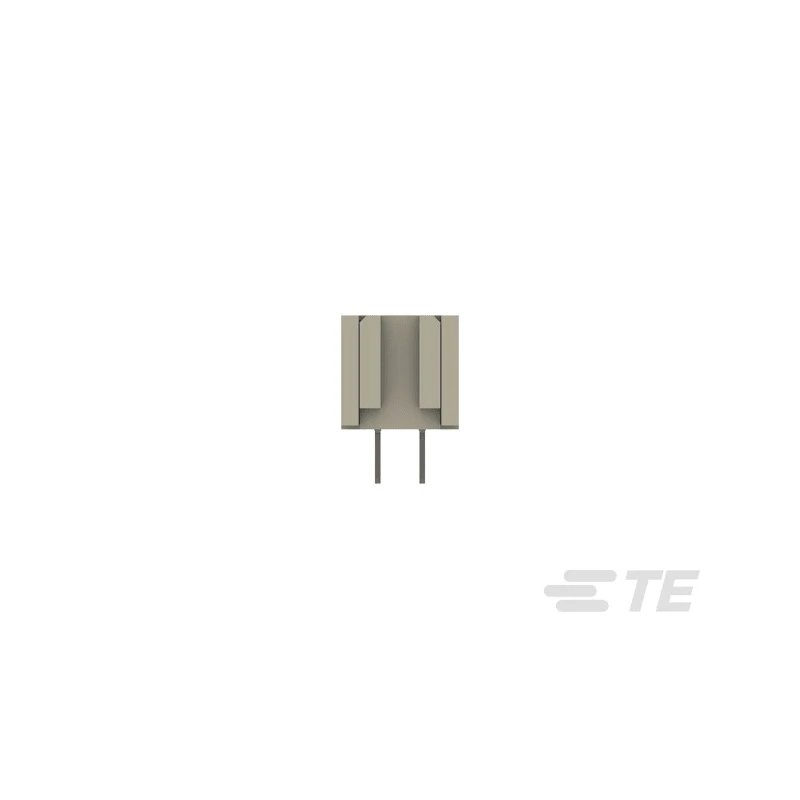

TE Connectivity 2.54 mm Pitch 20 Way Through Hole Mount DIL Header, Tin Plated, 1A 2-216093-0

TE Connectivity 2-216093-0 is a precision engineered DIL Header connector assembly designed for wire-to-board applications requiring reliable signal connections. This 20 way connector features a 2.54 mm pitch and is shrouded for added protection against contact damage and short circuits.

The contacts are fabricated from phosphor bronze and plated with tin to ensure consistent conductivity and corrosion resistance. Rated for a maximum continuous current of 1 ampere and voltage of 250V AC, this connector is suitable for a variety of low power industrial and electronic applications.

The housing material is thermoplastic polyester providing excellent mechanical strength and resistance to environmental stress. This connector uses through hole mounting and standard solder termination for secure PCB attachment. It has 2 rows of contacts spaced at a 2.54 mm row-to-row pitch, making it compatible with standard DIL layouts and sockets.

Operating temperature range from -65°C to 105°C enables use in harsh industrial and commercial environments. The overall connector length of 30.48 mm and width of 6.7 mm fits typical PCB connector footprints with vertical insertion orientation.

Commonly used in signal circuit applications, this header is well suited for telecommunications, control systems, instrumentation, and computing equipment where durable board connectors are essential.

Shrouded design protects contacts and enhances durability. Phosphor bronze contacts with tin plating provide excellent electrical properties. Through hole solder mount for reliable PCB connection. Wide operating temperature range supports industrial use cases.

Compact dimensions suitable for dense PCB layouts. Standard 2.54 mm pitch compatible with many socket types. Vertical board mount orientation simplifies assembly. Rated for 1A current and 250V AC voltage. This model 2-216093-0 DIL Header offers dependable performance in demanding electronics assembly and industrial controls.
