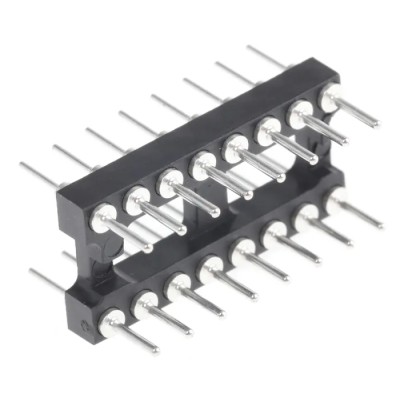

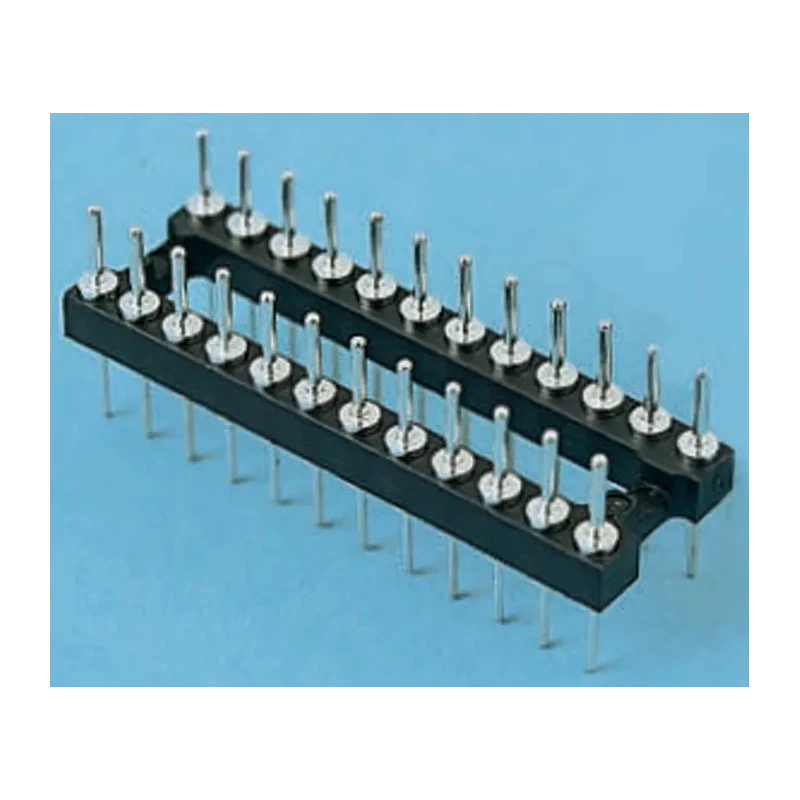

E-TEC Through Hole Mount DIL Header 2.54 mm Pitch, 2 Rows, Plastic Housing POS-318-S037-99

E-TEC POS-318-S037-99 Through Hole Mount DIL Header is engineered with precision for durable and reliable electrical connections on printed circuit boards (PCB). Its 2.54 mm pitch and two-row configuration make it ideal for interconnecting two PCBs. The unshrouded design allows for direct soldering or pairing with compatible DIL sockets to create plug and socket assemblies.

The housing is made from robust plastic polybutylene terephthalate, providing excellent mechanical strength and electrical insulation. The inner contacts are crafted from tin plated beryllium copper, delivering superior conductivity and corrosion resistance. Pins are standard type made from tin plated brass for optimal performance.

This header supports a current rating of 3 Amperes and offers a contact life rated for 100 mating cycles, ensuring long-term reliability in industrial and commercial applications. It exhibits an insulation resistance of 5 x 109 Ohms at 500 V DC, maintaining signal integrity and preventing leakage currents.

Designed to operate across ambient temperatures from -65°C to +175°C, this header meets stringent UL 94 V-0 flammability standards, assuring safety in demanding environments. Unshrouded design suitable for direct PCB soldering or use with DIL sockets.

Plastic polybutylene terephthalate housing for mechanical protection. Tin plated beryllium copper inner contacts deliver excellent signal transmission. Tin plated brass standard pins ensure reliable electrical connection.

Current rating of 3 Amperes and 100 mechanical mating cycles. High insulation resistance minimizes electrical losses. Wide operating temperature range from -65°C to +175°C. Meets UL 94 V-0 flammability standard for enhanced safety.

Compact dimensions of 22.8 mm length, 8.15 mm width, and 7.62 mm row pitch.

This product is highly suitable for use in electronics manufacturing, industrial control systems, instrumentation, HVAC equipment, and communication devices where reliable PCB interconnections are critical. Explore the extensive range of connectors and headers compatible with E-TEC POS series in categories tailored for electronics and electrical components on EnvMart.
