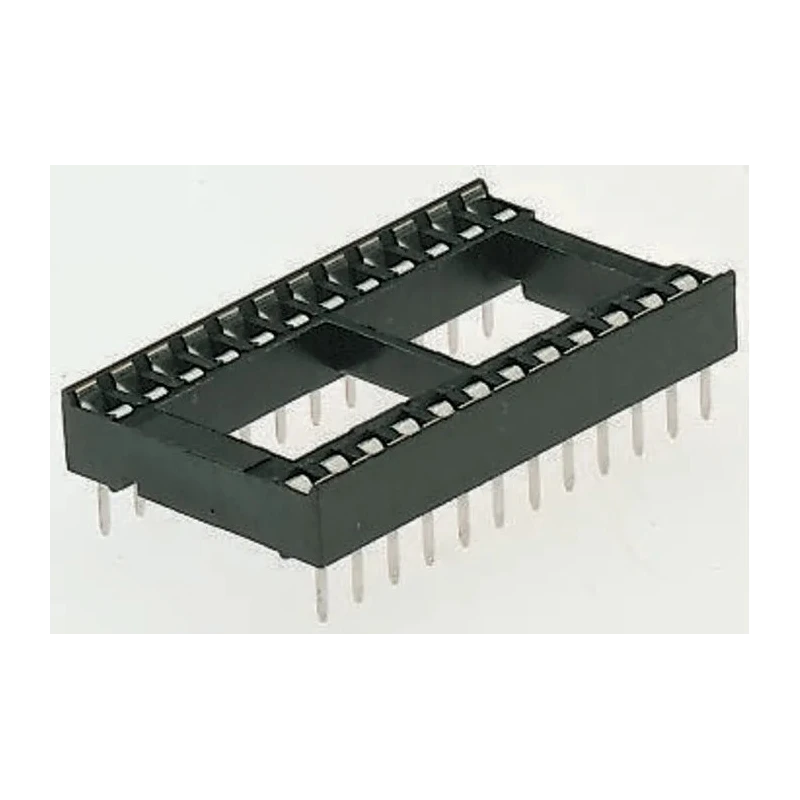

E-TEC DIL Socket 40 Contacts 2.54 mm Pitch Vertical Mount Through Hole Stamped Pin Open Frame 100V 1A LOC-640-S051-99

E-TEC LOC-640-S051-99 DIL Socket is a high-quality electronic component featuring 40 contacts with a 2.54 mm pitch and vertical mount style. It is designed for through hole applications and supports a current rating of 1 ampere and voltage rating of 100 volts, making it suitable for various industrial and electronic assembly tasks.

This socket uses stamped pins and an open frame design that allows for effective solder termination and ease of integration into printed circuit boards. The contacts are made with beryllium copper alloy and plated with tin, ensuring high conductivity and resistance to wear. Its polybutylene terephthalate housing provides excellent insulation and mechanical durability.

With a maximum operating temperature of 125°C, this component is reliably suited for harsh industrial and laboratory environments. The double loop PCB contacts deliver strong contact pressure to maintain connection integrity during thermal cycling and mechanical stresses.

The precise dimensions of length 50.67 mm, width 5.01 mm, depth 17.7 mm, and a row width of 15.24 mm allow for accurate PCB design and integration. The vertical orientation and compatibility with automatic insertion equipment make this socket a preferred choice for mass production setups in electronics manufacturing.

This socket supports a current rating of 1 ampere for reliable electrical connections. Constructed with stamped pins and an open frame for easy assembly and maintenance. Contact plating is tin over beryllium copper alloy for durability and quality conductivity.

The socket features a vertical orientation and double loop PCB contacts for high contact pressure. Designed for automatic insertion facilitating efficient manufacturing processes. Polybutylene terephthalate housing material provides robust insulation and mechanical strength.

Operating temperature rating is up to 125 degrees Celsius, suitable for demanding environments. Dimensions are length 50.67 mm, width 5.01 mm, depth 17.7 mm with a row width of 15.24 mm. Ideal for industrial electronic, construction, and laboratory equipment requiring reliable IC socket connections.
