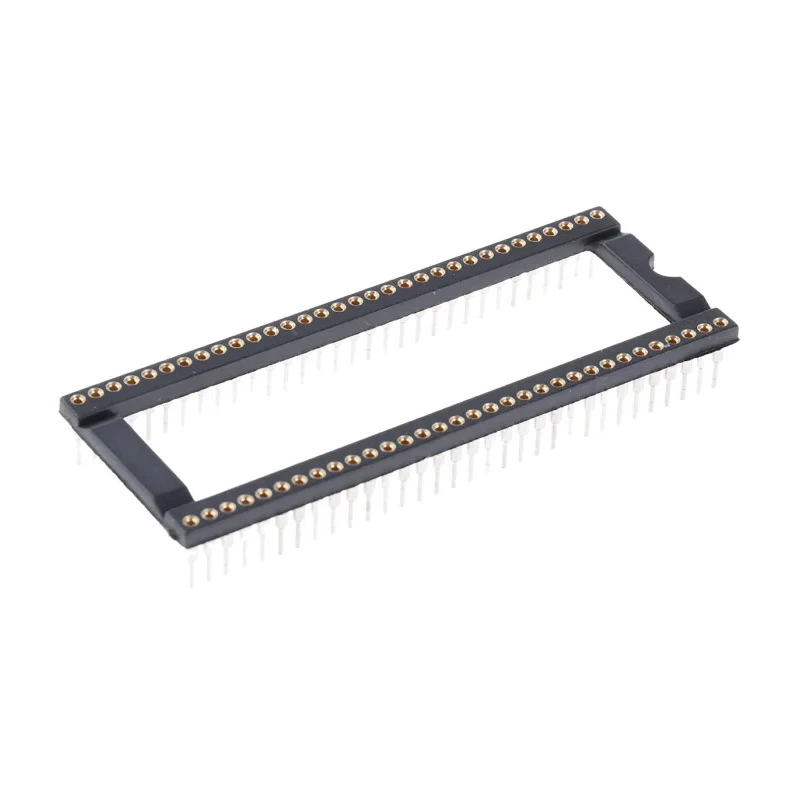

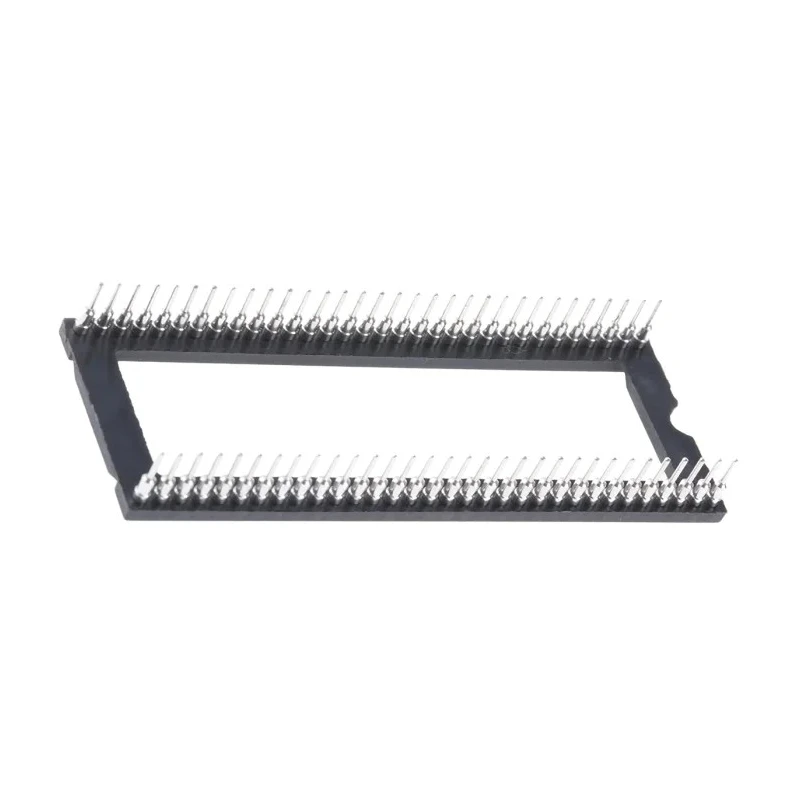

E-TEC 1.78 mm Pitch Vertical 64 Way Through Hole Turned Pin Open Frame DIL Socket 3A SDS-232-S075-95
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | E-TEC |
| Orientation | Vertical |
| Current | 3A |
| Temperature range | -65°C to +175°C |
| Frame Type | Open Frame |
| Length | 55.12mm |
| Model | SDS-232-S075-95 |
| Depth | 1.7mm |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Outer Shell Material | Tin plated brass |
| Pitch | 1.78mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 64 |
| Pin Type | Turned |
| Row Width | 19.05mm |
| Inner contact material | Gold plated beryllium copper |
| 64 way breakable shrink DIP socketBrand | E-TEC |
Key Features
- Features 64 contacts arranged in two rows for versatile circuit designs.
- Through hole mounting ensures strong mechanical and electrical connection.
- Constructed with beryllium copper alloy contacts plated with gold and tin for optimal conductivity.
- Open frame design facilitates easy inspection and soldering during assembly.
- Supports a current of up to 3 amperes at a maximum operating temperature of 125°C.

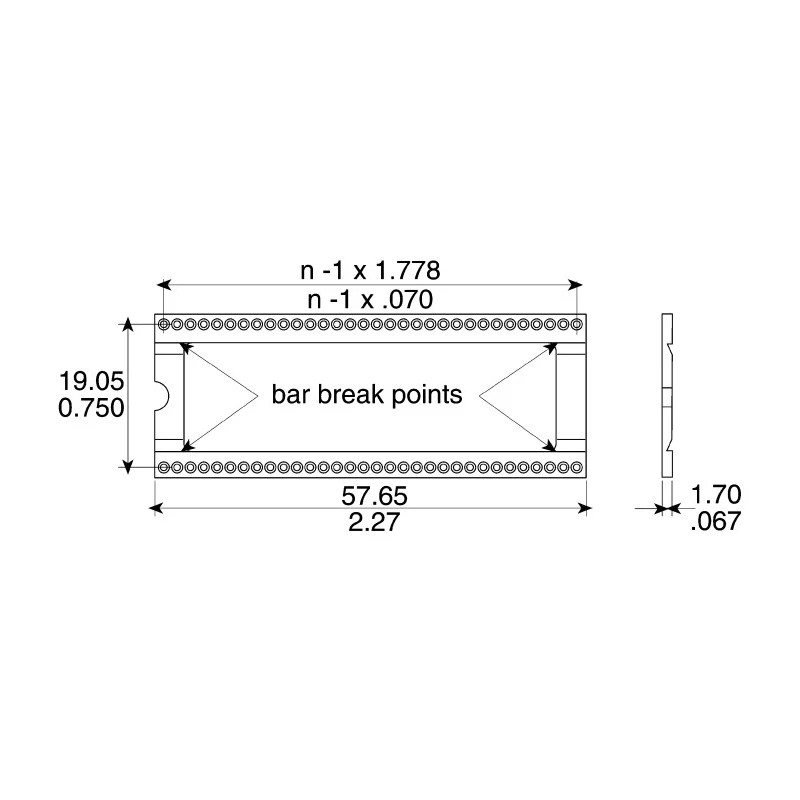

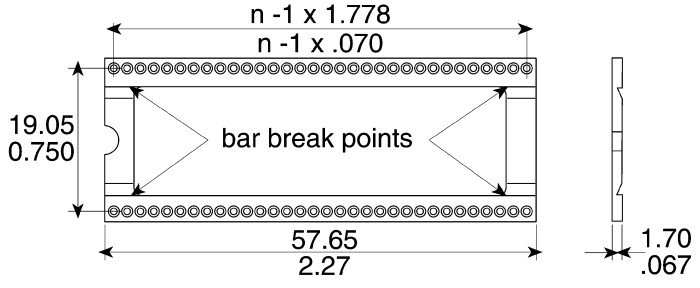

- Compatible with non-standard pitch packages using breakable shrink sections for customization.
- Vertical orientation with a 19.05 mm row width provides compact but effective layout.
- Termination is by soldering, enhancing assembly reliability and durability.
Product Description
E-TEC SDS-232-S075-95 is a high-quality Vertical 64 Way Through Hole Turned Pin Open Frame DIL Socket with a 1.78 mm pitch and a 3 ampere current rating. Designed for electronic components requiring robust connections, this socket provides precise and reliable contact for various industrial and commercial electronics applications.
It features 64 contacts arranged in two rows (32 per row) with breakable shrink sections allowing customization for single in-line (SIL) configurations. The socket's turned pins and open frame design simplify soldering and assembly processes, making it ideal for manufacturing, laboratory development, and repair contexts.
The housing is polymer-based offering durability and stability, while the internal contacts are gold-plated beryllium copper alloy delivering excellent conductivity and corrosion resistance. The external shell is tin-plated brass for added protection. Operating temperature ranges from -65°C to +175°C, ensuring excellent performance under various environmental conditions.
This product is especially suited for use in electronics manufacturing, PCB prototyping, testing rigs, and equipment servicing. Its vertical orientation and standard row width of 19.05 mm enable compact, efficient PCB layouts without sacrificing connection integrity.
Features 64 contact points for versatile circuit design applications. Through hole solder termination provides a secure and stable connection. Breakable shrink DIP socket allows flexibility for partial row use. Durable polymer housing with corrosion-resistant contact materials.
Resilient to high temperatures up to 125°C operating and 175°C peak. Gold and tin plating ensure long-term electrical performance and reliability.
Set a reliable standard for connectivity in industrial, laboratory, and electronics manufacturing applications with the E-TEC SDS-232-S075-95. Browse similar high-performance IC sockets and DIL adapters in EnvMart for enhanced electronic assembly options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The E-TEC SDS-232-S075-95 has a maximum current rating of 3 amperes.
This model features a contact pitch of 1.78 mm.
The operating temperature range for this socket is from -65°C to +175°C.
The contacts are made of beryllium copper alloy and are plated with gold and tin for optimal conductivity.
This DIL socket has a total of 64 contacts arranged in two rows of 32 each.
The termination type for this socket is solder, which enhances assembly reliability.
The E-TEC SDS-232-S075-95 is designed for vertical orientation.
The outer shell of this socket is made of tin-plated brass.
The row width for this model is 19.05 mm.
Yes, it is compatible with non-standard pitch packages using breakable shrink sections for customization.
The length of this DIL socket is 55.12 mm and the depth is 1.7 mm.
This product is manufactured in Switzerland.
