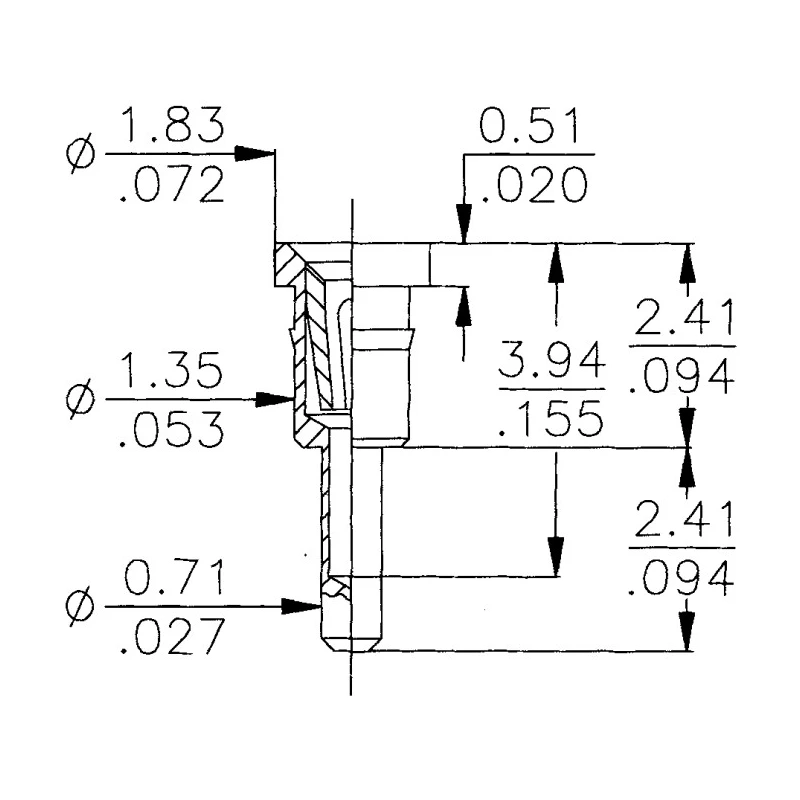

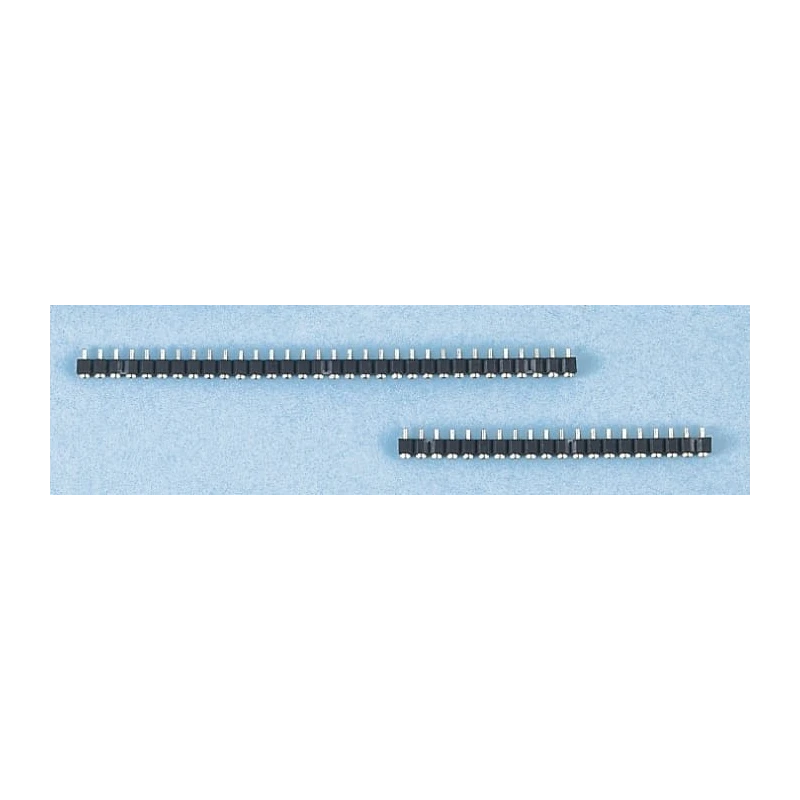

E-TEC SIB Series Straight Through Hole PCB Socket 20-Contact 1 Row 2.54 mm Pitch Solder SIB-120-S083-95
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | E-TEC |
| Orientation | Straight |
| Current | 1A |
| Model | SIB-120-S083-95 |
| Mount Type | Through Hole |
| Housing Material | Plastic |
| Contact Material | Beryllium Copper Alloy |
| Series | SIB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 2.54mm |
Key Features
- It features gold-plated beryllium copper alloy contacts for excellent conductivity and durability.
- The housing is made of robust plastic material suitable for through-hole mounting.
- This PCB socket supports a current rating of 1A and voltage up to 500V.
- Operating temperature ranges from -55°C to 125°C, allowing use in various industrial and electronic environments.
- The stacking height is 2.54 mm, maintaining a low profile on the PCB.
- Contact gender is female with a straight orientation for board-to-board connections.
- Termination is by solder, ensuring secure and reliable mounting.
- The product complies with standard specifications but does not list specific approvals.
Product Description
E-TEC SIB-120-S083-95 PCB Socket is a high-quality 20-contact, single-row straight through-hole connector designed for wire-to-board applications. It features a 2.54 mm pitch and solder termination type, making it suitable for reliable electronic circuit connections in industrial and manufacturing environments.
The socket is constructed with plastic housing and gold-plated beryllium copper alloy contacts, ensuring excellent electrical performance and corrosion resistance. It supports a maximum current of 1A and a voltage rating of 500V, catering to a wide range of electronic components and circuit board assemblies.
Its robust design allows operation within a temperature range of -55°C to 125°C, which makes it ideal for use in demanding industrial, electronic component manufacturing, and prototype development settings. The stacking height of 2.54 mm allows for compact assembly layouts.
This product is part of the SIB series that includes ultra low-profile divisible strips, designed for applications requiring high-density board-to-board connections. Its female contacts with straight orientation provide dependable connectivity for signal and power transmission.
Gold-plated beryllium copper alloy contacts for durability and conductivity. Plastic housing material designed for through-hole soldering. Rated for 1A current and 500V voltage. Operational temperature range from -55°C to 125°C.
2.54 mm pitch with a stacking height of 2.54 mm. Straight orientation female contact for board-to-board connections. Compatible with industrial electronic assemblies, manufacturing, and prototyping.
This PCB Socket is ideal for electronics manufacturing, industrial automation, and any application requiring reliable and durable PCB connectors. It supports modular design and ease of maintenance, enhancing system reliability.
Explore the E-TEC brand and the SIB series within EnvMart for comprehensive solutions catering to various PCB connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 500V.
This model supports a maximum current rating of 1A.
The pitch size of the contacts is 2.54 mm.
The contacts are made of gold-plated beryllium copper alloy, and the housing is constructed from plastic.
The operating temperature range for this socket is from -55°C to 125°C.
This PCB socket has 20 contacts.
This model uses solder termination for secure mounting.
The contacts in this socket have a straight orientation.
This PCB socket utilizes through-hole mounting.
Yes, this model is suitable for industrial electronic assemblies, manufacturing, and prototyping.
The stacking height of this PCB socket is 2.54 mm.
This PCB socket is manufactured in India.
