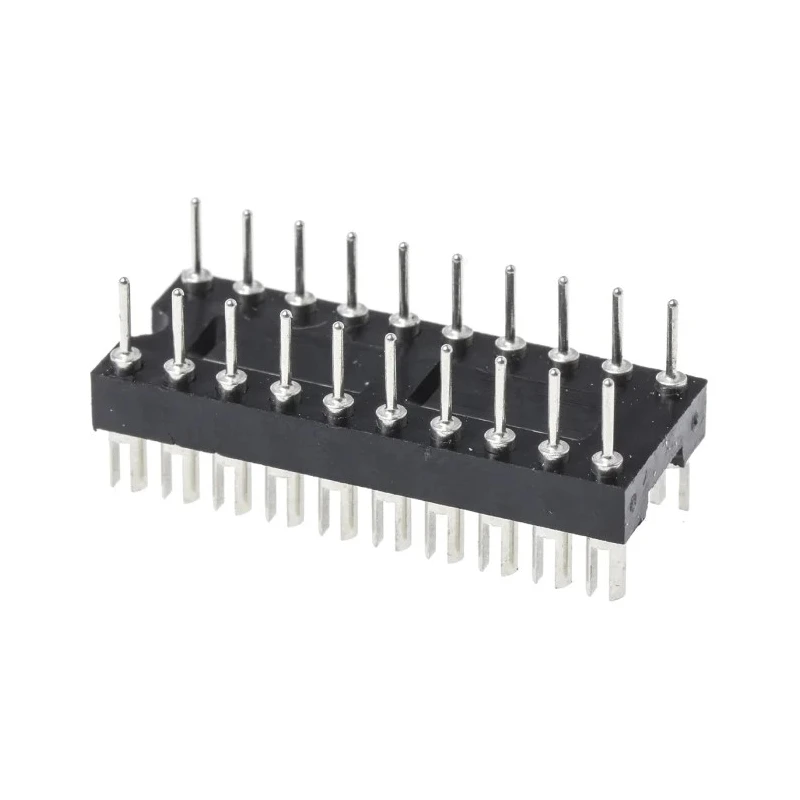

RS PRO 2.54 mm Pitch 20 Way Through Hole Mount DIL Header, Tin over Nickel, 1A 402-670

RS PRO 402-670 is a 20 Way Through Hole Mount DIL Header with a 2.54 mm pitch, designed for reliable electrical connections in electronic assemblies and submodules. Featuring brass contacts plated with tin over nickel, it ensures excellent conductivity and corrosion resistance. The polybutylene terephthalate housing provides solid mechanical support and durability, making it suitable for various industrial and commercial electronic applications.

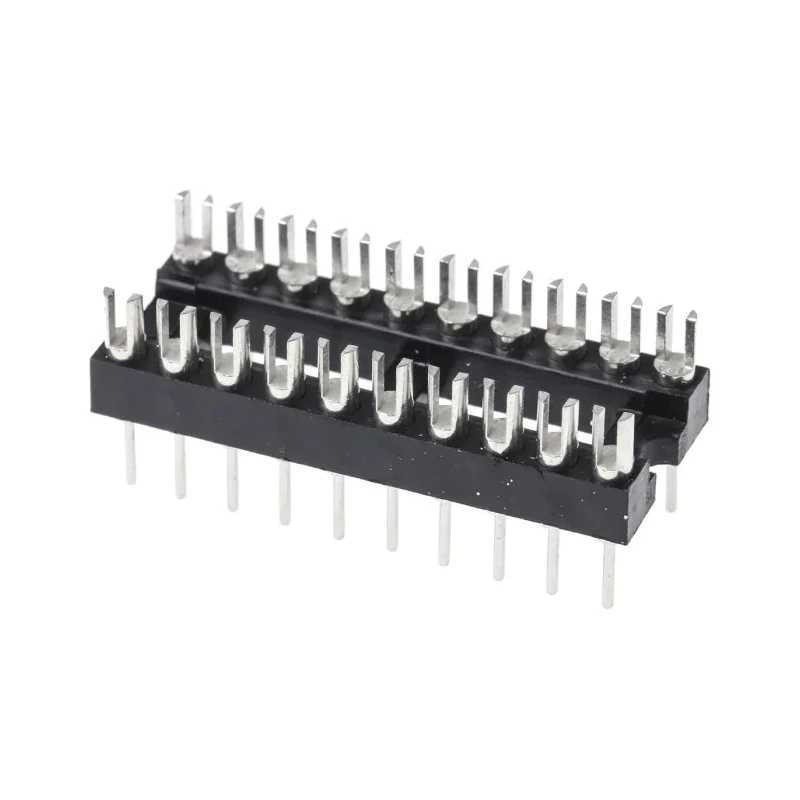

This unshrouded DIL header is fitted with slotted pins allowing secure solder termination, facilitating assembly on printed circuit boards through through-hole mounting methods. It supports a continuous current rating of 1 ampere and operates efficiently within a wide temperature range from -65°C to 150°C, accommodating demanding environmental conditions.

The product complies with the UL 94 V-0 flammability standard, providing enhanced safety and reliability in electronic systems. With compact dimensions of 25.32 mm in length and 10.14 mm in depth, it is ideal for integrating multiple way connections in tight spaces.

This DIL Header is extensively used in industrial electronics, automation systems, and manufacturing equipment requiring robust and dependable electrical connections. The product is manufactured in the United Kingdom, reflecting high-quality standards and consistency.

Features 20 brass contacts for stable electrical conductivity. Operates safely at currents up to 1 ampere. Unshrouded dual inline configuration for ease of integration. Constructed with polybutylene terephthalate housing for durability.

Suitable for through hole mounting with slotted pins for soldering. Resistant to temperatures from -65°C to 150°C for diverse applications. Complies with UL 94 V-0 flammability standard ensuring safety. Compact dimensions for space-saving installation.

Manufactured in the United Kingdom ensuring quality control. Explore more in the Electronics Components category at EnvMart for compatible connectors and headers to complete your assembly needs.
