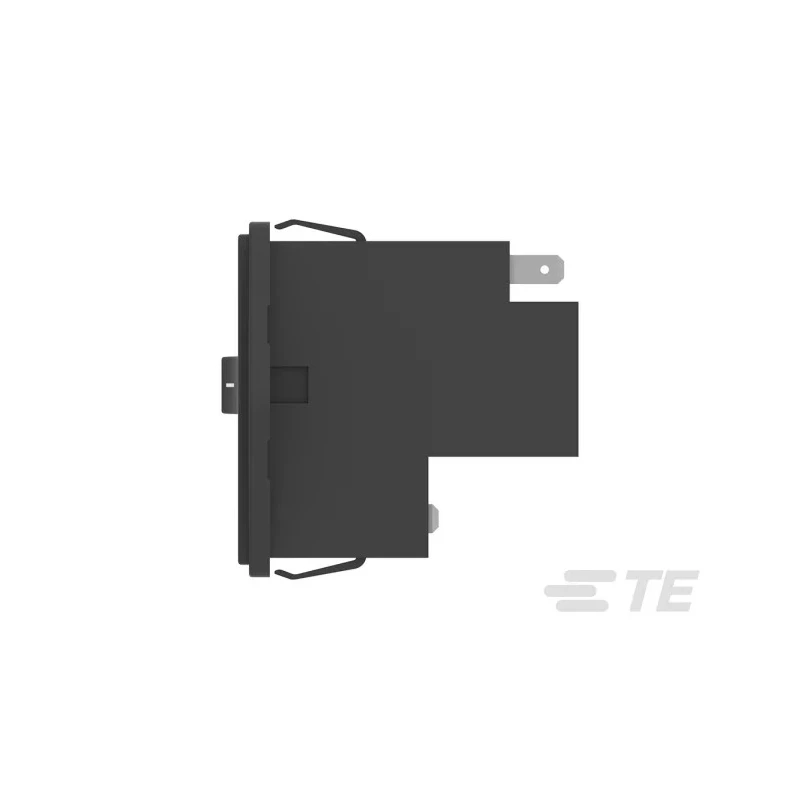

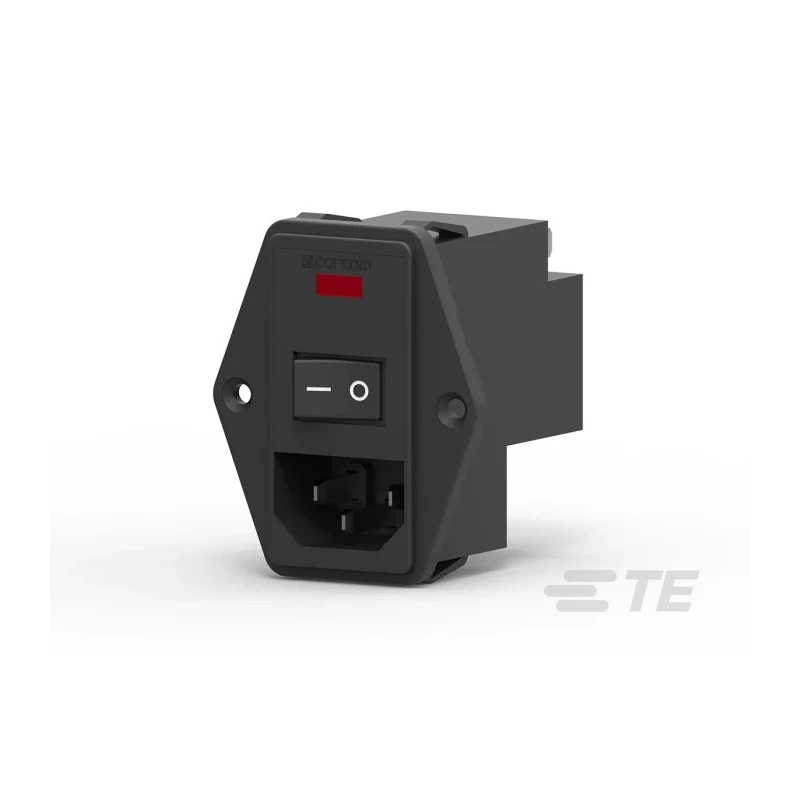

TE Connectivity Corcom P Series IEC Filter Flange Mount 10A, 115V ac, 230V ac PE0S0DBX0

TE Connectivity PE0S0DBX0 is a high-quality IEC filter designed for use in electronic components and power connectors requiring reliable noise suppression and filtering.

This Corcom P Series module provides medium level performance, surpassing standard options with a compact flange mount design suitable for various electrical and electronic equipment applications.

It supports both 115V and 230V AC voltage at a current rating of 10A, making it versatile for different power input scenarios common in industrial and commercial setups.

The filter supports SPST and DPST switch configurations with Faston termination types, facilitating easy and secure wiring connections. It operates efficiently at standard frequencies of 50Hz to 60Hz, meeting the demands of global markets.

Manufactured to meet UL and CSA standards, the PE0S0DBX0 ensures safety and compliance in electronic devices. It is engineered to operate reliably within a temperature range of -10°C to 40°C, accommodating moderate environmental conditions.

The IEC connector uses the RAST 5 type compliant with IEC 60320 1 standards, ensuring compatibility with industry-standard equipment. Its compact physical dimensions allow for embedding in tight spaces where flange mounting is preferred.

Corcom P Series medium performance filter module in a flange mount form factor. 10A rated current capability suitable for a range of AC voltages (115V and 230V). SPST and DPST switch support with robust Faston termination.

Operating frequency range 50-60Hz for versatile utility. Compliance with UL and CSA standards ensures high reliability and safety. Operating temperature from -10°C to 40°C for diverse applications. IEC connector type RAST 5 IEC 60320 1 for broad compatibility.

Compact unit height 54.73mm and depth 58.16mm fits various installations.

This IEC filter is widely used in electronic manufacturing, power supplies, industrial control panels, and commercial electrical equipment. It reduces electromagnetic interference, enhances device longevity, and improves operational safety.
