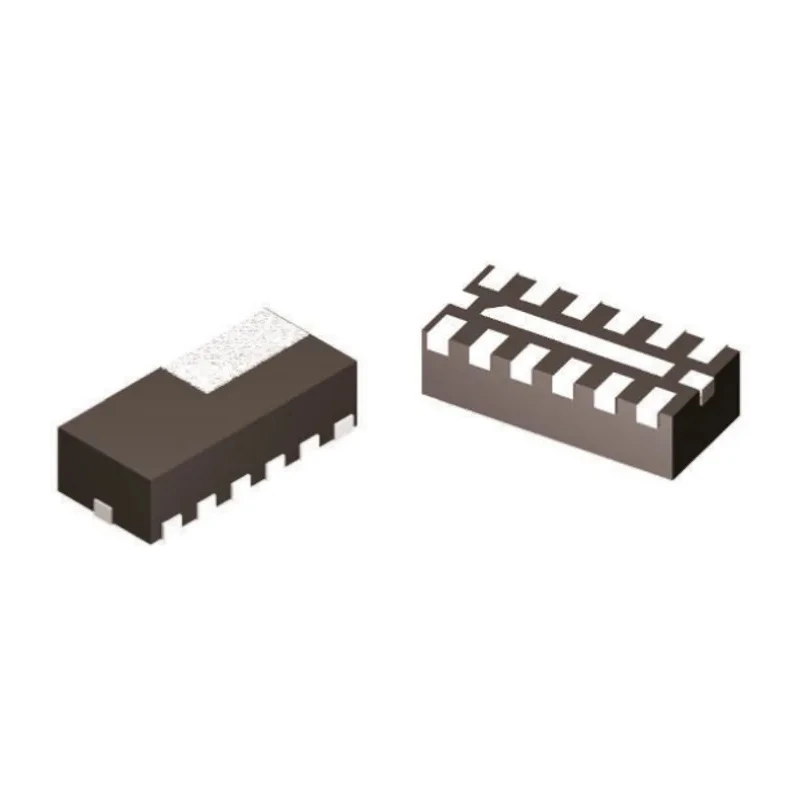

onsemi EMI Filter IC, 5V, 3000MHz, DFN12 Package, Surface Mount, ESD Protection, NUF6401MNT1G

The onsemi NUF6401MNT1G EMI Filter IC is a high-performance signal protection component engineered for wireless and electronic devices requiring advanced noise suppression and transient protection. This IC integrates electromagnetic interference (EMI) filtering arrays and robust electrostatic discharge (ESD) protection, providing reliability for sensitive signal pathways.

Operating at a maximum voltage of 5V with support for frequencies up to 3000MHz, the NUF6401MNT1G is ideal for high-speed communications and data transfer lines where clean signal integrity is vital. The integrated ESD protection handles surges up to 15kV, safeguarding circuits from potential damage in demanding electrical environments.

This device is presented in a compact DFN12 package, optimized for surface mount technology. Its solder pad termination style enables secure placement and connection on printed circuit boards, facilitating efficient automated manufacturing. Supplied in tape and reel packaging, the IC promotes production optimization and ease of insertion into SMT assembly lines.

The electrical characteristics include a capacitance of 20pF, allowing minimal signal loading while effectively filtering EMI/RFI noise. It complies with the IEC61000-4-2 standard, ensuring stringent electromagnetic compatibility and reliability in professional applications. The wide operating temperature range from -40°C to 85°C makes it suitable for industrial, telecommunications, and consumer electronics where environmental variability is routine.

DFN12 package dimensions of 3mm (length), 1mm (height), and 1.35mm (depth) ensure the NUF6401MNT1G can be integrated into compact designs, conserving valuable board space. Applications include smart devices, wireless communications, network interfaces, and equipment requiring signal filtering and ESD robustness.

Provides EMI filtering for wireless and electronic signal lines. Integrated ESD protection up to 15kV ensures robust device safety. Operates at a voltage of 5V for compatibility with standard systems. Maximum operating frequency of 3000MHz accommodates high-speed applications.

Compact DFN12 surface mount package with solder pad termination style. Meets IEC61000-4-2 standard for electromagnetic compatibility. Capacitance of 20pF suits signal lines requiring minimal loading. Operating temperature range from -40°C to 85°C allows use in harsh environments.

Dimensions: 3mm length, 1mm height, 1.35mm depth for space-constrained designs. Supplied on tape and reel packaging for automated assembly processes.

This EMI filter IC is suitable for use in industrial and consumer electronics, telecommunications, manufacturing, and embedded system designs requiring advanced EMI suppression and ESD protection. For more EMI filter options and related passive components, browse the Electronics Components category and onsemi brand at EnvMart.
