TE Connectivity Corcom AYO 3-Phase Flange RFI Filter 6A 250V AC 50Hz 60Hz 6609066-2

Free Delivery in India | Lowest Global Shipping Charges

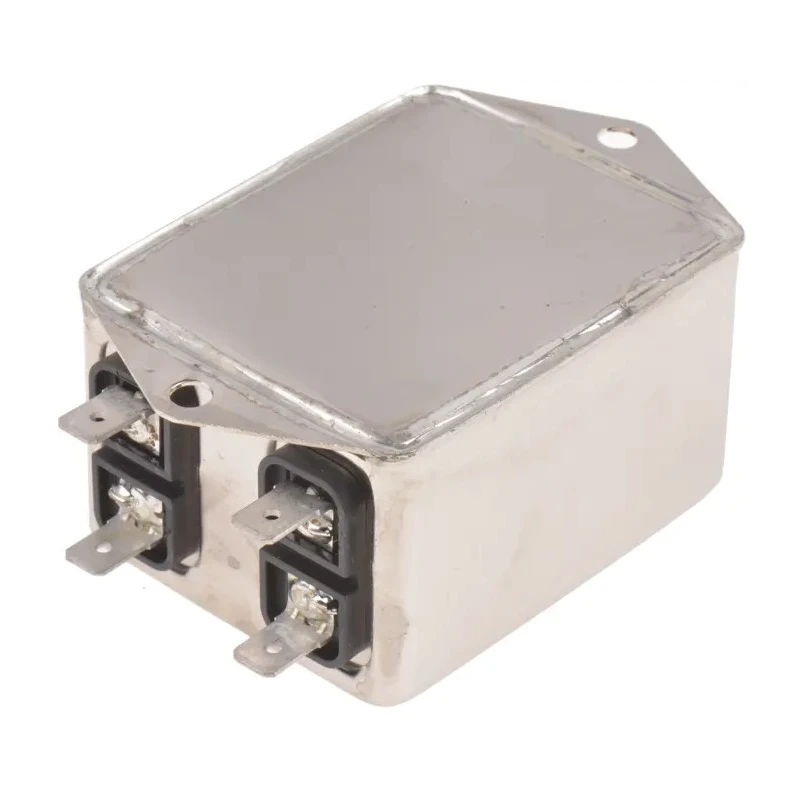

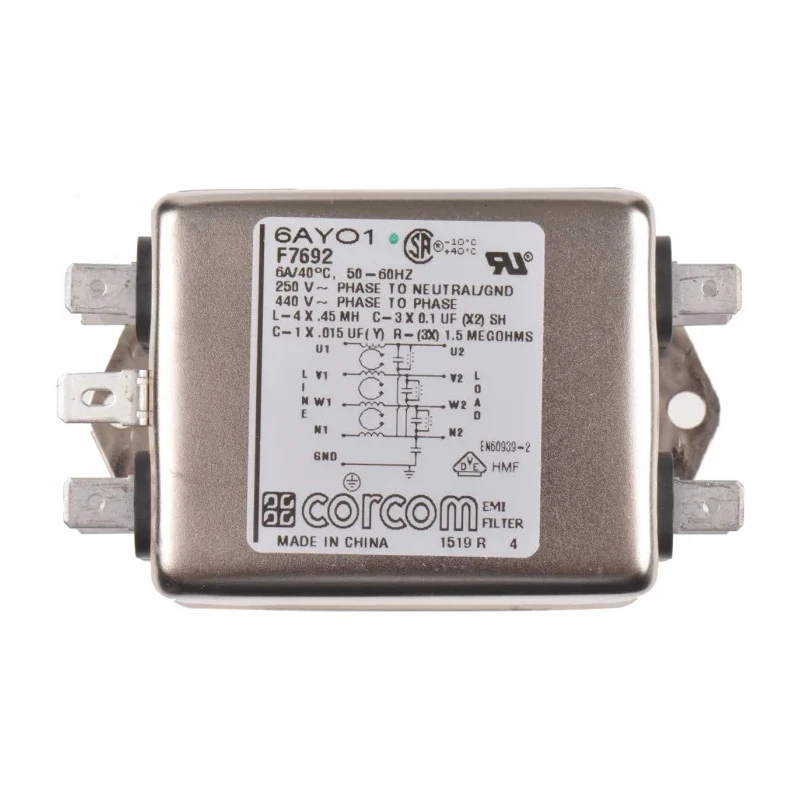

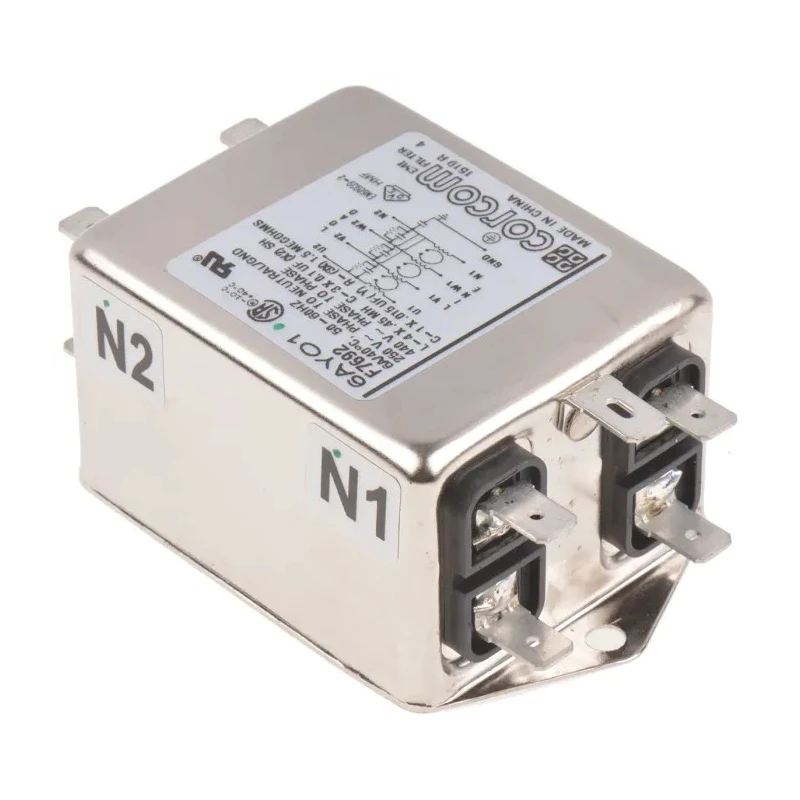

TE Connectivity Corcom AYO 3-Phase Flange RFI Filter 6A 250V AC 50Hz 60Hz 6609066-2

Name: TE Connectivity Corcom AYO 3-Phase Flange RFI Filter 6A 250V AC 50Hz 60Hz 6609066-2
Brand: TE Connectivity
SKU: 135491
Price: 65.46 USD
Availability: InStock



Category EMI Filters Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	52.5mm
Length	85.6mm
Depth	38.7mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom AYO
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	100nF
Minimum Operating Temperature	-10°C
Maximum Current	6A
Number of Phases	3
Leakage Current	3mA
Maximum Voltage	250V ac
Inductance	450μH
Termination Style	Spade

Key Features

Provides effective EMI/RFI filtering for three-phase WYE systems with neutral line protection.
Rated maximum current of 6 amperes ensuring suitability for low power devices.
Operates efficiently at a voltage up to 250V AC and frequencies of 50Hz and 60Hz.
Features a compact flange mount with spade termination for secure and easy installation.
Low leakage current of 3 mA reduces energy loss and interference.
Single stage filter design with capacitance 100nF and inductance 450μH for strong attenuation starting at 100kHz.
Suitable for industrial machines such as vending, gaming, and food service equipment.
Compact dimensions of approximately 85.6mm length, 52.5mm height, and 38.7mm depth support space saving installations.

Product Description

TE Connectivity 6609066-2 Corcom AYO series flange RFI filter is designed for 3-phase, four-wire WYE applications in industrial environments. This compact, low current EMI filter offers significant attenuation starting at 100kHz and is ideal for reducing electromagnetic interference in commercial and industrial equipment.

The filter supports a maximum continuous current of 6 amperes and operates at standard voltages of up to 250V AC. It operates effectively across both 50Hz and 60Hz frequencies, making it versatile for multiple national power standards.

Constructed for easy integration, it features a flange mounting type and spade style terminations. The single stage design includes a capacitance of 100nF and inductance of 450μH, complemented by a low leakage current of just 3 mA, helping to minimize power losses and maintain operational efficiency.

Its compact mechanical size with dimensions of 85.6mm length, 52.5mm height, and 38.7mm depth allows installation in constrained spaces on machinery and equipment. Temperature operating range extends from -10°C to 40°C, fitting typical industrial environmental conditions.

This filter is widely used across various sectors including manufacturing, vending machines, gaming machines, and food service equipment to ensure electromagnetic compatibility and reduce noise disruptions.

Provides effective EMI/RFI filtering for three-phase WYE systems with neutral line protection. Rated maximum current of 6 amperes ensuring suitability for low power devices. Operates efficiently at a voltage up to 250V AC and frequencies of 50Hz and 60Hz.

Features a compact flange mount with spade termination for secure and easy installation. Low leakage current of 3 mA reduces energy loss and interference. Single stage filter design with capacitance 100nF and inductance 450μH for strong attenuation starting at 100kHz.

Compact size suitable for space-constrained industrial applications. Conforms to international safety standards such as UL 1283, CSA 22.2 No. 0/0.4/8, and VDE 0565-3. Explore EnvMart’s Electronics Components catalog for more reliable EMI filtering solutions and TE Connectivity products built to meet rigorous industrial standards.
