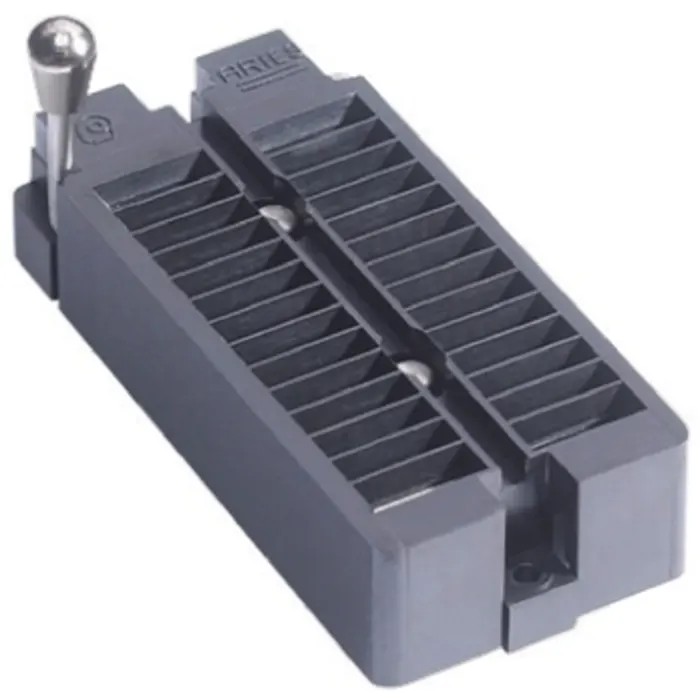

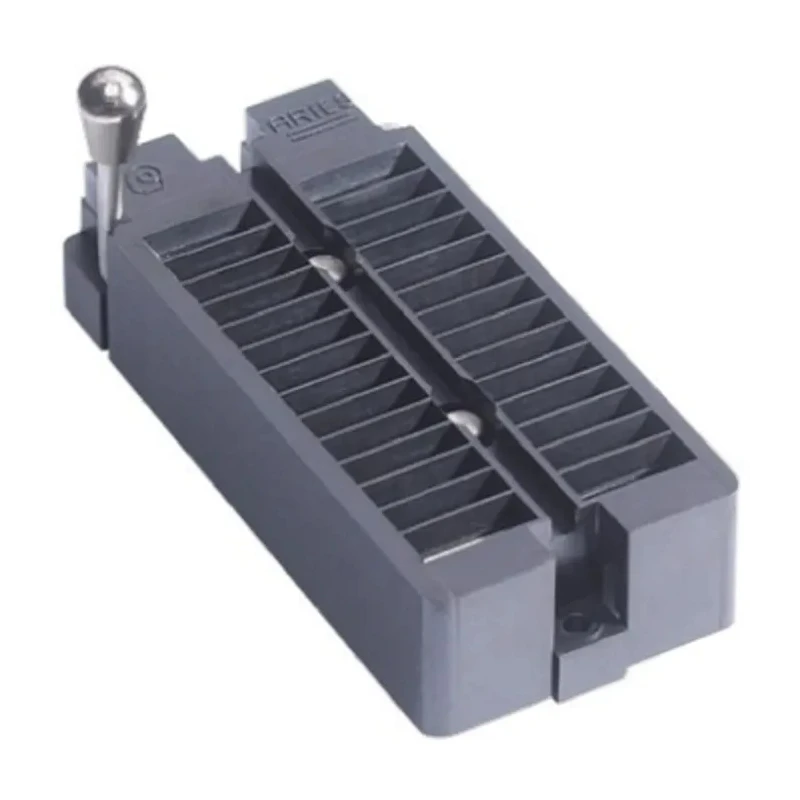

Aries Electronics 2.54 mm Pitch 24 Way DIP Through Hole Test IC Socket 24-6554-11

Aries Electronics 24-6554-11 is a 2.54 mm pitch 24 way DIP through hole test IC socket designed for precise and reliable testing of integrated circuits on printed circuit boards. Its through hole device mount type and DIP package support straight orientation configurations ideal for industrial and laboratory electronic testing applications.

The socket contacts use a beryllium copper alloy with gold over nickel plating, providing excellent conductivity and durability under frequent use. This test socket accommodates currents up to 1A and voltages up to 1kV, ensuring compatibility with a broad range of IC devices.

The black polyphenylene sulphide housing is UL 94V-0 rated glass-filled thermoplastic offering robust electrical insulation and mechanical strength. The stainless steel handle is ergonomically designed to allow the socket to be operated either from the right or left side during testing cycles, supporting a lifecycle between 25,000 and 50,000 cycles.

The dual-row arrangement with 24 contacts and 15.24 mm row pitch accommodates ICs mounted on 7.62 mm to 15.24 mm centers, making it versatile for various DIP test applications across electronics manufacturing, quality assurance, and R&D labs. The socket uses solder termination ensuring a secure, durable PCB connection.

No certifications or approvals are indicated for this model, reflecting its use primarily as a test socket in controlled environments. The minimum operating temperature is -55°C and maximum is 105°C, suitable for standard industrial conditions.

Manufactured in the United States, this Aries Electronics test socket offers proven reliability and performance for electronic testing and development. Its universal compatibility and durable materials make it essential for electronics assembly and maintenance operations.

The test socket features a 2.54 mm pitch with 24 contact points for effective device interfacing. Constructed with beryllium copper alloy contacts plated with gold over nickel ensures optimal conductivity and corrosion resistance.

Compatible with through hole mounting and DIP package type, suitable for straight orientation setups. Operates reliably within a temperature range of -55°C to 105°C and supports up to 1 kV voltage rating. The housing is made of black UL 94V-0 rated polyphenylene sulphide (PPS) material for durable electrical insulation.

Designed with a lifecycle of 25,000 to 50,000 operating cycles to ensure extended usage in testing environments. Handle made of stainless steel provides robust mechanical operation and can be mounted on either right or left side.

Socket row pitch of 15.24 mm and dual-row construction support universal testing applications for devices on 7.62 to 15.24 mm centers. No additional certifications or compliance standards specified for this model. Manufactured in the United States ensuring high-quality control and standards.
