Aries Electronics 15.24 mm Pitch 14 Way DIL Through Hole Oscillator IC Socket 1107741

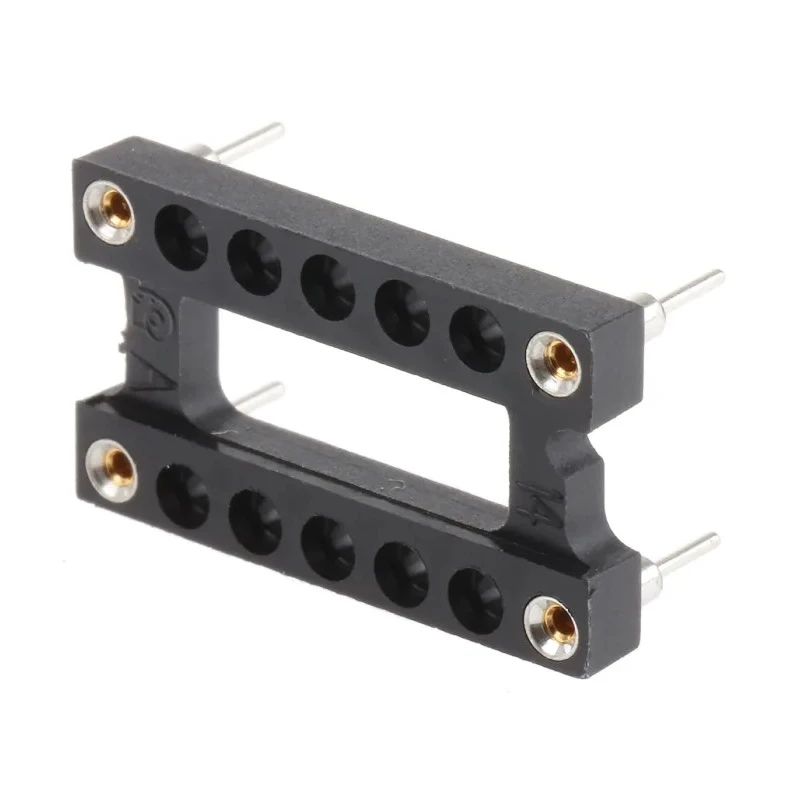

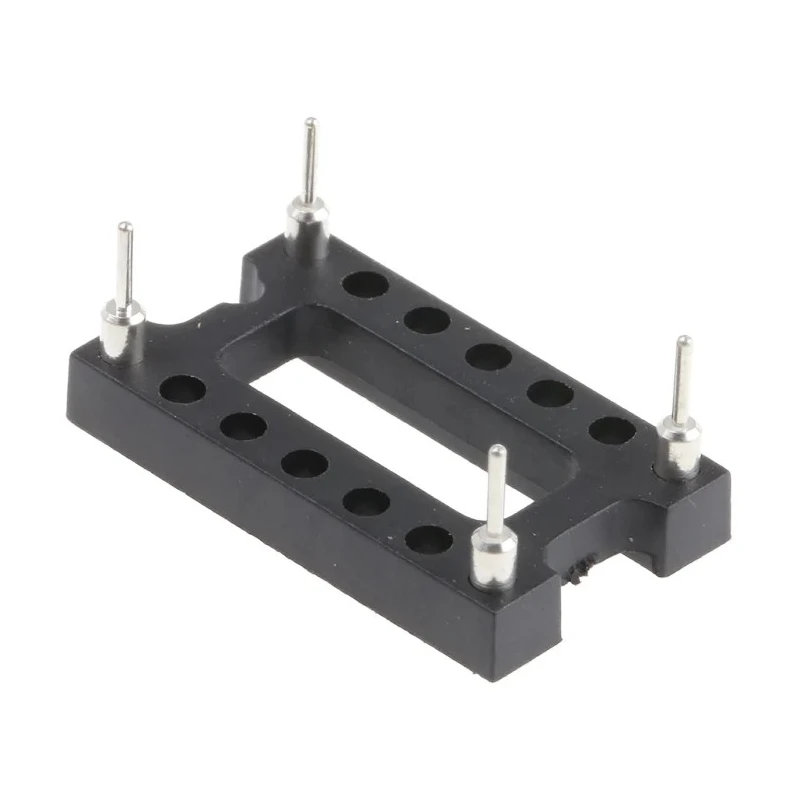

Aries Electronics 1107741 14 Way DIL Through Hole Oscillator IC Socket provides a high-quality interface solution for oscillator integrated circuits requiring 15.24 mm pitch spacing and 14 contacts. This IC socket is engineered for seamless integration in electronic assemblies with through hole mounting and a straight contact orientation.

The socket housing is manufactured from black UL 94V-0 glass-filled Nylon, ensuring excellent flame retardant properties and mechanical strength. Its contacts are made from Beryllium Copper Alloy, plated with gold over nickel to guarantee high conductivity, corrosion resistance and extended service life.

Designed for demanding operating conditions, this oscillator IC socket supports a temperature range from -55°C to 105°C, making it suitable for various industrial and commercial electronics applications. It is rated to handle currents up to 3A and withstand voltages up to 1kV, meeting rigorous safety and performance standards.

The pin body consists of Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00, providing robust mechanical durability. The socket’s insertion and withdrawal forces are carefully balanced at 180 grams and 90 grams per pin respectively, which ensures reliable IC retention while facilitating easy replacement or servicing.

This oscillator IC socket is fully compatible with standard oscillator packages offered in both 14 and 8 position frames. It allows for flexible stacking either end-to-end or side-to-side to accommodate various PCB configurations and compact designs. The straight orientation and through hole mounting style make it ideal for machine insertion during high-volume manufacturing processes.

Constructed with black UL 94V-0 glass-filled Nylon housing for enhanced durability. Features Beryllium Copper Alloy contacts with gold over nickel plating for superior conductivity and corrosion resistance. Designed for through hole mounting with straight orientation suitable for industrial PCB assemblies.

Operates reliably between -55°C and 105°C temperature range ensuring stable performance. Supports up to 3A current with a voltage rating of 1kV, suitable for various electronic applications. Socket mount and device mount types are through hole for strong mechanical and electrical connections.

Pin body composed of Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00 for excellent mechanical strength. Insertion force is 180 grams per pin and withdrawal force is 90 grams per pin, ensuring secure IC placement. Compatible with standard oscillator packages in 14 and 8 position frames, stackable end-to-end or side-to-side.

Ideal for use in industrial, electronics manufacturing, and prototyping environments.

This Aries Electronics IC socket is perfect for professionals working in electronic product design, repair, and manufacturing where reliable connections and durability are paramount. Its design optimizes production efficiency by facilitating machine insertion and ensuring long-term reliability.
