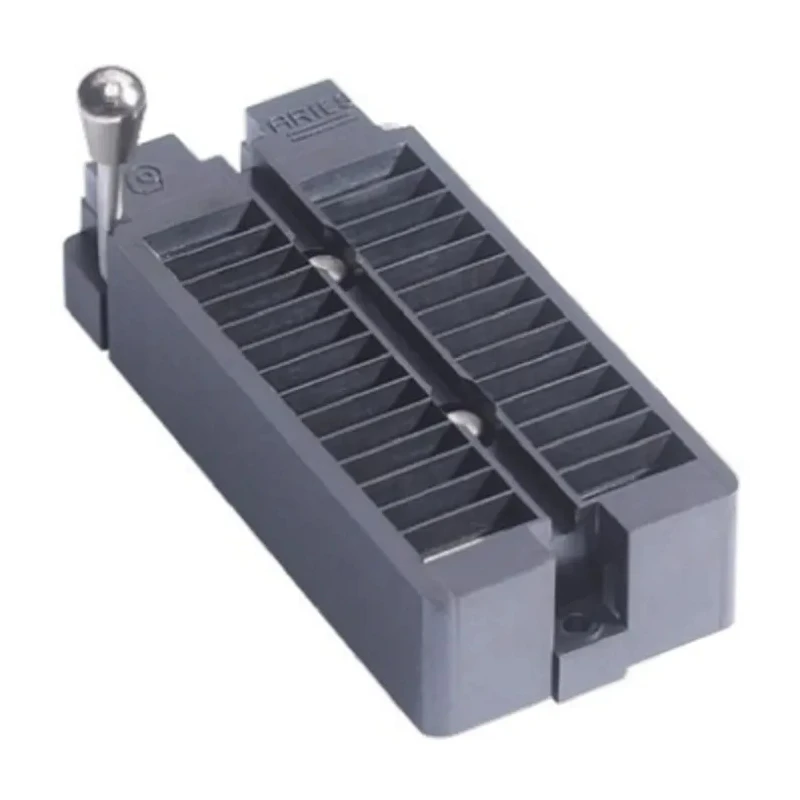

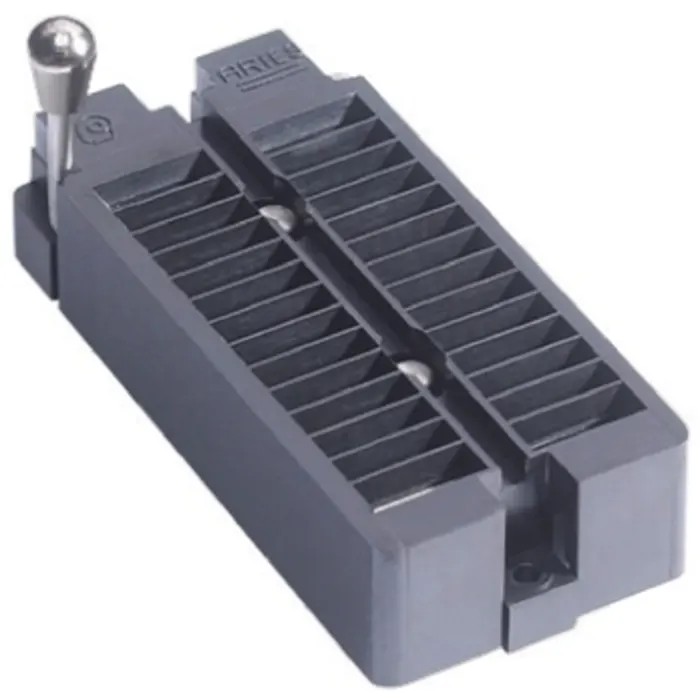

Aries Electronics 2.54 mm Pitch 48 Way DIP Through Hole Test IC Socket 48-6554-11

Aries Electronics 48-6554-11 Test IC Socket 48 Way is engineered with a 2.54 mm pitch and 48 contacts across 2 rows to meet the demands of precise in-circuit testing for electronic components. This DIP through hole socket features a polyphenylene sulphide housing providing mechanical strength and high flame resistance, while the gold over nickel plated beryllium copper alloy contacts ensure excellent electrical performance and durability.

The socket supports a current rating of 1A and withstands voltages up to 1kV, making it suitable for a wide range of electrical testing scenarios. Its operating temperature range from -65°C to 150°C enables use under varied environmental conditions, including industrial and laboratory settings.

Designed for ease of use, the zero insertion force mechanism facilitates device mounting and removal without damage, increasing the efficiency of testing operations. The stainless steel handle is configured to allow contacts to remain closed in either handle position, with mounting flexibility on either the right or left side. The component is ideal for PCB applications where secure and repeatable connections are essential.

This test socket offers long service life with a life cycle rating between 25000 to 50000 cycles, enhancing reliability in high-volume production and maintenance tasks. It is widely applicable in sectors such as industrial electronics, telecommunications, quality assurance, prototyping laboratories, and manufacturing testing.

Provides 48 contacts arranged in 2 rows with a 15.24 mm row pitch for accommodating various IC devices. Features gold plated beryllium copper alloy contacts ensuring excellent conductivity and corrosion resistance. Rated for 1A current and 1kV voltage to support safe and stable testing conditions.

Constructed with a black glass-filled polyphenylene sulphide housing for durability and UL 94V-0 flame resistance. Operates reliably across a temperature range from -65°C to 150°C for diverse testing environments. Test socket design allows zero insertion force and easy device mounting through the DIP package type.

Includes stainless steel handle and supports up to 50000 life cycles for extended usage. Suitable for use in industrial, laboratory, electronic manufacturing, quality control, and prototyping applications.

Aries Electronics 48-6554-11 is manufactured in the United States and adheres to stringent quality standards ensuring consistent performance. This product enables enhanced testing efficiency and device reliability in demanding electronic test setups. For those seeking reliable IC Socket solutions, explore the Electronics Components category at EnvMart for additional options and compatible products.
