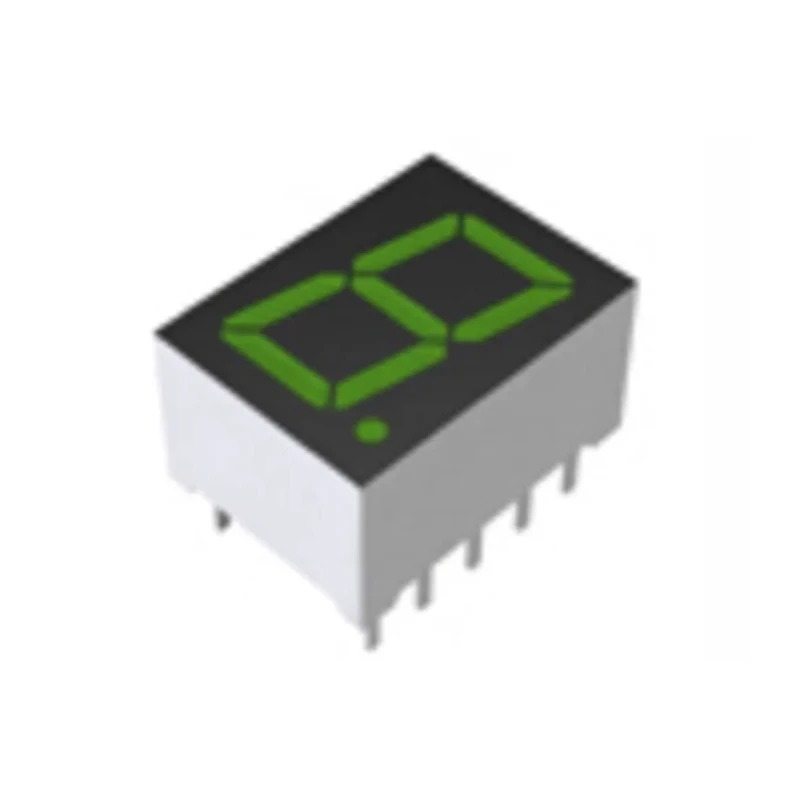

ROHM 1 LED LED Display Anode 100mcd Right Side 10.2 mm LAP-401MD
Specifications
| Country of Origin | India |
|---|---|
| Display Type | LED |
| Brand | ROHM |
| Model | LAP-401MD |
| Mount Type | Through Hole |
| Series | LAP-401D |
| Character height | 10.2mm |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Number Of Segments | 7 |
| External Width | 9.6mm |
| External Depth | 13mm |
| External Height | 7mm |
| Power Dissipation | 448mW |
| Luminous Intensity | 100mcd |
| Standards/Approvals | RoHS |
| Dominant Wavelength | 572nm |
| Colour of Face | Black |
| Forward Voltage | 2.6V |
| Forward Current | 20mA |
| Number of Characters | 1 |
| Character Width | 5.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- High brightness LEDs with 4-element AlGaInP dies enhance luminous intensity significantly.
- Through hole mount type for reliable PCB installation.
- Operating temperature range from -25°C to 75°C for versatile applications.
- Compact external dimensions of 9.6 mm width, 7 mm height, and 13 mm depth.
- Low power dissipation of 448mW ensures energy efficiency.
- Forward voltage of 2.6V and forward current of 20mA for standard LED operating parameters.
- Black face color for clear visibility and contrast in displays.
- RoHS compliant ensuring environmental safety standards.
Product Description
ROHM LAP-401MD is a high-brightness 1 LED LED display with anode common connection and right side decimal orientation. This LED is designed for various electronic display applications requiring enhanced luminous intensity with energy-efficient performance.
Featuring a character height of 10.2 mm and a character width of 5.6 mm, the display provides clear and legible numeric output. The LED utilizes advanced 4-element AlGaInP dies, resulting in luminous intensity of approximately 100mcd, substantially brighter compared to conventional numerical LED displays.
The component comes with a through hole mount type ensuring robust mechanical fixation on printed circuit boards. Its compact external dimensions - 9.6 mm width, 7 mm height, and 13 mm depth - make it suitable for space-conscious electronic devices.
Operating temperature range from -25°C to 75°C supports performance stability in industrial, laboratory, consumer electronics, and instrumentation environments. The LED display dissipates low power at 448mW with forward voltage of 2.6V and forward current at 20mA, balancing brightness and power efficiency.
The face color is black, providing high contrast with illuminated segments. This product conforms to RoHS standards, guaranteeing compliance with environmental safety regulations. High brightness LEDs with 4-element AlGaInP dies enhance luminous intensity significantly.
Through hole mount type for reliable PCB installation. Operating temperature from -25°C to 75°C supports wide application environments. Compact external dimensions allow use in space-limited circuit designs. Low power dissipation ensures energy-efficient operation.
Standard forward voltage and current align with common LED specifications. Black face color provides clear visibility and contrast. RoHS compliant ensuring adherence to environmental standards.
This LED Display module is well-suited for use in electronics manufacturing, instrumentation, avionics, and other industrial control systems. Browse similar ROHM LED components on EnvMart for extended options and technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is approximately 100mcd, significantly enhancing brightness compared to conventional numerical LED displays.
It operates within a temperature range of -25°C to 75°C, making it suitable for various environments including industrial and consumer electronics.
The forward voltage is 2.6V and the forward current is 20mA, aligning with standard LED operating parameters.
The external dimensions are 9.6 mm in width, 7 mm in height, and 13 mm in depth, making it compact for space-limited applications.
This model features a through hole mount type, ensuring reliable mechanical fixation on printed circuit boards.
The character height is 10.2 mm and the character width is 5.6 mm, providing clear and legible numeric output.
Yes, this LED display is RoHS compliant, ensuring it adheres to environmental safety standards.
The power dissipation is 448mW, contributing to its energy-efficient performance.
This model features 7 segments, allowing for versatile display options in electronic applications.
The common connection type for the LAP-401MD is anode, which is standard for many LED displays.
The dominant wavelength of this LED display is 572nm, contributing to its brightness and color output.
It is suitable for use in electronics manufacturing, instrumentation, avionics, and other industrial control systems due to its high brightness and compact design.
