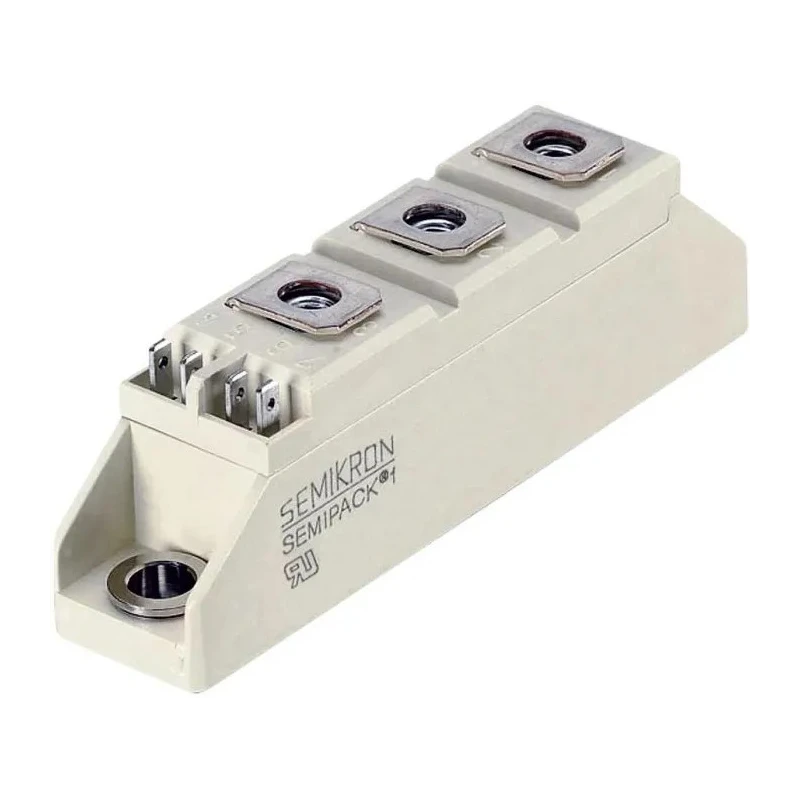

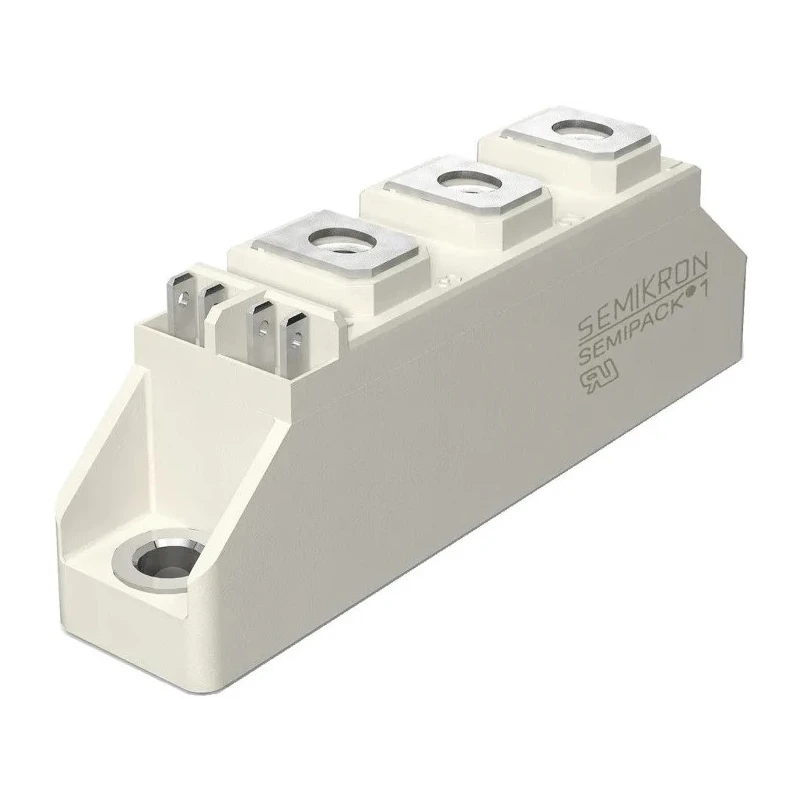

Semikron Danfoss 1600 V 101 A General Purpose 3-Pin Diode SEMIPACK1 SKKD 101/16
Specifications
| Country of Origin | Slovakia |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30mm |
| Length | 93mm |
| Model | SKKD 101/16 |
| Width | 20mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 130°C |
| Package Type | SEMIPACK1 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 101A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.5kA |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- Suitable for high power applications and reliable diode performance.
- Maximum continuous forward current is 101 A.
- Peak reverse repetitive voltage rated at 1600 V.
- Operates efficiently in temperatures ranging from -40°C to 130°C.
- Features a maximum forward voltage drop of 1.6 V for reduced power loss.
- Compact dimensions with 93 mm length, 30 mm height, and 20 mm width.
- Three-pin panel mount type for easy installation and integration.
- Peak non-repetitive forward surge current capacity of 2.5 kA.
Product Description
Semikron Danfoss SKKD 101/16 is a robust general purpose diode designed for high power rectification applications. Featuring a 1600 V peak reverse voltage and 101 A continuous forward current, this device supports demanding power electronics environments. The diode is housed in a SEMIPACK1 package with 3 pins, facilitating panel mounting and streamlined system integration.
The diode module utilizes heat transfer through an aluminium oxide ceramic isolated metal baseplate, enhancing thermal management and ensuring reliable operation under continuous load. This rectifier diode supports a wide operating temperature range from -40°C to 130°C, making it suitable for harsh industrial and commercial environments.
With a maximum forward voltage of 1.6 V, power losses are minimized, boosting energy efficiency. Its compact physical size of 93 mm length, 30 mm height, and 20 mm width allows efficient PCB layout and device packaging. The peak non-repetitive forward surge current of 2.5 kA provides resilience against transient load conditions.
Semikron Danfoss SKKD 101/16 is manufactured in Slovakia under UL recognized standards, assuring quality and reliability. This device is ideal for use in industrial power supplies, motor drives, inverters, and rectification circuits in electronics and electrical equipment.
Suitable for high power applications and reliable diode performance. Maximum continuous forward current is 101 A. Peak reverse repetitive voltage rated at 1600 V. Operates efficiently in temperatures ranging from -40°C to 130°C.
Features a maximum forward voltage drop of 1.6 V for reduced power loss. Compact dimensions with 93 mm length, 30 mm height, and 20 mm width. Three-pin panel mount type for easy installation and integration. Peak non-repetitive forward surge current capacity of 2.5 kA.
Constructed with an aluminium oxide ceramic isolated metal baseplate for effective heat transfer. Manufactured in Slovakia with UL recognized standards. Explore more electronic components and semiconductor devices in EnvMart's extensive catalog to meet your project needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 101 A.
The peak reverse repetitive voltage rating is 1600 V.
This model operates efficiently in temperatures ranging from -40°C to 130°C.
The maximum forward voltage drop is 1.6 V, which helps to reduce power loss.
The dimensions of this diode are 93 mm in length, 30 mm in height, and 20 mm in width.
This diode features a 3-pin configuration for panel mounting.
The peak non-repetitive forward surge current capacity is 2.5 kA.
It is housed in a SEMIPACK1 package type.
This diode is manufactured in Slovakia.
This model is classified as a general-purpose rectifier.
The peak reverse current is rated at 3 mA.
This diode is suitable for use in industrial power supplies, motor drives, inverters, and rectification circuits in electronics and electrical equipment.
