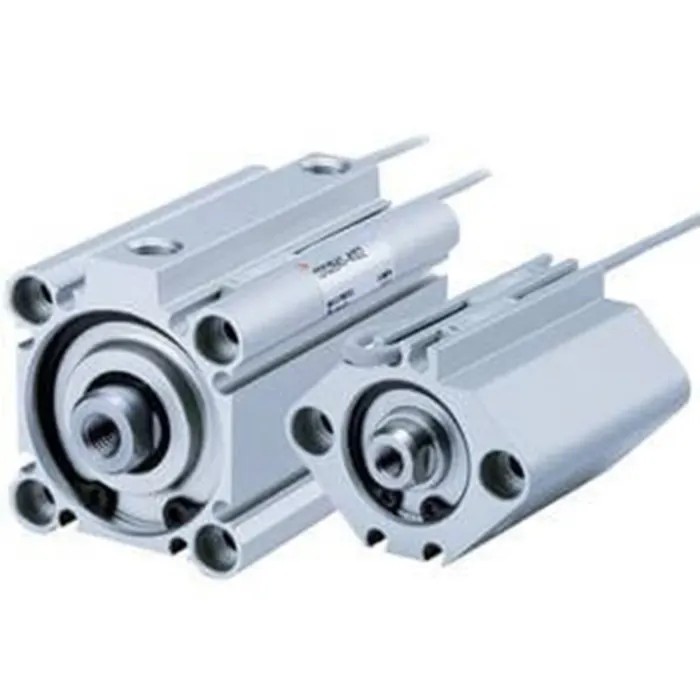

SMC 10 mm Double Acting Cylinder Aluminium Alloy Body Through Hole Mount CDQ2

SMC CDQ2B40-10DZ is a 10 mm stroke, double acting pneumatic cylinder from the CDQ2 series featuring an aluminium alloy body and through hole mount type. It is specifically engineered for efficient linear motion applications in industrial, manufacturing, automation, and fluid power systems.

This cylinder employs a double acting mechanism providing force and motion during both extension and retraction strokes. The compact size and lightweight aluminium alloy construction minimize overall machine weight, helping save space and increase productivity in your pneumatic automation setup.

The piston rod comes with a female thread and metric thread standard allowing secure mounting of tooling or attachments. The rubber bumper cushions the cylinder’s end position, reducing noise and mechanical shock, which extends the service life of equipment.

Designed to operate at a maximum temperature of 60°C, this product is suitable for a broad range of industrial environments. It delivers stable and repeatable positioning suitable for clamping, ejecting, or positioning smaller components in assembly lines and machinery.

This double acting cylinder features a 10 mm stroke length for precise linear motion. The aluminium alloy body ensures lightweight construction and corrosion resistance. Through hole mounting type allows easy installation in various equipment.

Equipped with a rubber bumper cushioning system to reduce impact and noise. Designed for maximum operating temperature up to 60°C for reliable performance. The piston rod has a metric thread standard and female rod gender.

Suitable for industrial pneumatic applications requiring compact and efficient actuation. Manufactured in China with no certifications or approvals specified.

This cylinder fits pneumatic systems in industrial machinery, laboratory automation, HVAC machinery, and manufacturing equipment. Its design supports compact and efficient pneumatic actuation, improving operational cycle times and precision.
