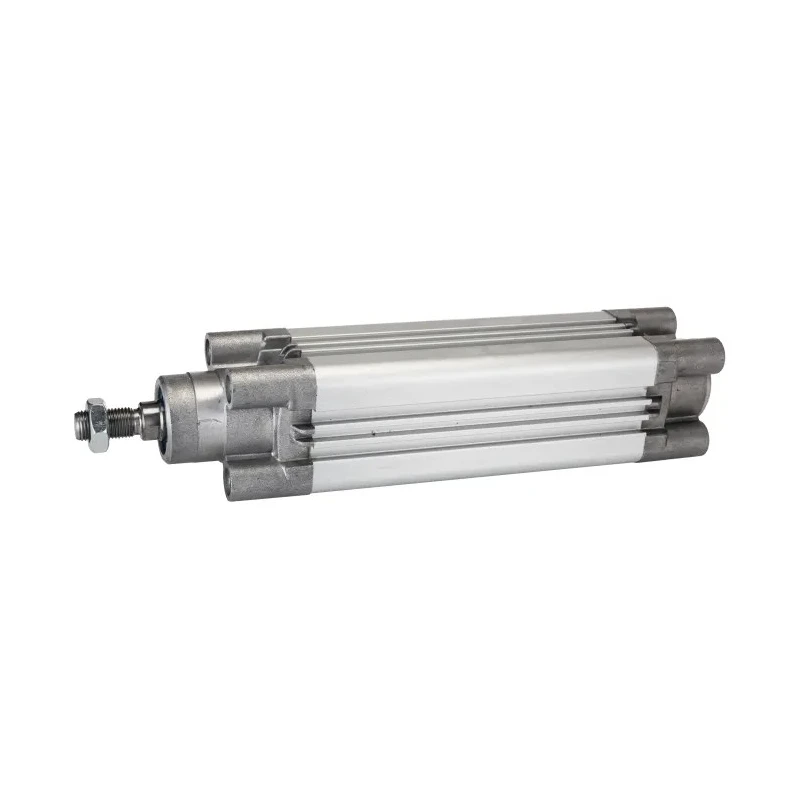

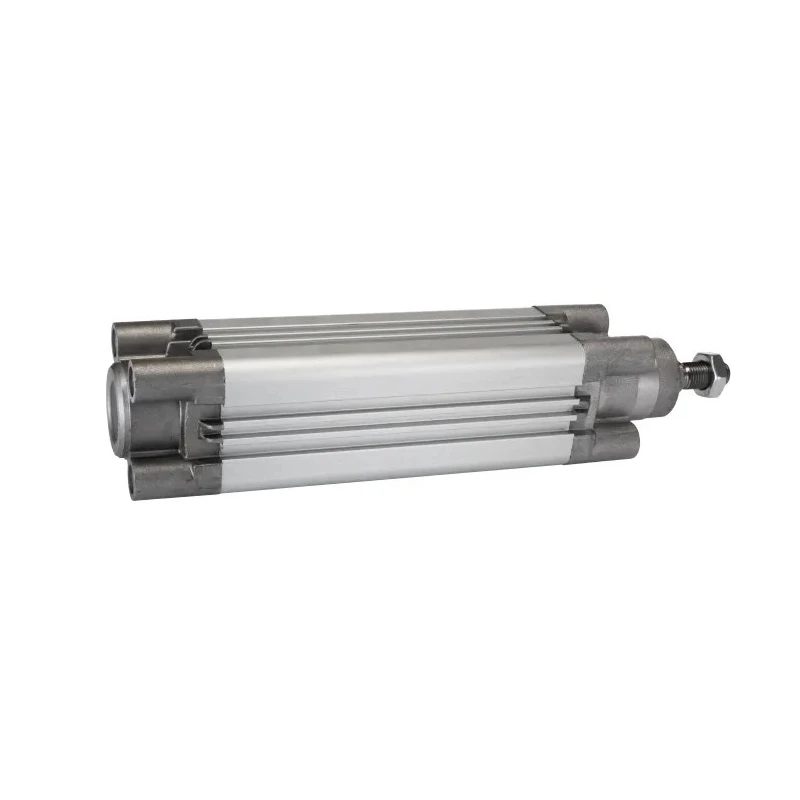

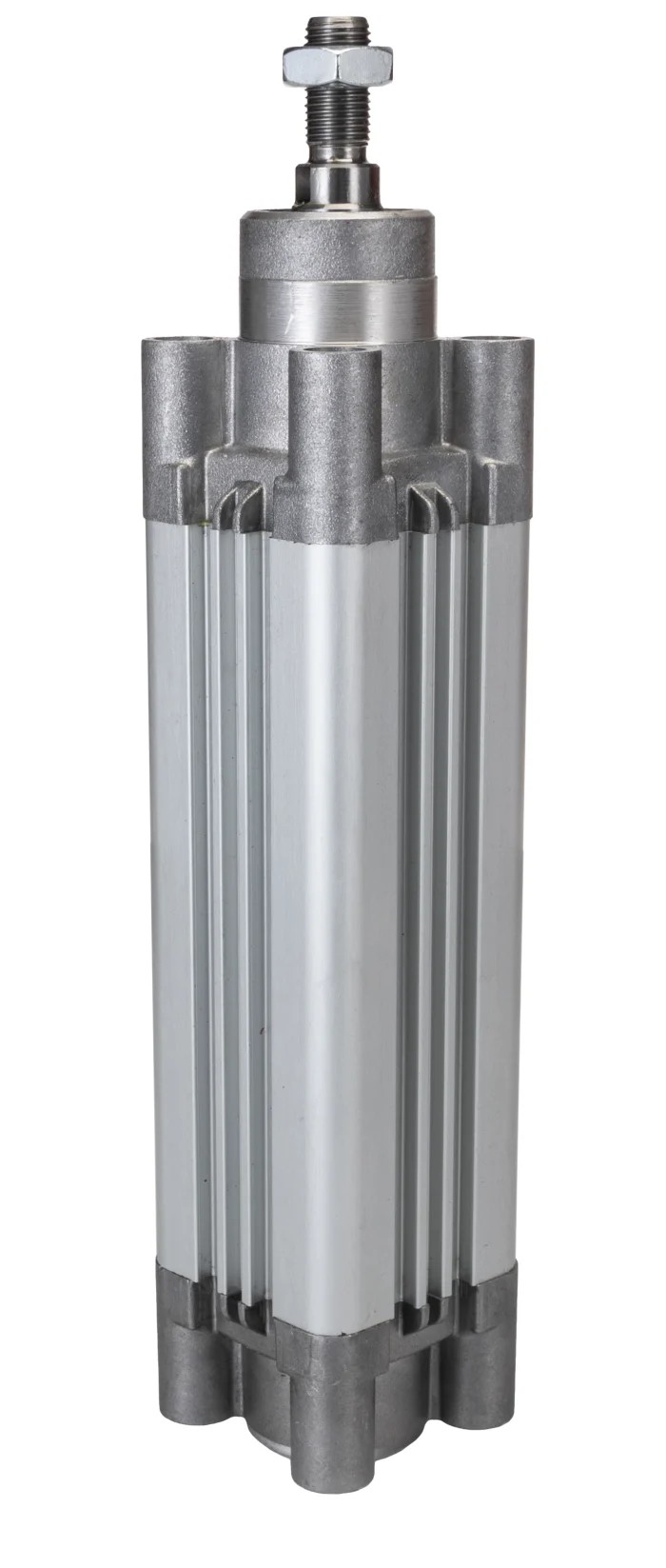

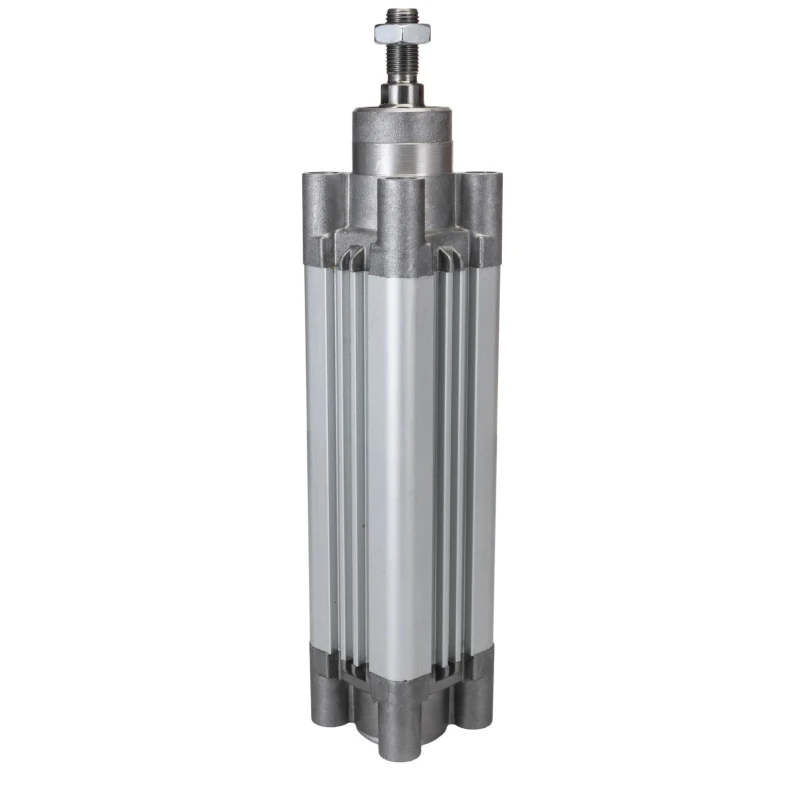

RS PRO Double Acting Cylinder 32mm Bore, 200mm Stroke, Stainless Steel Body, Both Ends Tapped Mount, Magnetic 176-1699

RS PRO 176-1699 is a high precision double acting pneumatic cylinder from the X Series, designed with a 32mm bore and a 200mm stroke length. Constructed with a stainless steel body, this actuator delivers excellent corrosion resistance and durability suitable for demanding industrial environments.

The cylinder utilizes compressed air for double acting operation, moving the piston in both directions to ensure smooth, efficient motion control. Cushioned end positions reduce noise and mechanical wear, extending service life. The unit includes an integrated magnetic sensor slot that facilitates absolute position sensing via external sensors, enhancing automation and feedback capabilities.

Mount type includes both ends tapped, providing versatile mounting options for various industrial setups. Operating pressure maxes at 10 bar and it supports minimum and maximum operating temperatures of 0°C and 80°C respectively, accommodating a range of process conditions.

The piston rod features a double rod design with a female thread (1/8 in G), enabling secure connections to other mechanical components. Its compact form factor with 46mm height and width allows installation in constrained spaces.

Commonly used across industrial automation, manufacturing, and assembly lines, this RS PRO pneumatic cylinder excels in applications requiring precise, repeatable motion with durability and integration flexibility.

Constructed from stainless steel for long-term corrosion resistance and reliability. Double acting mechanism ensures controlled piston movement in both directions. Cushioned ends minimize impact and noise for smooth operation.

Magnetic sensor slot enables piston position detection for automated feedback. Both ends tapped for flexible mounting configurations. Pressure rated up to 10 bar suitable for robust pneumatic systems. Designed to operate within a temperature range of 0°C to 80°C.

Compact dimensions improve applicability in tight industrial spaces.

This double acting cylinder is an essential component for industrial pneumatic systems requiring reliable and precision motion actuators. Explore the comprehensive range of pneumatic actuators and cylinders to match varied application needs in automation and fluid power contexts at EnvMart.
