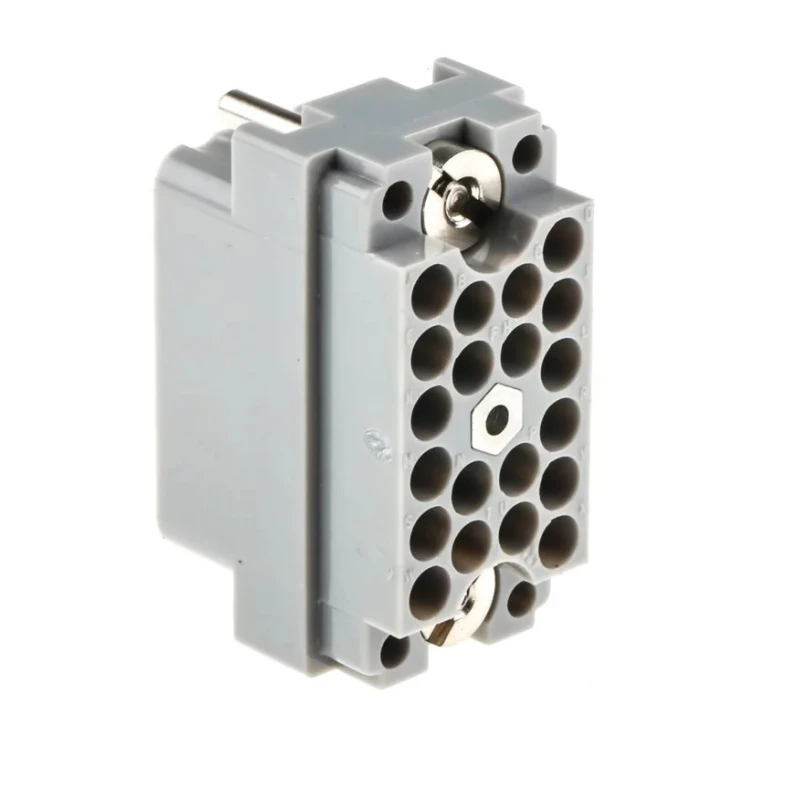

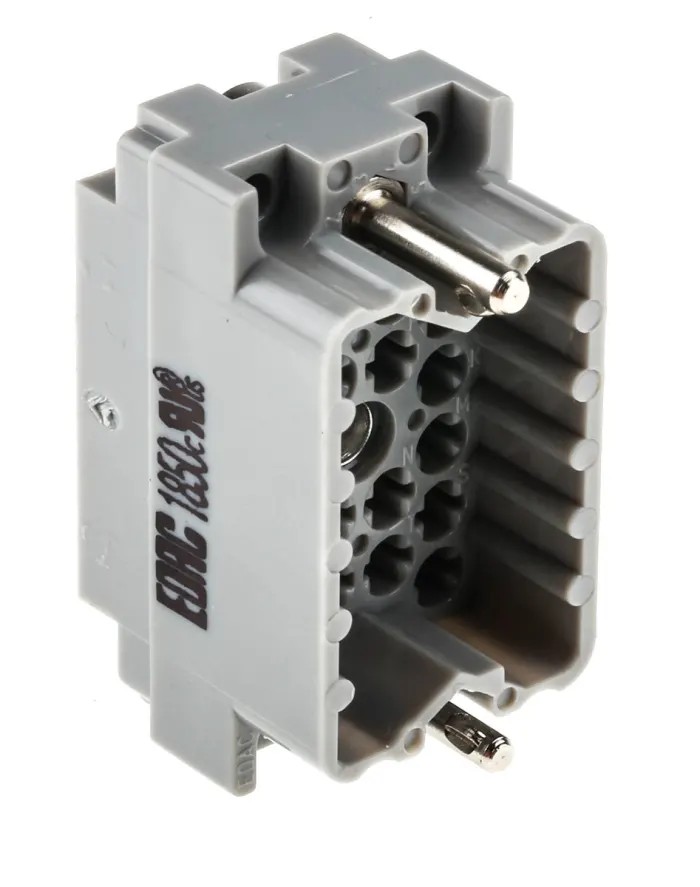

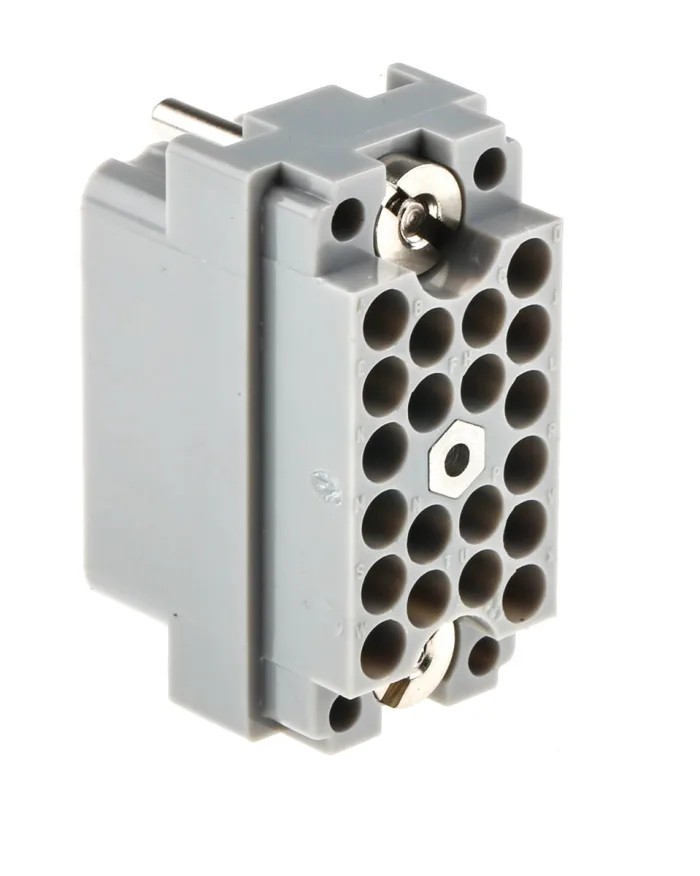

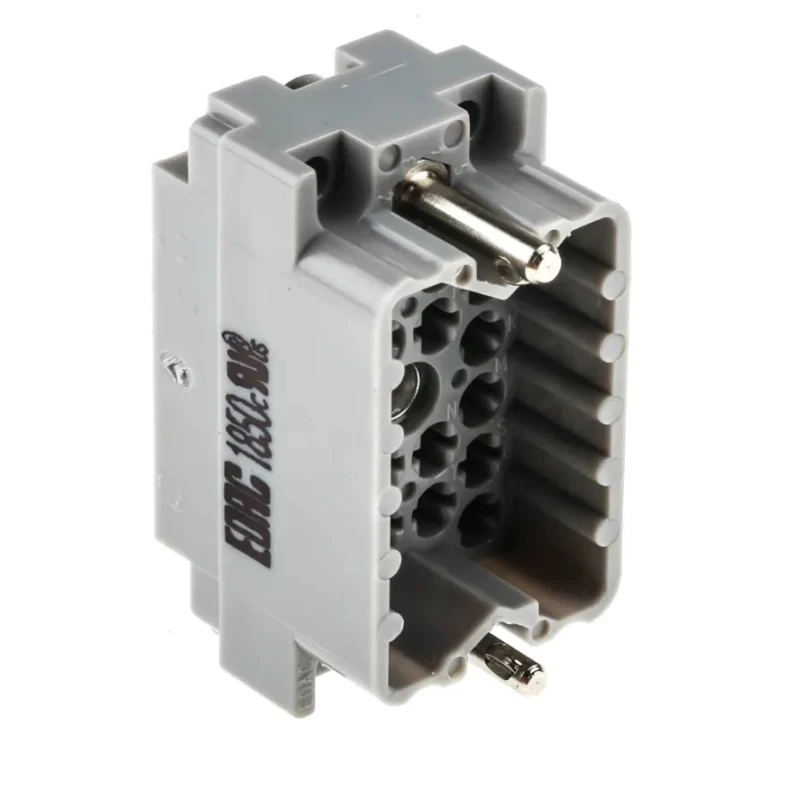

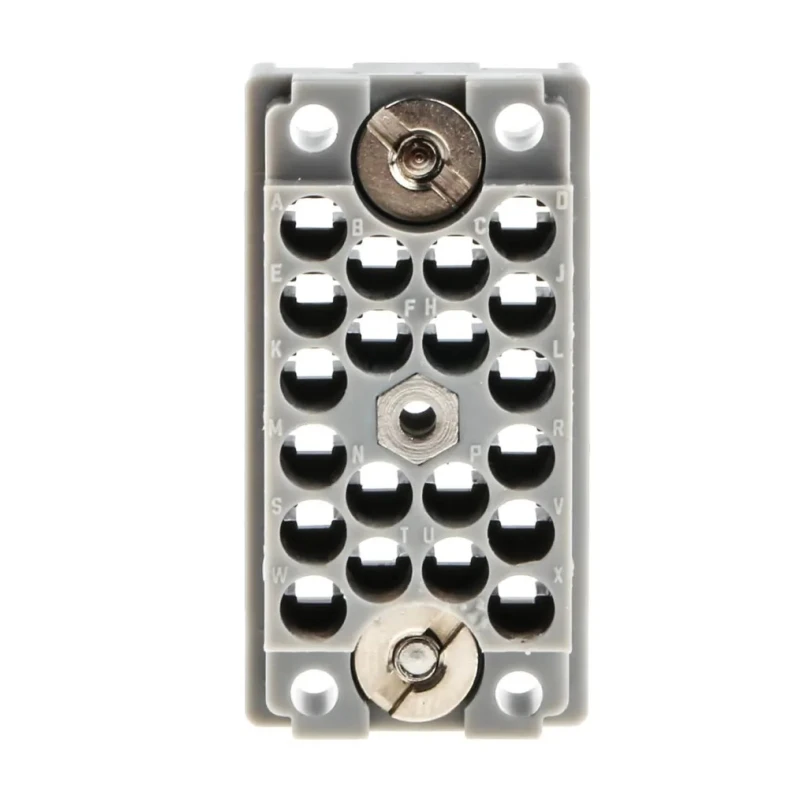

EDAC Heavy Duty Power Connector Straight Male 20 Way 8.5A Thermoplastic Housing 516-020-000-302

EDAC 516-020-000-302 Heavy Duty Power Connector is a robust, 20-way straight male connector with an 8.5A current rating and thermoplastic housing designed for panel mounting. It is engineered for reliable and secure connections in demanding industrial environments.

This connector features phosphor bronze contacts plated with gold, providing excellent electrical conductivity and long-lasting corrosion resistance. It is capable of operating in extreme temperatures ranging from -65°C to 105°C, making it suitable for harsh environmental conditions.

The termination method is crimp, facilitating easy and secure wire attachment. The connector's design includes an actuating screw for positive and stable engagement with corresponding receptacles, ensuring safety and high reliability.

As part of the 516 series, this connector is widely used in fields such as audio broadcast systems, railway signalling, oil and gas industry control systems, general industrial automation, and automotive control and test systems. It allows for flexible configuration by offering both plug and socket options in its high-density multi-pin system.

This connector features a thermoplastic housing that provides durability and resistance to environmental factors. Contacts are made of phosphor bronze and plated with gold for enhanced conductivity and corrosion resistance.

The connector operates reliably across a wide temperature range from -65°C to 105°C. Termination is by crimp, enabling secure and consistent electrical connections. It is part of the 516 series, suitable for industrial and control system applications requiring multi-pin cable-to-panel connections.

The connector is male gender with straight orientation, ensuring secure mating with compatible receptacles. No specific approvals or standards are listed, focusing on robust industrial use cases.

This product is essential for industrial, manufacturing, and control panel applications that demand secure, multi-contact power connections with high reliability and mechanical robustness. Its flexible design allows integration in various sectors including construction, transportation, and energy management.
