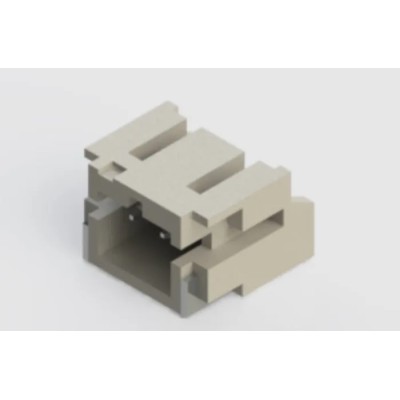

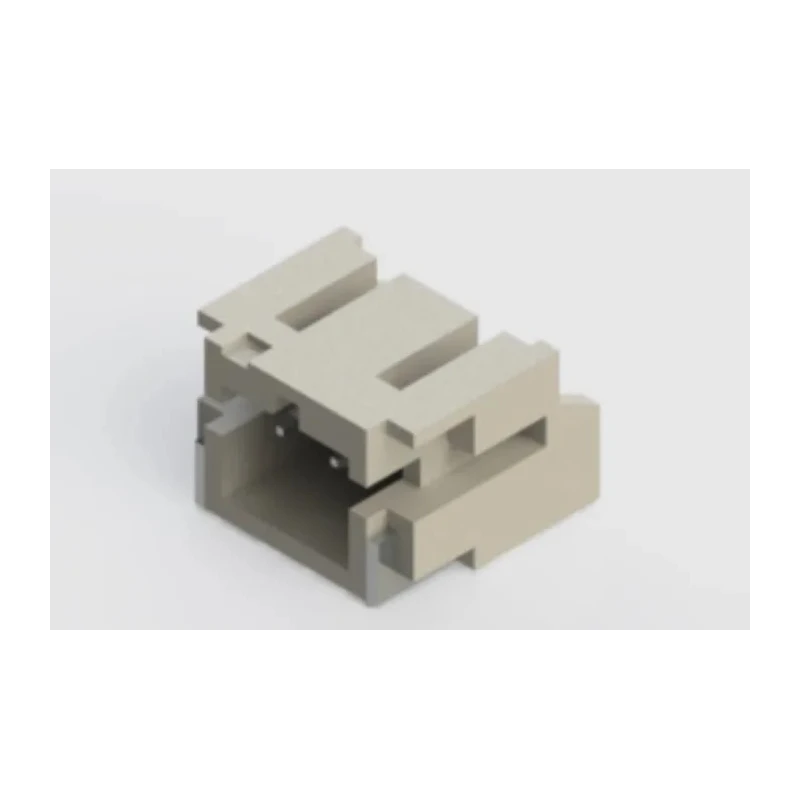

EDAC 140 Series Right Angle Surface Mount PCB Header, 2 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-502-417-060

EDAC 140-502-417-060 is a right angle surface mount PCB Header featuring 2 female contacts with a 2 mm pitch arranged in a single row. This shrouded connector is designed for high-density wire-to-board connection applications, providing reliable electrical contact and mechanical retention.

The housing is made from durable, flame-retardant Polyamide 9T, ensuring excellent insulation and safety under operational stresses. Brass contacts plated with tin provide strong conductivity and corrosion resistance.

Rated for a maximum current of 2A and voltage rating of 100V, this header supports operation in temperatures ranging from -40°C to 105°C. Its surface mount termination type enables robust solder connections directly onto the PCB, facilitating automated assembly processes.

The low profile right angle orientation suits compact electronic assemblies where board space optimization is essential. This component meets RoHS compliance, making it suitable for environmentally conscious industrial manufacturing.

Typical applications include embedded electronics, industrial control systems, instrumentation, and general PCB wiring where reliable, compact interconnection is required. Designed for high-density internal wire to PCB connections.

Shrouded female contacts with 2 mm pitch ensure secure mating. Right angle orientation for low profile and compact board layouts. Constructed with brass contacts plated with tin for reliable conductivity. Housing made of flame-retardant Polyamide 9T material.

Operates reliably from -40°C up to 105°C. Surface mount design enables efficient soldering to PCB pads. Supports a maximum current of 2A and voltage up to 100V. Compliant with RoHS environmental standards. Ideal for industrial electronic assemblies and PCB applications.
