EDAC 140 Series Right Angle Surface PCB Header 5 Contact 2 mm Pitch 1 Row Shrouded 140-505-417-060

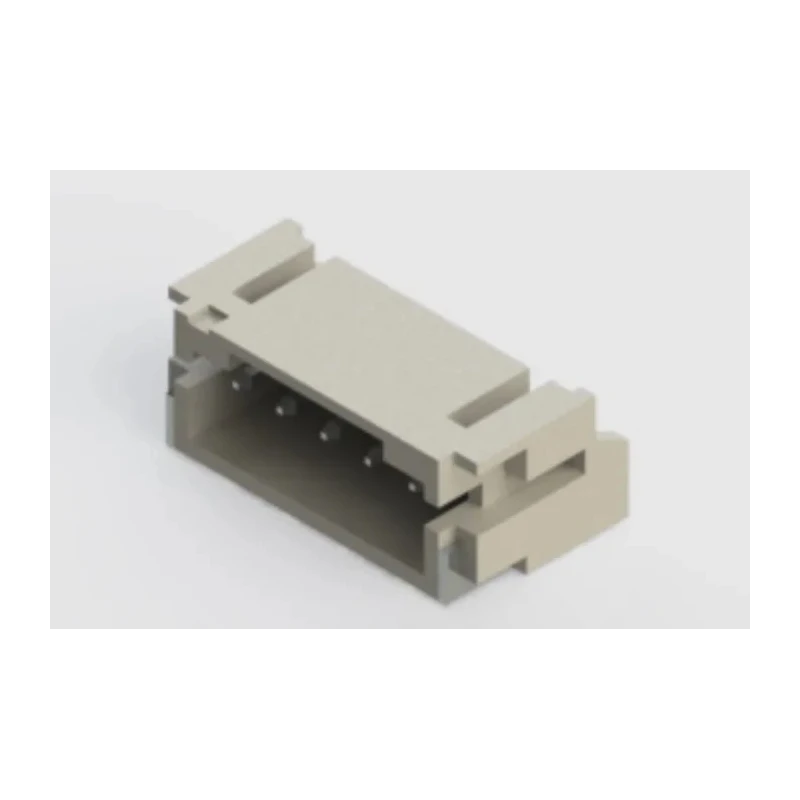

EDAC 140-505-417-060 is a right angle surface mount PCB header with 5 female contacts spaced at 2 mm pitch in a single row configuration. It is part of the EDAC 140 Series known for high-density and reliable connectivity solutions.

The housing is made of durable Polyamide 9T material providing excellent insulation and mechanical strength with a shrouded design to prevent accidental contact and enhance durability. The brass contacts plated with tin ensure good conductivity and corrosion resistance. The termination type is solder, making it compatible with standard PCB assembly processes.

This connector supports a current of 2A and withstands voltages up to 100V with an operating temperature range from -40°C to 105°C, suitable for demanding industrial environments. It offers an insulation resistance of at least 1000 megaohms to ensure signal integrity and reliability.

The connector system is wire-to-board designed for side entry to facilitate efficient board layout and assembly. It is RoHS compliant, adhering to environmental and safety standards.

Typical applications include electronics manufacturing, telecommunications equipment, industrial controllers, and embedded systems requiring compact, dependable PCB connections. The connector series is 140 for standardized compatibility.

Features 5 female contacts with 2 mm pitch for precise signal connections. Right angle orientation optimizes PCB space utilization. Shrouded housing enhances safety and durability. Supports 2A current and 100V voltage rating for robust performance.

Polyamide 9T housing material provides high temperature tolerance and insulation. Explore more PCB Headers and connectors on EnvMart for your electronics project and manufacturing needs.
