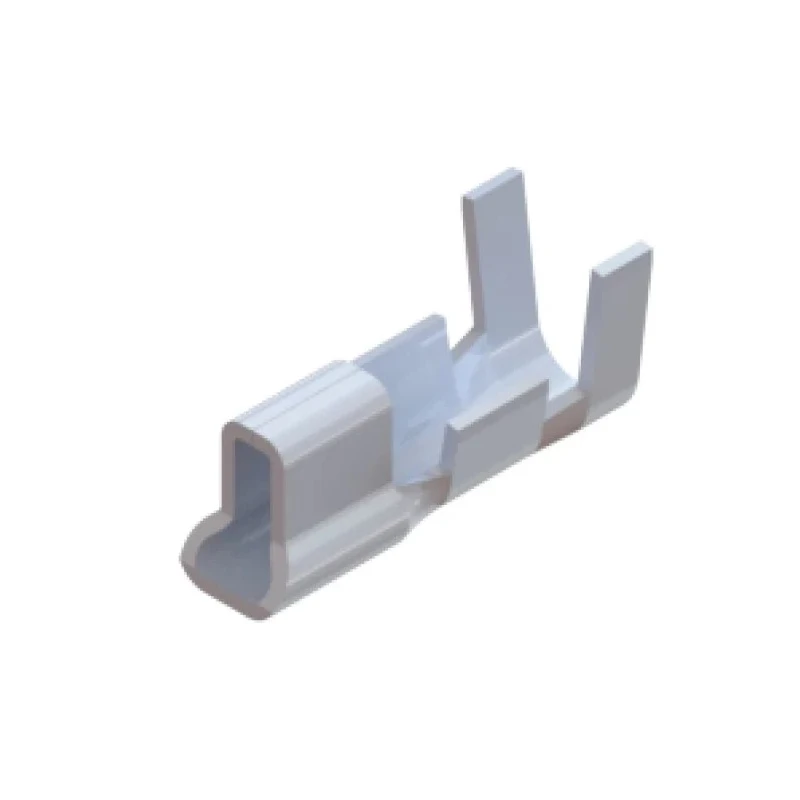

EDAC 140 Series Female Crimp Contact Crimp Connector Housing Tin over Nickel Phosphor Copper 140-941-290

EDAC 140-941-290 Female Crimp Contact Crimp is a high-quality connector contact designed for internal wire to PCB connections in electronic equipment. The product is part of the EDAC 140 series, which features a compact 2.0 mm pitch crimp-style female contact ideal for high-density configurations.

Constructed from phosphor copper, the contact provides excellent electrical conductivity and mechanical strength. The contact plating uses tin over nickel, delivering durable corrosion resistance and reliable performance under varied environmental conditions.

This crimp contact is engineered to operate within temperatures ranging from -40°C to 105°C, making it suitable for use in industrial, commercial, and consumer electronic applications where rigorous temperature stability is essential.

Termination is by crimp, which ensures a secure and stable electrical connection to wires sized from 24 to 30 AWG. The side entry configuration allows easy insertion into compatible EDAC 140 series connector housings, optimizing the layout for printed circuit boards (PCBs) requiring space-efficient, reliable connections.

With a minimum insulation resistance of 1000 megaohms, this contact ensures excellent electrical isolation and minimizes leakage currents, enhancing system safety. The product meets no specific formal standards or approvals but adheres to EDAC's quality control benchmarks.

Constructed of phosphor copper material for high conductivity. Tin over nickel plating offers corrosion resistance. Suitable for wire sizes 24 to 30 AWG. Operating temperature range from -40°C to 105°C. Side entry 2.0 mm pitch design for PCB connector housing.

Crimp termination for secure wire attachment. High insulation resistance at 1000 megaohms minimum. Ideal for industrial, laboratory, and commercial electronics assembly.

EDAC's 140 series female crimp contacts are widely used in electronic component manufacturing, power connectors, telecommunications, and other applications needing reliable wire-to-board connections. Its design supports compact equipment assembly and long-term durability.
