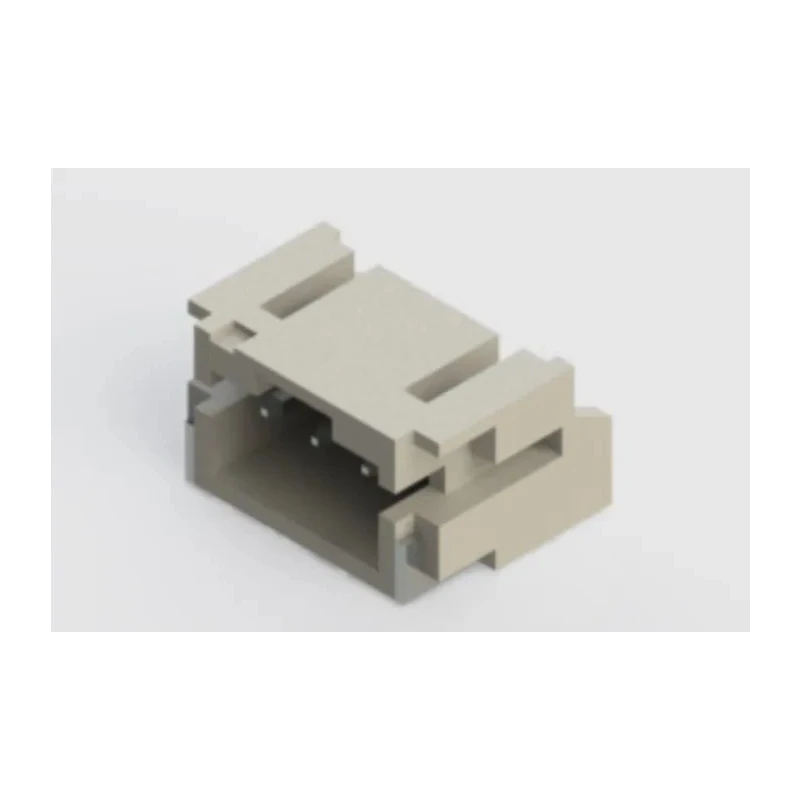

EDAC 140 Series Right Angle Surface PCB Header with 3 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-503-417-060

EDAC 140-503-417-060 is a premium right angle surface mount PCB header connector engineered for electronic component assemblies requiring reliable wire-to-board connections. This model features a 3-contact design with a 2 mm pitch and a single-row layout, optimized for compact, high-density PCB configurations.

The connector housing is made from polyamide 9T material, providing robust insulation and mechanical strength, and is shrouded to protect contacts and ensure secure connection integrity. The contacts are crafted from brass and plated with tin, delivering excellent conductivity and resistance to corrosion.

Designed for surface mount solder termination, this component facilitates efficient assembly on printed circuit boards with enhanced durability and consistent electrical performance. Operating reliably across a temperature range of -40°C to +105°C, it suits diverse industrial, commercial, and laboratory electronic applications.

Electrical specifications include a current rating of 2 amperes and a voltage rating of 100 volts, making it suitable for a wide variety of power and signal transmission tasks. The right angle orientation supports design flexibility where vertical space is limited.

Polyamide 9T shrouded housing ensures durability and electrical insulation. Brass contacts with tin plating provide excellent conductivity and corrosion resistance. Surface mount type with solder termination allows seamless PCB integration.

Wide operating temperature range from -40°C to +105°C enables use in harsh environments. Rated for 2A current and 100V voltage, ensuring stable electrical performance. Right angle orientation supports space-efficient PCB designs.

Compliant with RoHS standards, minimizing environmental impact. 3 contacts with 2 mm pitch and single row suitable for high-density board layouts.

This PCB Header is widely used in electronics manufacturing, industrial automation, communication equipment, and instrumentation. It enables stable wire-to-board connections essential for reliable device operation.
